InteliLite4 AMF20 Global Guide
179

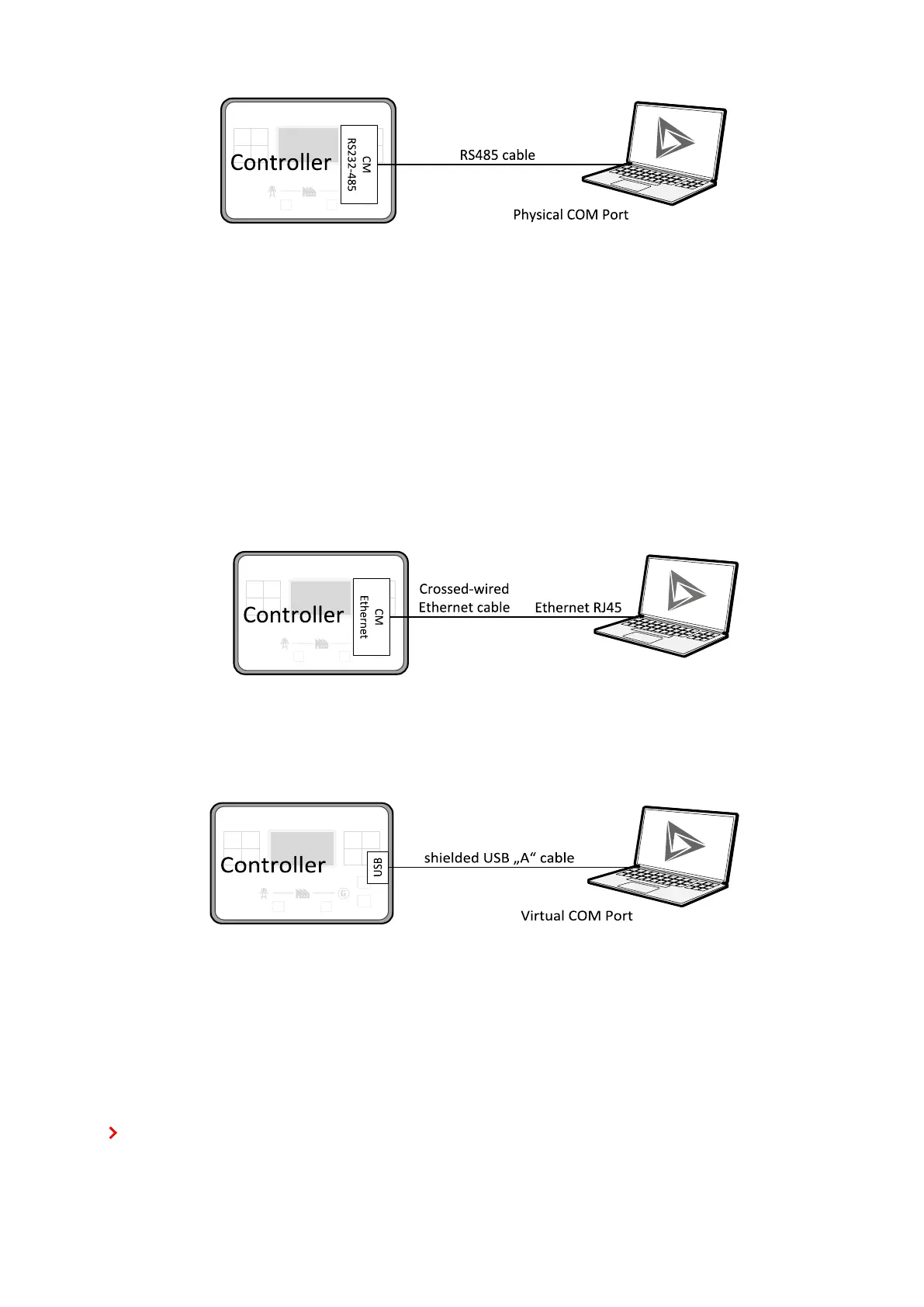

Image 6.3 Plug-in module CM RS232-485 is used
Connection via Ethernet
A plug-in communication module CM3-Ethernet is necessary for Ethernet connection.
The module is plugged into the slot located on the rear side of the controller. To find more information about
installation of the modules see Plug-in module installation on page 58.
This connection type is used for communication with the controller from InteliConfig or any other PC tool. This
connection can be used regardless of whenever the AirGate is switched on or off. Only three remote clients
can be connected at the same time (via AirGate only two remote clients at the same time). Eight remote
clients can be connected at the same time (six direct IP clients and two AirGate clients).
To connect your PC tool to the controller use the INTERNET connection type and just put the CM3-Ethernet
IP address into the Gen-set address box in the PC tool.
Image 6.4 Ethernet cable is used
Connection via USB
USB interface uses HID profile.
Image 6.5 Shielded USB type A cable is used
6.1.2 Remote communication
Ethernet LAN connection
Direct IP LAN connection is intended to be used if the CM3-Ethernet module is reachable from the client
computer by specifying the IP address at which the module can be contacted.
If direct IP connection is to be used within a local network the CM3-Ethernet must have static IP address in
the respective local network.
