D-Link DGS-1210-52 User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
1
1
0
0
9
9

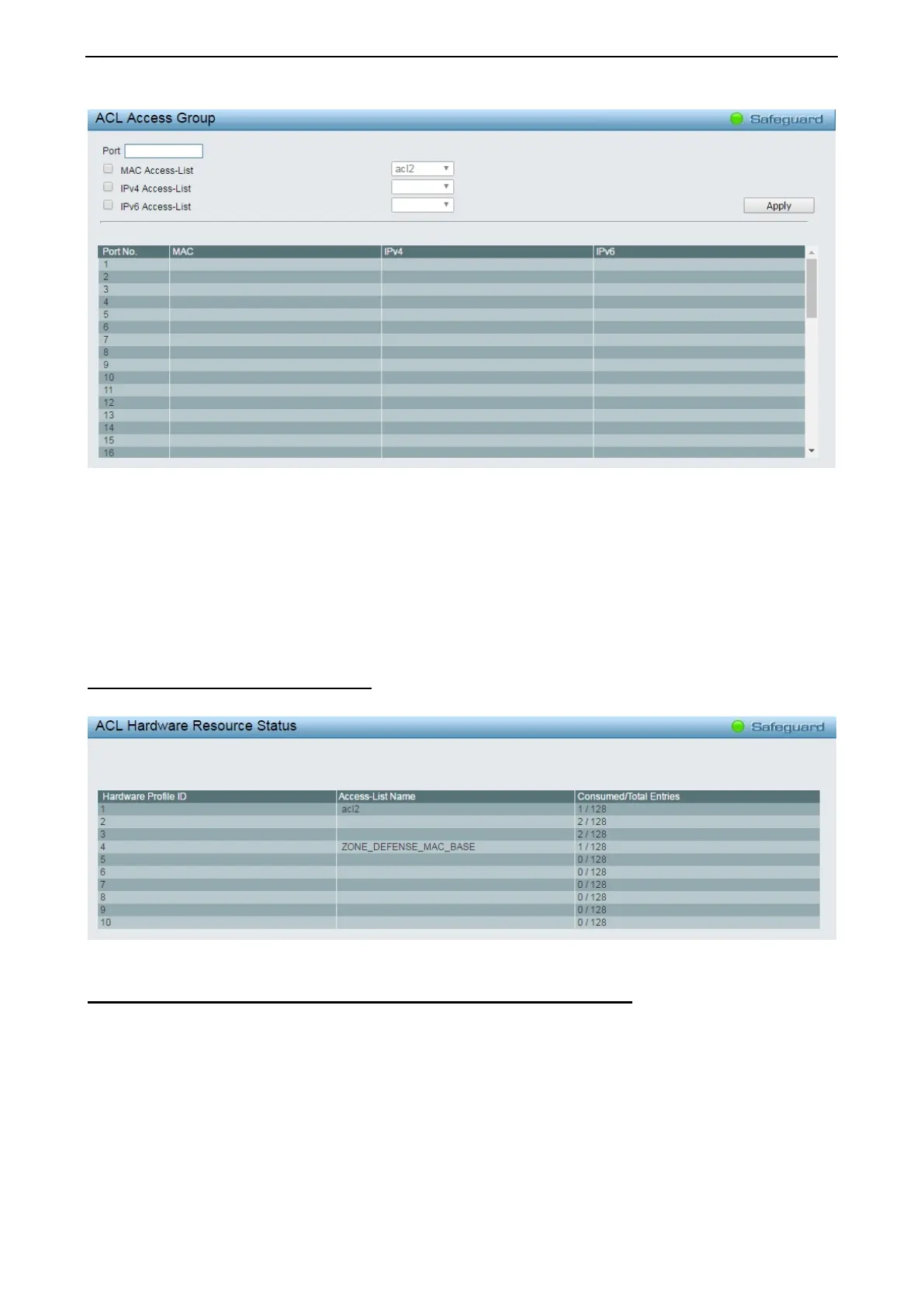

Figure 4.138 - ACL > ACL Access Group
Port: Specifies the ports to be added in the access list group.
MAC Access-List: Add the specified ports in the MAC access list group.
IPv4 Access-List: Add the specified ports in the IPv4 access list group.
IPv6 Access-List: Add the specified ports in the IPv6 access list group.
Click the Apply button to implement changes made..
ACL > ACL Hardware Resource Status
The ACL Hardware Resource Status page displays the information of ACL Hardware Resource status.
Figure 4.139 - ACL > ACL Hardware Resource Status
PoE > PoE Global Settings (only for DGS-1210-10P/10MP/28P/28MP/52MP)
This page will display the PoE status including System Budget Power, Support Total Power, Remainder
Power, and The ratio of system power supply.

D-Link DGS-1210-52 Specifications

General

Switching Capacity	104 Gbps
MAC Address Table Size	16K entries
Power Supply	100 to 240 VAC, 50/60 Hz internal universal power supply
Managed	Yes
PoE	No
Humidity	5% to 95% non-condensing
VLANs	4K
Jumbo Frame	9216 Bytes
Dimensions	440 x 44 mm
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p
Ports	48 x 10/100/1000BASE-T, 4 x SFP
