D-Link DGS-1210-52 User Manual

1 Product Introduction D-Link Smart Managed Switch User Manual
1
1
3
3
NOTE: On the DGS-1210-52MP, the MiniGBIC ports are shared
with normal RJ-45 ports 49T, 50T, 51T and 52T. When the
MiniGBIC port is used, the RJ-45 port cannot be used.
CAUTION: The MiniGBIC ports should use UL
listed Optical
Transceiver product, Rated Laser Class I. 3.3Vdc.
CAUTION: The port 1 ~ port 48 are PoE ports. When user press
the Mode button to PoE mode, only port 1 ~ port 48 will light up.
CAUTION: This equipment can
be connected only to PoE
networks without routing to the outside plant.
NOTE: Once user enter in loader mode, you can use DNA tool
(standalone version 2.0.2.4 only (No support by Chrome
DNA3.x.x.x)) to download the image or call D-
Link Technical
Support for further help.

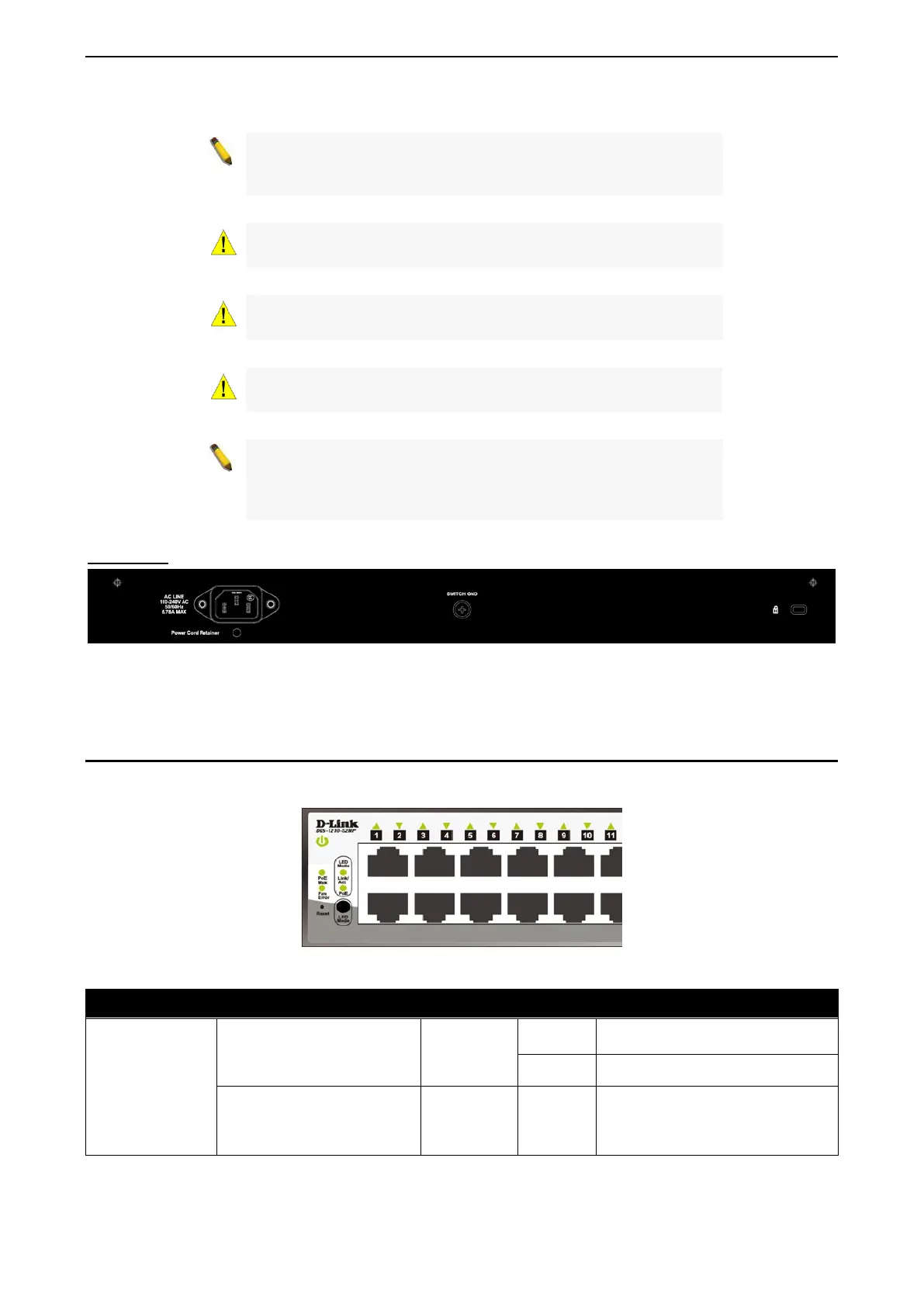

Rear Panel
Figure 1.20 – DGS-1210-52MP Rear Panel
Power: Connect the supplied AC power cable to this port.
LED Indicators
The Switch supports LED indicators for Power, Fan, and Link/Act for each port. The following shows the LED
indicators for the DGS-1210 series Smart Managed Switch along with an explanation of each indicator.
Figure 1.21 –LED Indicators on DGS-1210 series
Location LED Indicative Color Status Description
Per Device
Power
Green
Solid Light Power on.
Light off Power off.
Fan Error
(For DGS-1210-
28P/28MP/52MP)
Red Solid light
The fan has runtime failure and is
brought offline.

D-Link DGS-1210-52 Specifications

General

Switching Capacity	104 Gbps
MAC Address Table Size	16K entries
Power Supply	100 to 240 VAC, 50/60 Hz internal universal power supply
Managed	Yes
PoE	No
Humidity	5% to 95% non-condensing
VLANs	4K
Jumbo Frame	9216 Bytes
Dimensions	440 x 44 mm
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p
Ports	48 x 10/100/1000BASE-T, 4 x SFP
