D-Link DGS-1210-52 User Manual

5 Surveillance Mode Configuration D-Link Smart Managed Switch User Manual
134

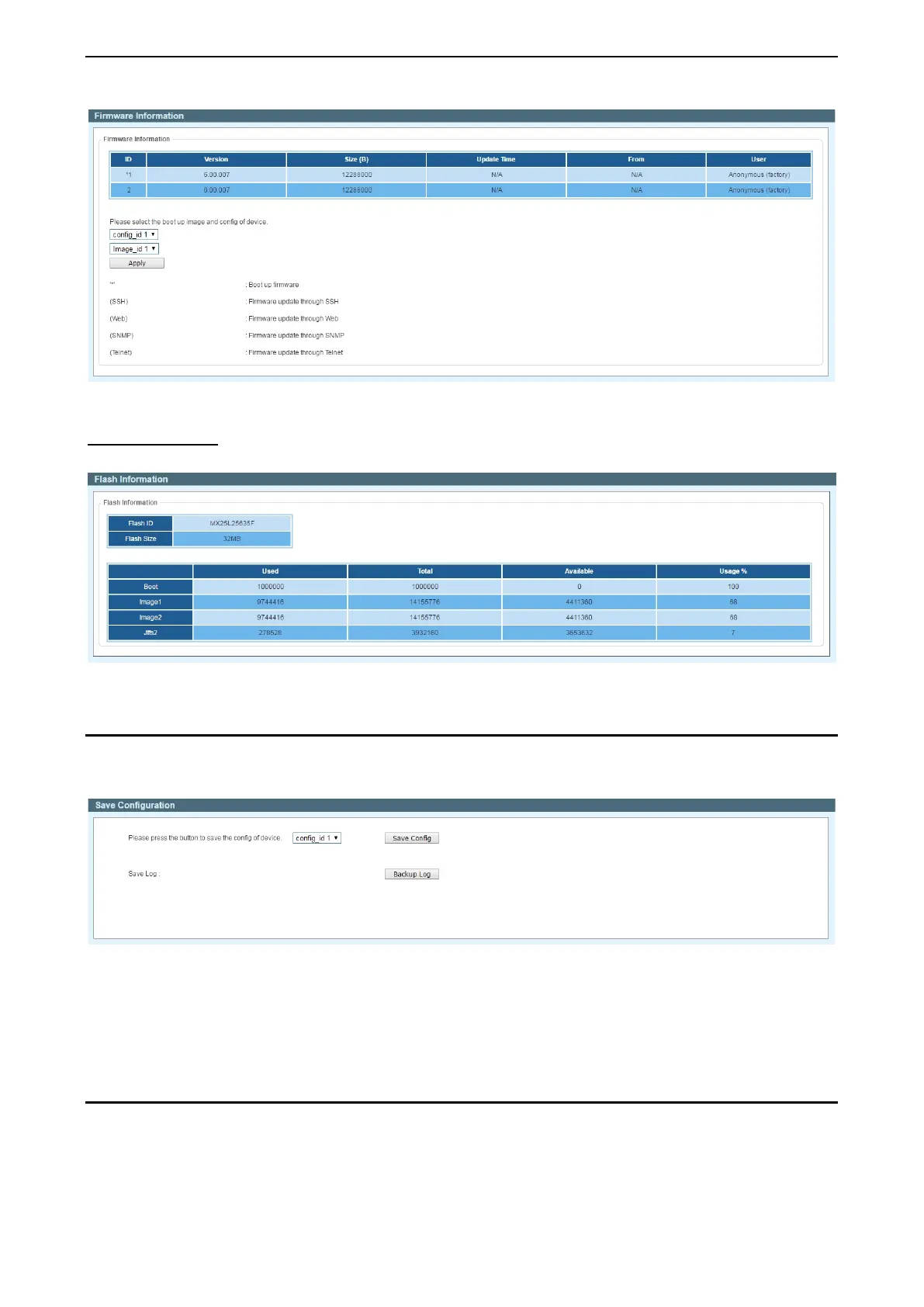

Figure 5.23 – Surveillance Mode > Tools Menu > Firmware Information
Flash Information
The Flash Information displays the flash detail information of the Switch.
Figure 5.24 – Surveillance Mode > Tools Menu > Flash Information
Tool Bar > Save
Select to save the entire configuration changes to configuration ID 1 or 2 you have made to the device to
switch’s non-volatile RAM. Or save the log entries to your local drive and a pop-up message will prompt you
for the file path. You can view or edit the log file by using text editor (e.g. Notepad).
Figure 5.25 – Surveillance Mode > Save
Specifies the configuration ID 1 or 2 to be saved and click the Save Config button to implement changes
made.
Click the Backup Log button to save the current settings to your disk.
Tool Bar > Help
By clicking the Wizard button to access the built-in Surveillance Help window.

D-Link DGS-1210-52 Specifications

General

Switching Capacity	104 Gbps
MAC Address Table Size	16K entries
Power Supply	100 to 240 VAC, 50/60 Hz internal universal power supply
Managed	Yes
PoE	No
Humidity	5% to 95% non-condensing
VLANs	4K
Jumbo Frame	9216 Bytes
Dimensions	440 x 44 mm
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p
Ports	48 x 10/100/1000BASE-T, 4 x SFP
