5 Surveillance Mode Configuration
When you complete the Surveillance Mode Smart Wizard, you will be presented with the following screen:

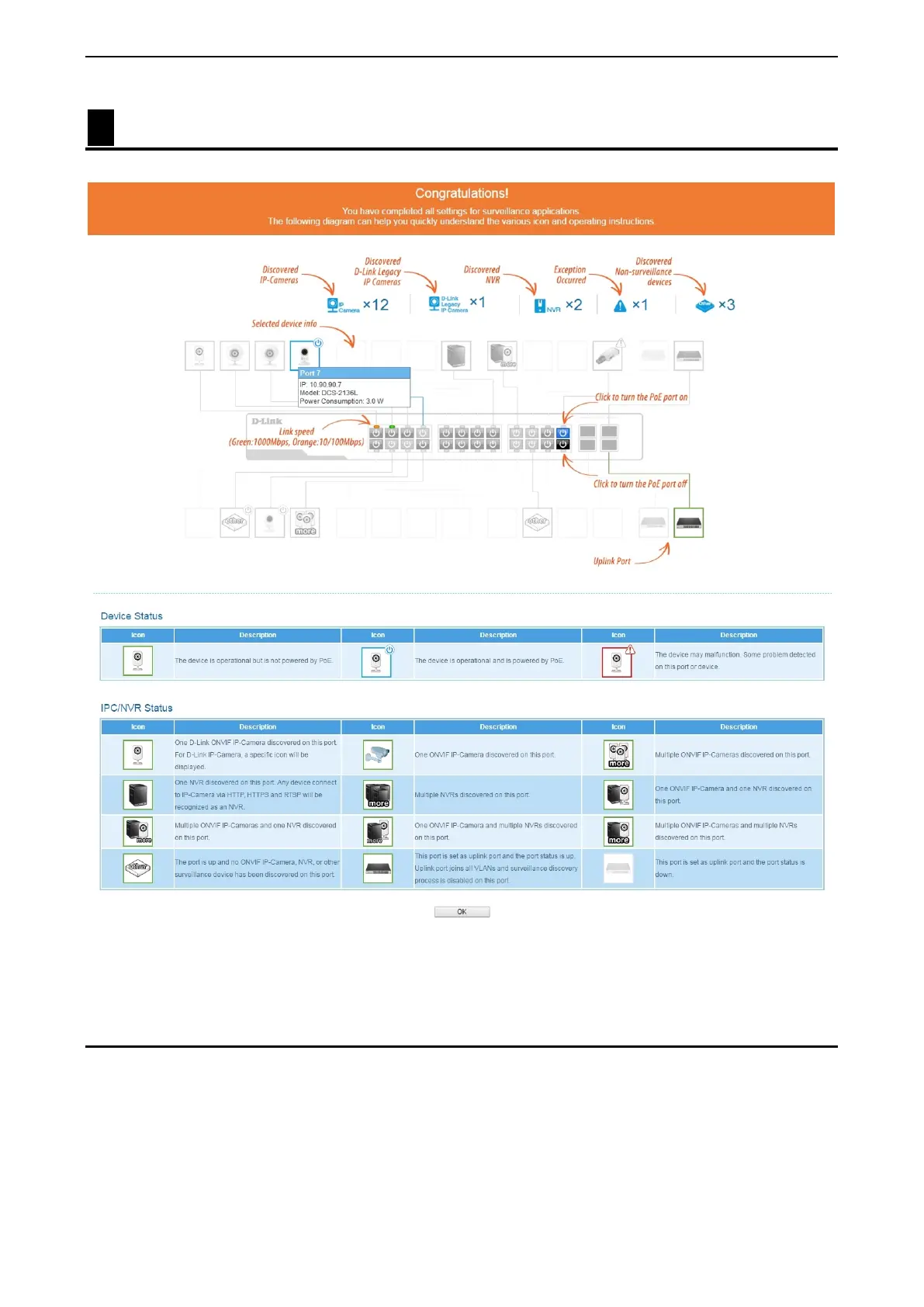

Figure 5.1 – Surveillance Mode Congratulations window
Click OK button to continue to the Web UI.
Web User Interface
Before enter the Web User interface, the pop-up dialog will be shown as below. Click OK to enter the Web
user interface.

D-Link DGS-1210-52 Specifications

General

Switching Capacity	104 Gbps
MAC Address Table Size	16K entries
Power Supply	100 to 240 VAC, 50/60 Hz internal universal power supply
Managed	Yes
PoE	No
Humidity	5% to 95% non-condensing
VLANs	4K
Jumbo Frame	9216 Bytes
Dimensions	440 x 44 mm
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p
Ports	48 x 10/100/1000BASE-T, 4 x SFP
