D-Link DGS-1210-52 User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
78

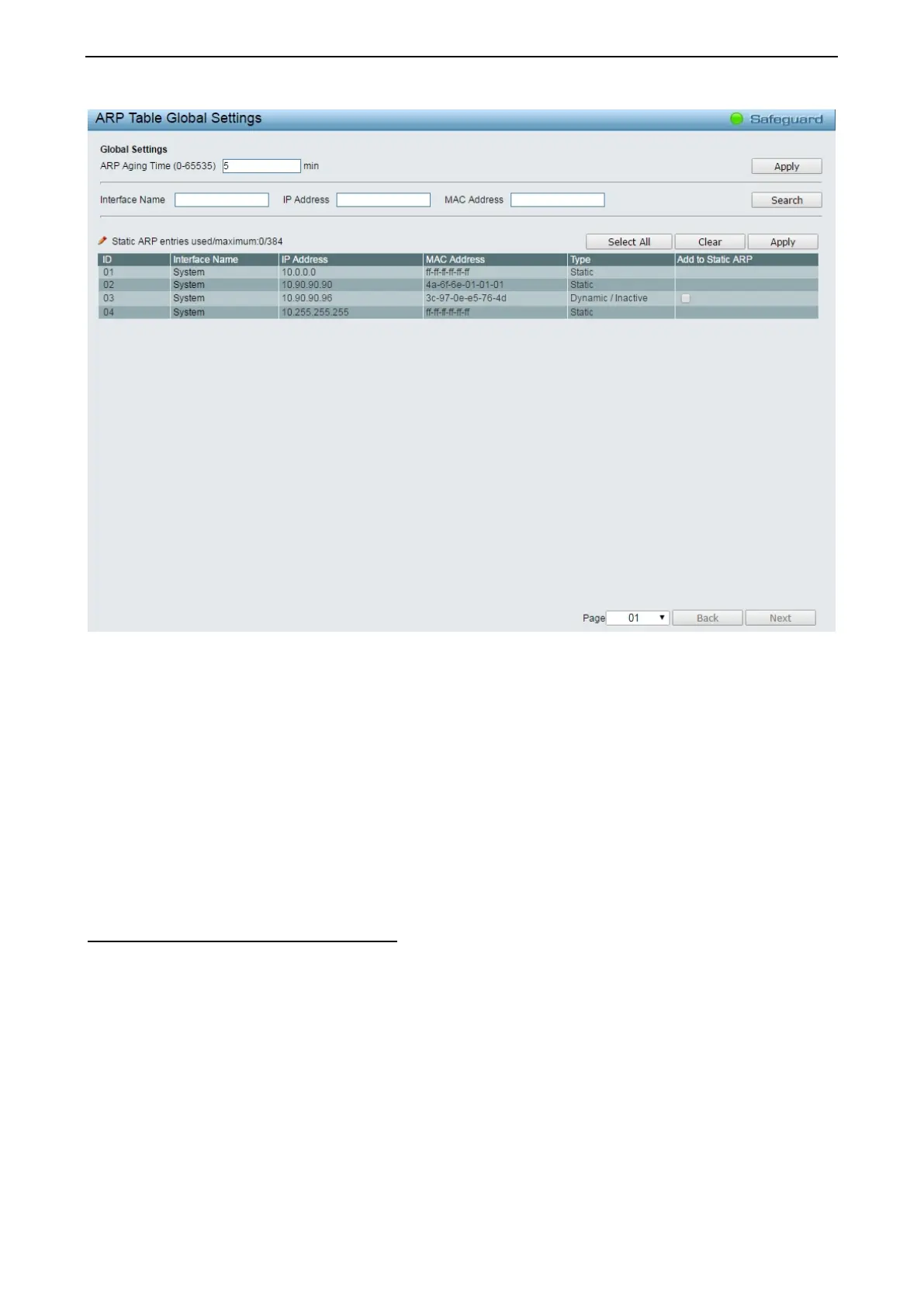

Figure 4.95 – L3 Functions > ARP > ARP Table Global Settings
Global Settings:
ARP Aging Time (0-65535): Specifies the ARP entry age-out time, in minutes. The default is 5 minutes.
Interface Name: Enter or view the Interface name used.
IP Address: Enter or view the IP Address used.
MAC Address: Enter or view the MAC address used.
Click the Search button to locate a specific entry based on the information entered.
Click the Select All button to
Click the Clear button to remove the entry listed in the table.
L3 Functions > ARP > Static ARP Settings
The Address Resolution Protocol is a TCP/IP protocol that converts IP address into physical addresses. The
table allows network managers to view, define, modify, and delete ARP information for specific devise. Static
entries can be defined in the ARP table. When static entries are defined, a permanent entry is entered and is
used to translate IP addresses to MAC addresses.

D-Link DGS-1210-52 Specifications

General

Switching Capacity	104 Gbps
MAC Address Table Size	16K entries
Power Supply	100 to 240 VAC, 50/60 Hz internal universal power supply
Managed	Yes
PoE	No
Humidity	5% to 95% non-condensing
VLANs	4K
Jumbo Frame	9216 Bytes
Dimensions	440 x 44 mm
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p
Ports	48 x 10/100/1000BASE-T, 4 x SFP
