4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
7
7
9
9

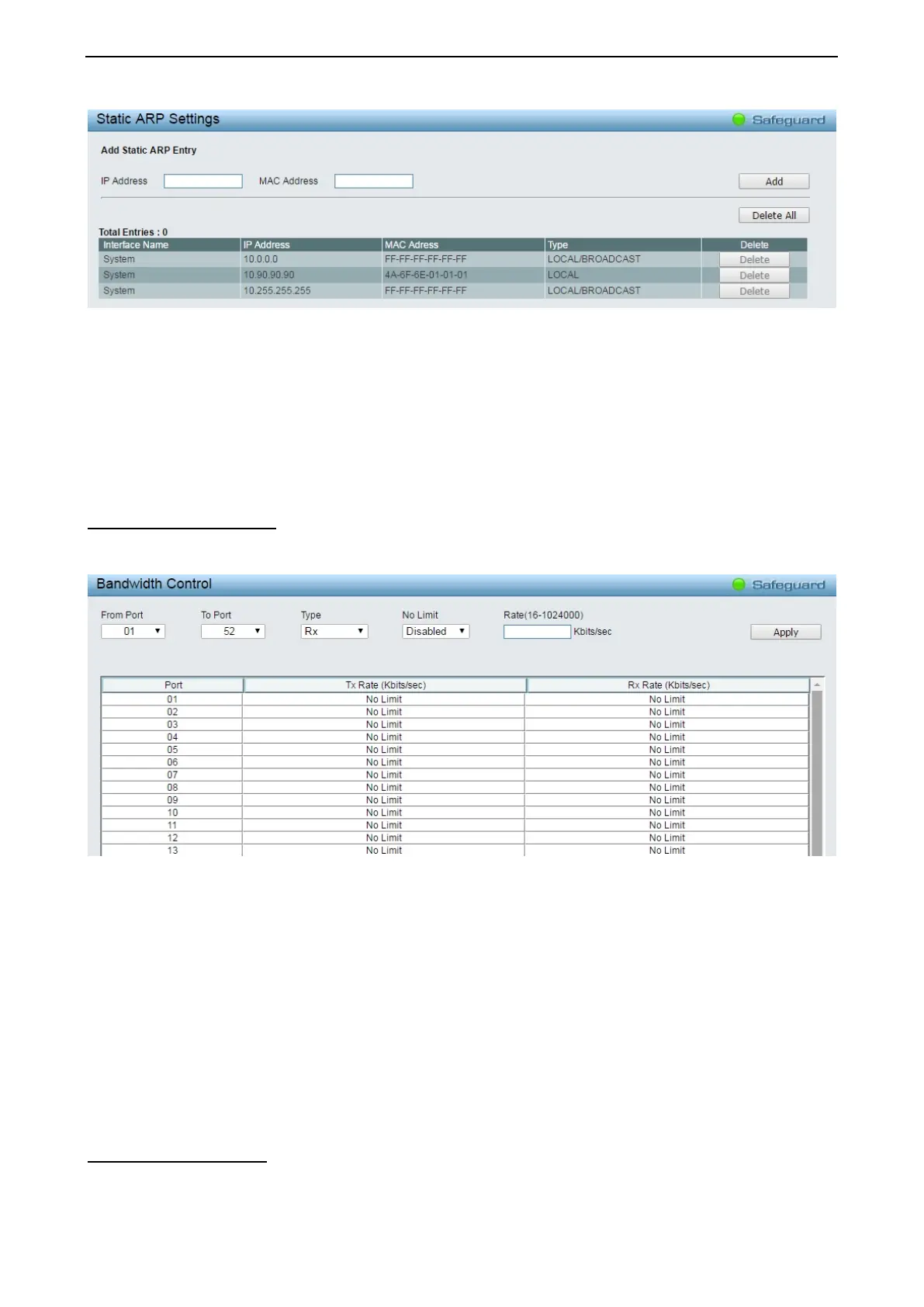

Figure 4.96 – L3 Functions > ARP > Static ARP Settings
IP Address: Specifies the IP address.
MAC Address: Specifies the MAC address.
Click the Add button to create a static ARP entry.
Click the Delete All button to remove all the entries listed
Click the Delete button to remove the specific entry.
QoS > Bandwidth Control
The Bandwidth Control page allows network managers to define the bandwidth settings for a specified port’s
transmitting and receiving data rates.
Figure 4.97 – QoS > Bandwidth Control
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
Type: This drop-down menu allows you to select between RX (receive), TX (transmit), and Both. This
setting will determine whether the bandwidth ceiling is applied to receiving, transmitting, or both
receiving and transmitting packets.
No Limit: This drop-down menu allows you to specify that the selected port will have no bandwidth limit.
Enabled disables the limit.
Rate (64-1024000): This field allows you to enter the data rate, in Kbits per second, will be the limit for the
selected port. The value is between 64 and 1024000.
Click Apply to set the bandwidth control for the selected ports.
QoS > 802.1p/DSCP/ToS
QoS is an implementation of the IEEE 802.1p standard that allows network administrators to reserve
bandwidth for important functions that require a larger bandwidth or that might have a higher priority, such as
