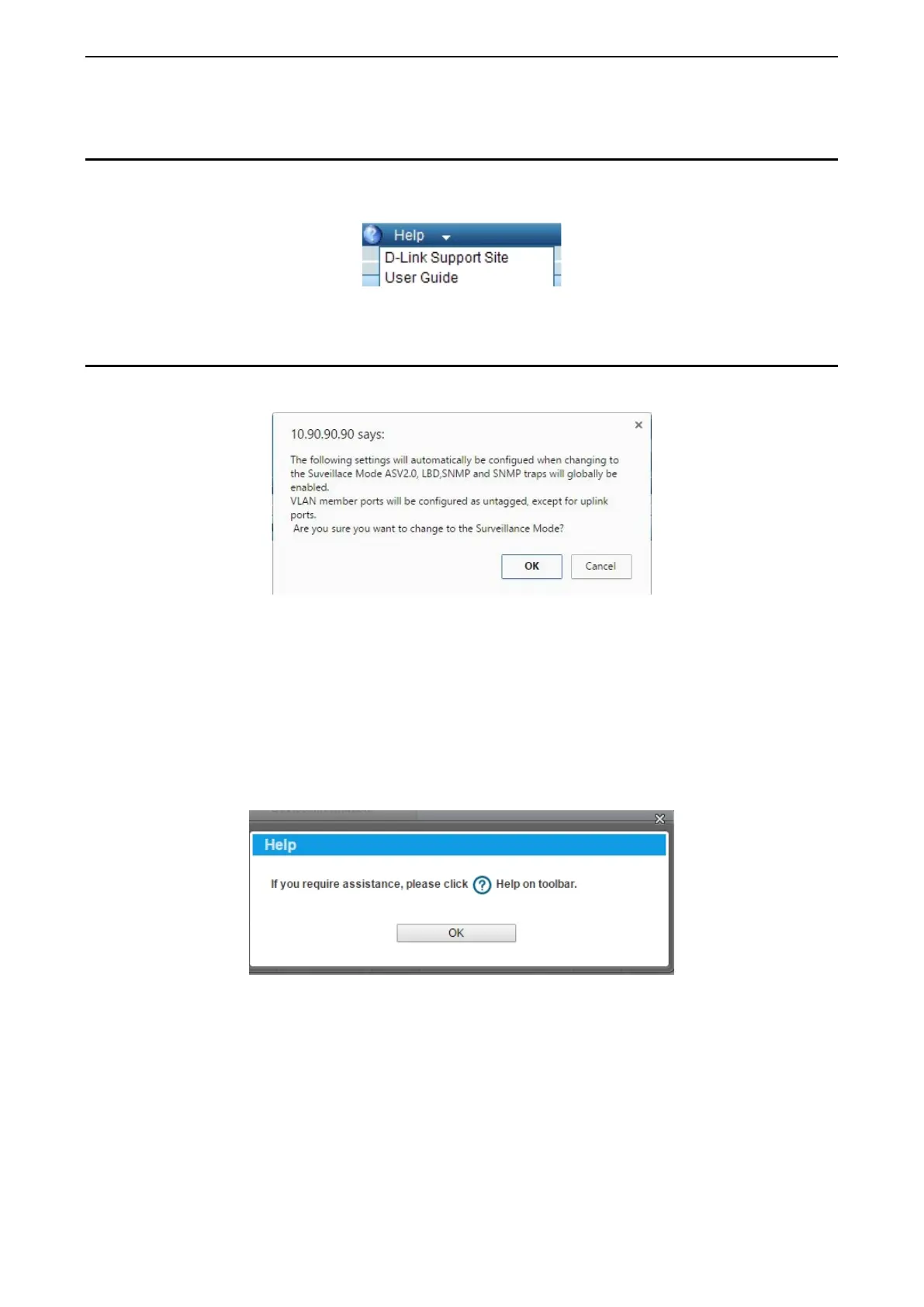

Tool Bar > Online Help
The Online Help provides two ways of online support: D-Link Support Site will lead you to the D-Link
website where you can find online resources such as updated firmware images; User Guide can offer an
immediate reference for the feature definition or configuration guide.
Figure 4.17 – Online Help
Tool Bar > Surveillance Mode
By clicking the Surveillance Mode button to access the Surveillance Mode Web UI on the Switch. After
clicking the Surveillance Mode option in the Toolbar, the following pop-up window will appear.
Figure 4.18 – Survillance Mode Confirmation Message
The pop-up message window above displays a message that mentioned configurations need to be changed
when access to the Surveillance Mode is given.
Click the OK button to continue.
Click the Cancel button and return to the Standard Mode.
After successfully switching to the Surveillance Mode on the Web UI of the Switch, the following window will
be presented.
Figure 4.19 – Survillance Mode Help Message
Click the OK button to continue, the following page will be presented.

D-Link DGS-1210-52 Specifications

General

Switching Capacity	104 Gbps
MAC Address Table Size	16K entries
Power Supply	100 to 240 VAC, 50/60 Hz internal universal power supply
Managed	Yes
PoE	No
Humidity	5% to 95% non-condensing
VLANs	4K
Jumbo Frame	9216 Bytes
Dimensions	440 x 44 mm
Operating Temperature	0 to 50 °C (32 to 122 °F)
Storage Temperature	-40 to 70 °C (-40 to 158 °F)
Standards Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p
Ports	48 x 10/100/1000BASE-T, 4 x SFP
