4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
36

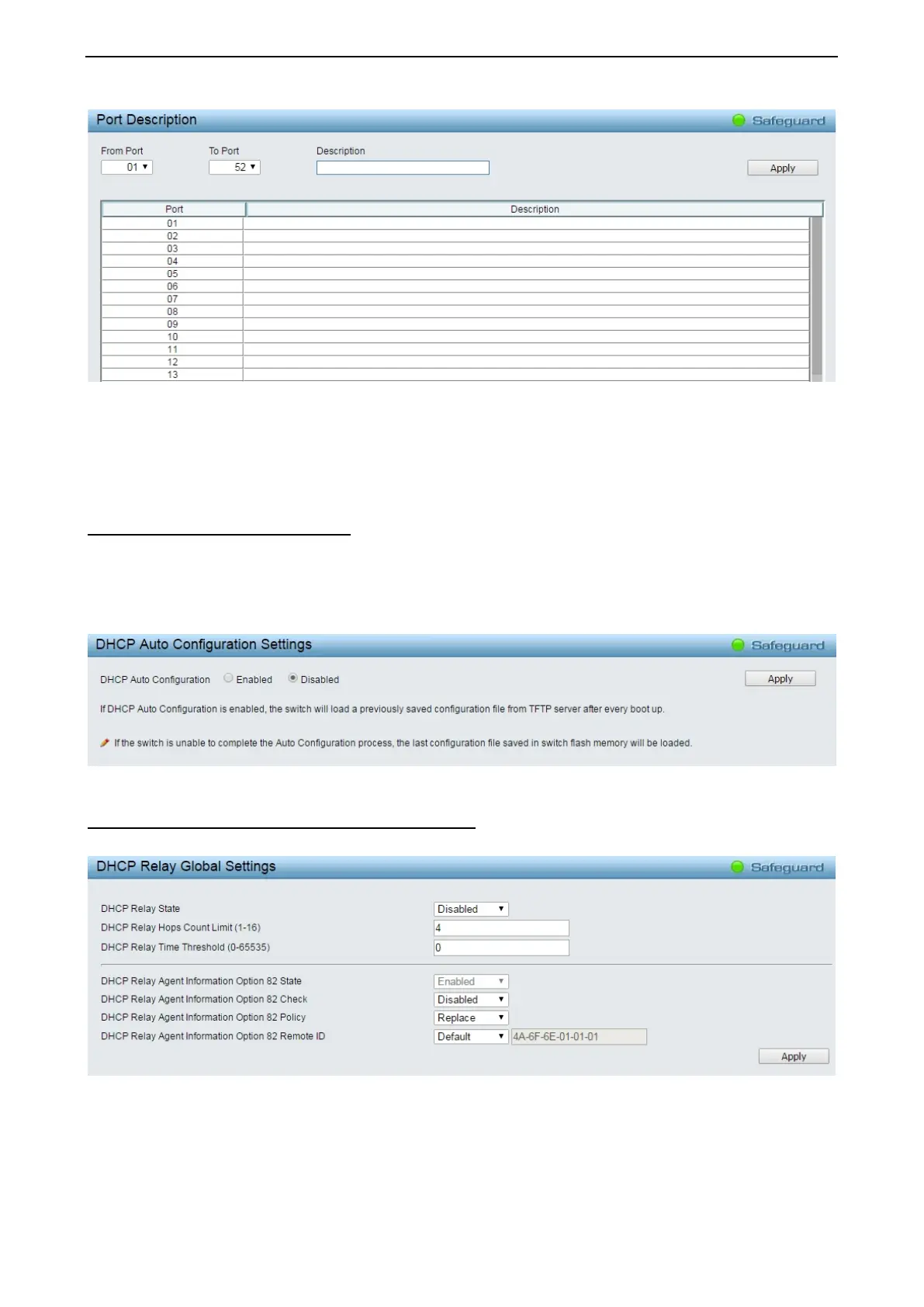

Figure 4.26 – System > Port Description
From Port / To Port: Specifies the range of ports to describe.
Description: Specifies the description for the chosen ports.
Click Apply to set the description in the table.
System > DHCP Auto Configuration
This page allows you to enable the DHCP Auto Configuration feature on the Switch. When enabled, the
Switch becomes a DHCP client and gets the configuration file from a TFTP server automatically on next boot
up. To accomplish this, the DHCP server must deliver the TFTP server IP address and configuration file
name information in the DHCP reply packet. The TFTP server must be up and running and store the
necessary configuration file in its base directory when the request is received from the Switch.
Figure 4.27 – System > DHCP Auto Configuration
System > DHCP Relay > DHCP Relay Global Settings
User can enable and configure DHCP Relay Global Settings on the Switch.
Figure 4.28 – System > DHCP Relay > DHCP Relay Global Settings
DHCP Relay State: This field can be toggled between Enabled and Disabled using the pull-down menu. It is
used to enable or disable the DHCP Relay service on the Switch. The default is Disabled.
DHCP Relay Hops Count Limit (1-16): This field allows an entry between 1 and 16 to define the maximum
number of router hops DHCP messages can be forwarded across. The default hop count is 4.
