D-Link DIR-815/AC User Manual

DIR-815/AC Wireless AC1200 Dual Band Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
Creating 3G WAN Connection
If the PIN code check is enabled for the SIM card inserted into your USB modem, then prior to
creating a 3G WAN connection, go to the USB modem menu and enter the PIN code on the page
displayed (see the USB Modem section, page 155). Then go to the Connections Setup / WAN
page and click the Add button in the Connections List section. On the opened page, go to the
All Settings tab. Then select the relevant value from the Connection Type drop-down list and
specify the needed values.

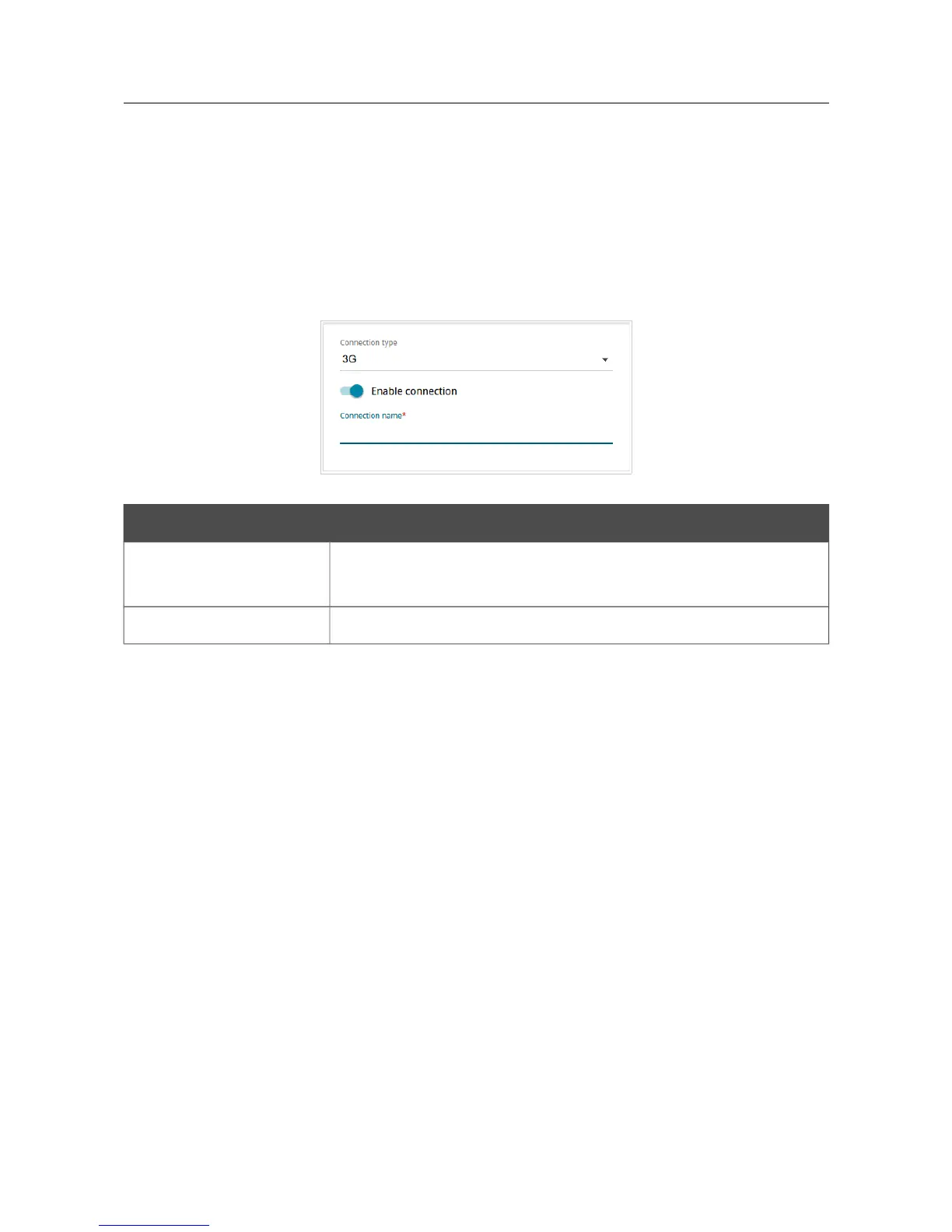

Figure 80. The page for creating a new 3G connection. Selecting a connection type.
Parameter Description
Enable connection
Move the switch to the right to enable the connection.
Move the switch to the left to disable the connection.
Connection name
A name for the connection for easier identification.
Page 100 of 221
