DIR-815/AC Wireless AC1200 Dual Band Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
PPPoE + Static IP (PPPoE Dual Access) Connection

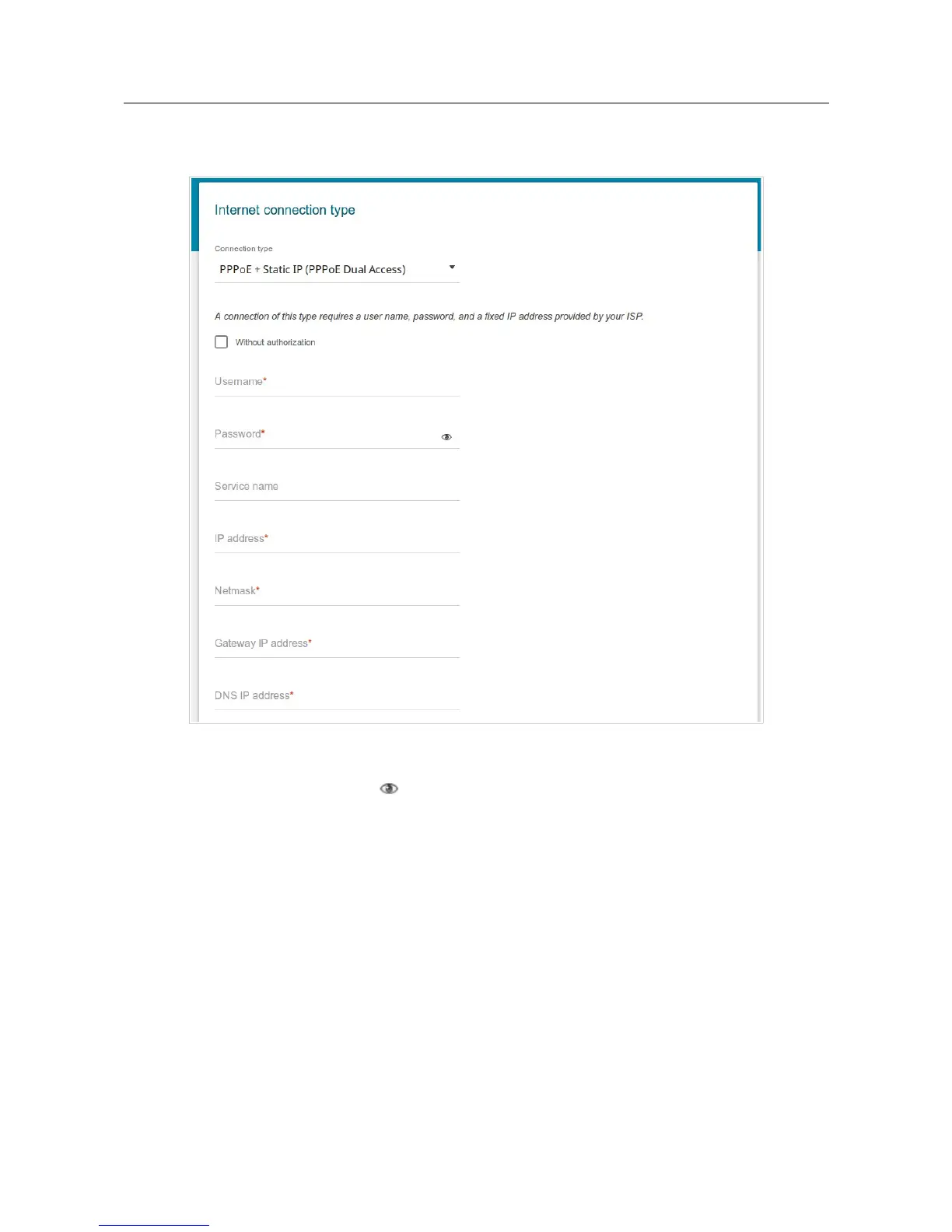

Figure 39. The page for configuring PPPoE + Static IP (PPPoE Dual Access) WAN connection.
In the Username field enter the login and in the Password field enter the password provided by
your ISP. Click the Show icon ( ) to display the entered password. If authorization is not
required, select the Without authorization checkbox.
Also fill in the following fields: IP address, Netmask, Gateway IP address, and DNS IP
address.
Page 56 of 221
