DIR-815/AC Wireless AC1200 Dual Band Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
MAC Filter
On the Firewall / MAC Filter page, you can configure MAC-address-based filtering for computers
of the router's LAN.

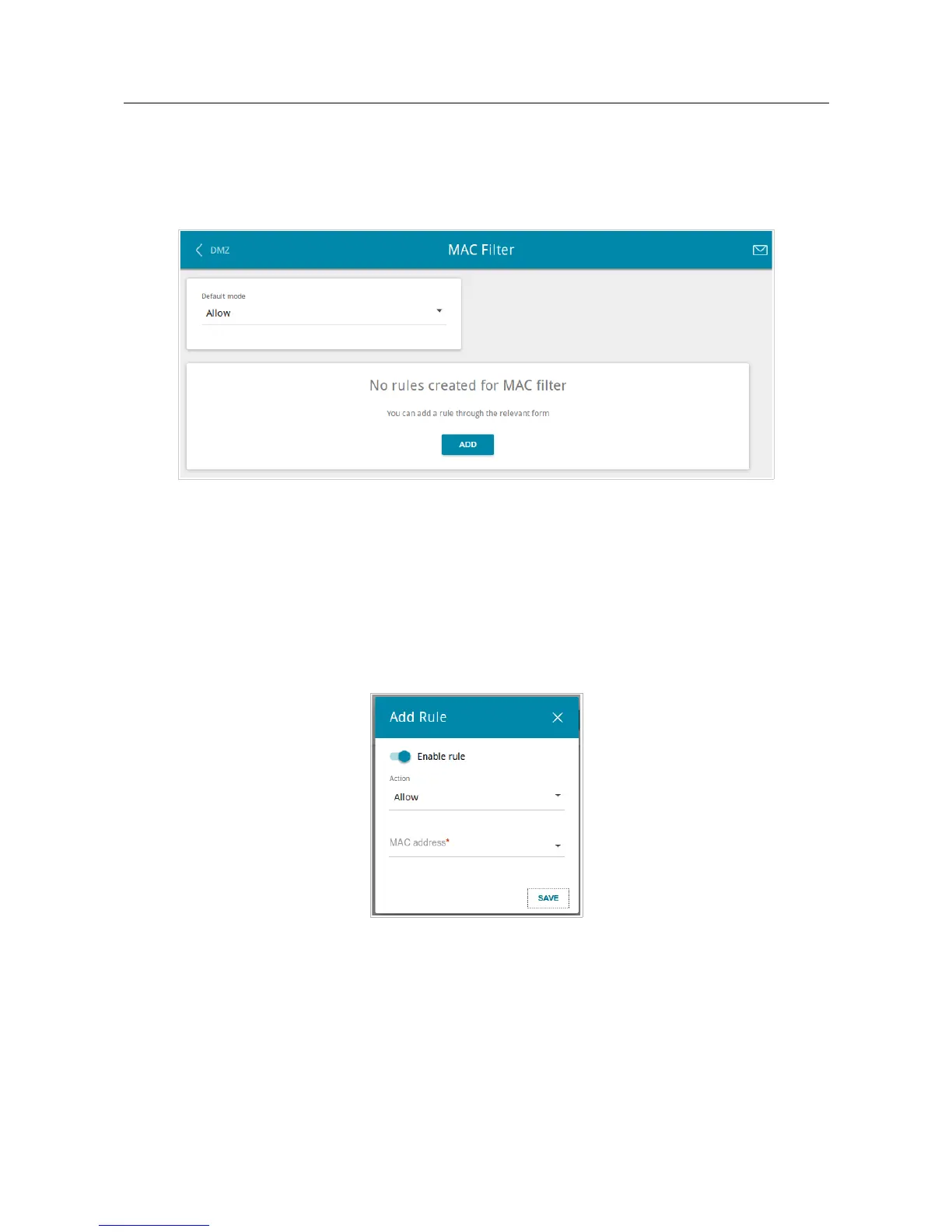

Figure 156. The Firewall / MAC Filter page.
Select the needed action from the drop-down list in the Default mode section to configure
filtering for all devices of the router's network:
• Allow: Allows access to the router's network and to the Internet for devices (the value is
specified by default);
• Deny: Blocks access to the router's network for devices.
If you need to specify a filtering mode for each device separately, create a relevant rule. To do this,
click the ADD button.
Figure 157. The window for adding a rule for the MAC filter.
Page 197 of 221
