DIR-815/AC Wireless AC1200 Dual Band Router
with 3G/LTE Support and USB Port
User Manual
Overview
Back Panel

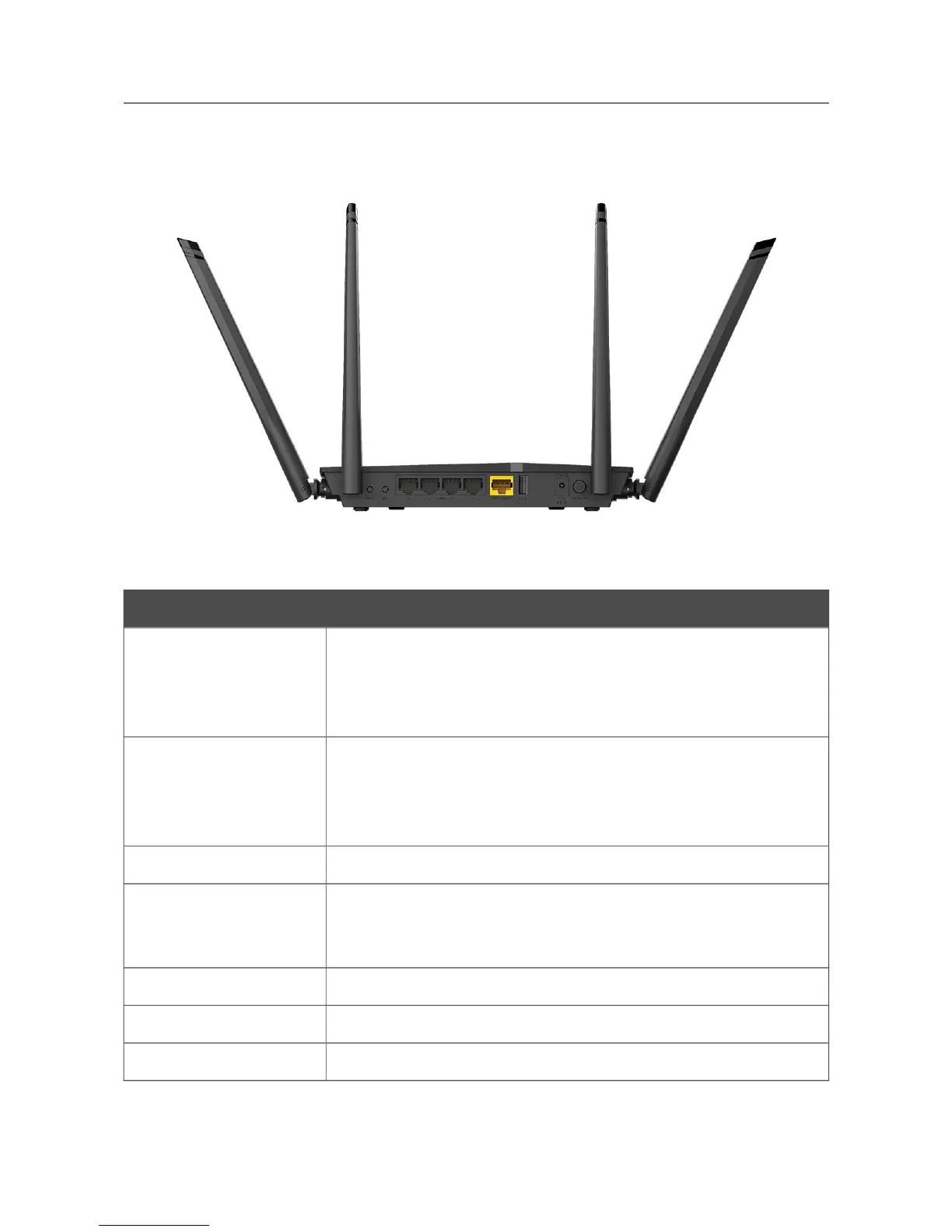

Figure 2. Back panel view.
Port Description
WPS
A button to set up a wireless connection (the WPS function).
To use the WPS function: with the device turned on, push the button,
hold it for 2 seconds, and release. The WPS LED should start
blinking.
WIFI
A button to enable/disable wireless network.
To disable the router's wireless network: with the device turned on,
press the button and release. The 2.4G WLAN and 5G WLAN LEDs
should turn off.
LAN 1-4 4 Ethernet ports to connect computers or network devices.
INTERNET
A port to connect to a cable or DSL modem or to a private Ethernet
line (it is recommended to use the cable included in the delivery
package).
USB A port for connecting a USB device (modem, storage, printer).
12V DC IN Power connector.
POWER A button to turn the router on/off.
The RESET button located on the bottom panel of the router is designed to restore the factory
default settings. To restore the factory defaults, push the button (with the device turned on), hold it
for 10 seconds, and then release the button.
