DIR-815/AC Wireless AC1200 Dual Band Router
with 3G/LTE Support and USB Port
User Manual
Configuring via Web-based Interface
VLAN
On the Advanced / VLAN page, you can create and edit groups of ports for virtual networks
(VLANs).
By default, 2 groups are created in the router's system:
• lan: it includes ports 1-4. You cannot delete this group.
• wan: for the WAN interface; it includes the INTERNET port. You can edit or delete this
group.

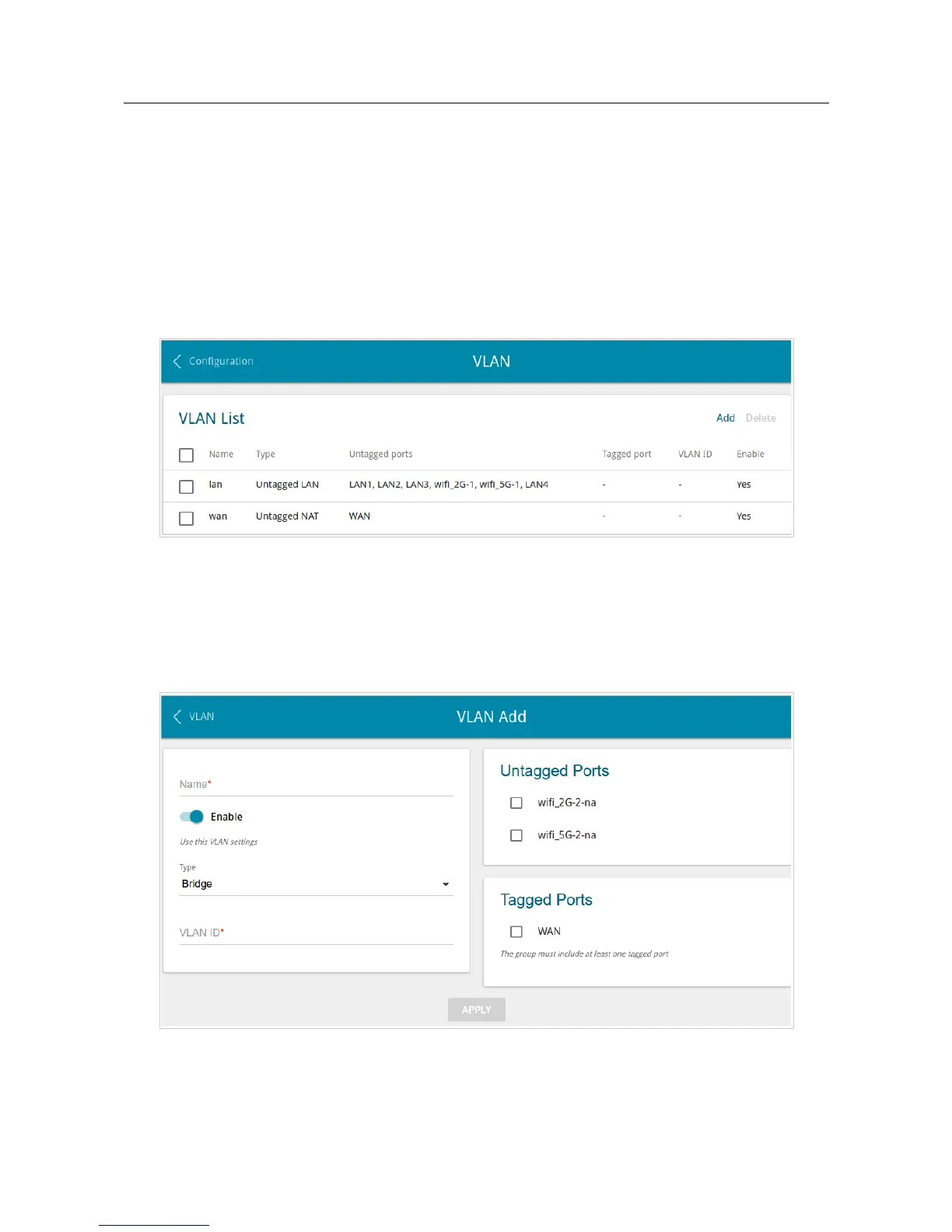

Figure 127. The Advanced / VLAN page.
If you want to create a group including LAN ports of the router, first delete relevant records from
the lan group on this page. To do this, select the lan group. On the opened page, in the Untagged
ports section, deselect the checkbox located to the left of the relevant port, and click the APPLY
button.
To create a new group for VLAN, click the Add button.
Figure 128. The page for adding a group of ports for VLAN.
Page 160 of 221
