D-Link DSL-124 User Manual

70D-Link DSL-124 Wireless N300 ADSL2+ Modem Router User Manual
Section 4 - Conguration

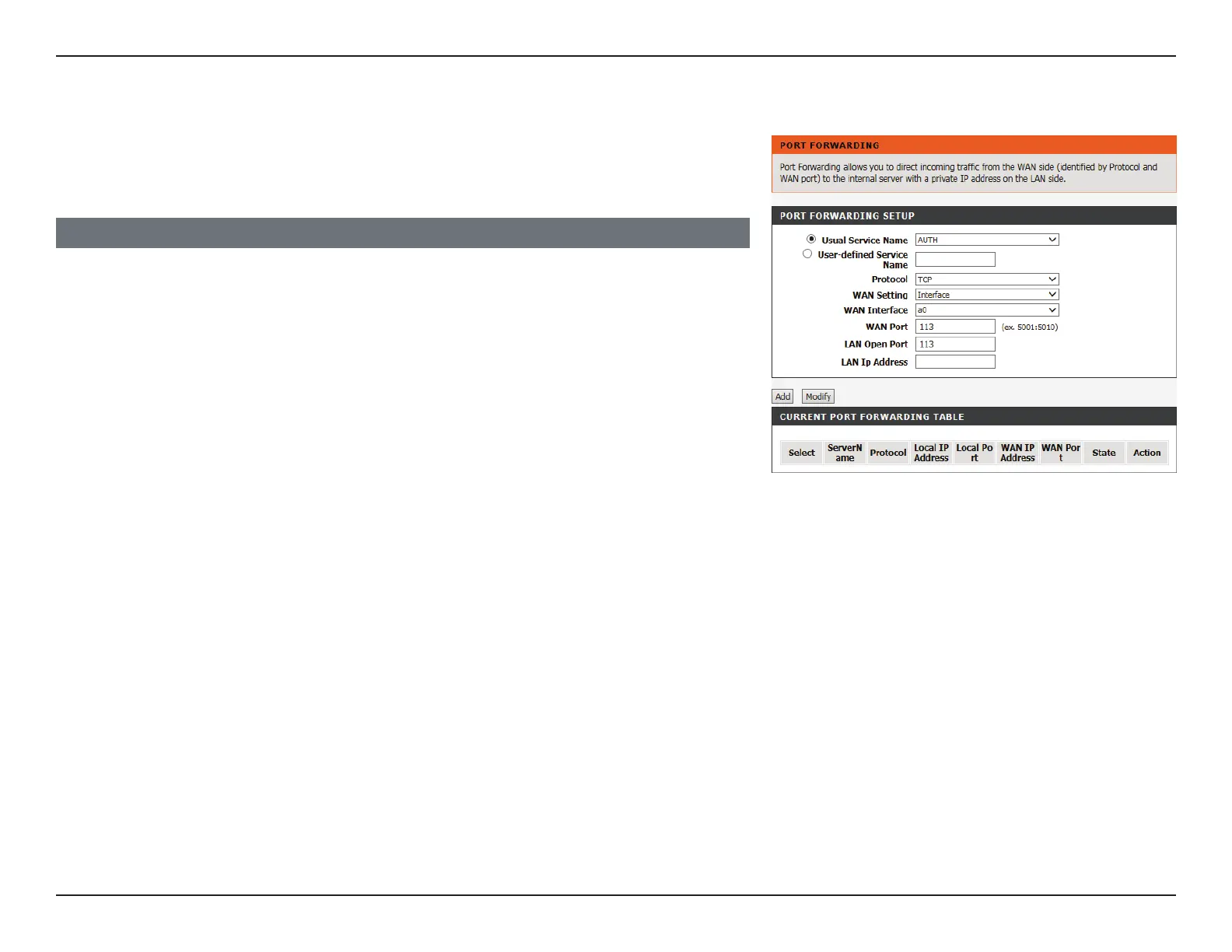

Port Forwarding
Port Forwarding allows you to direct incoming traffic from the WAN side (identified by
Protocol and WAN port) to an internal server with a private IP address on the LAN side.
Well known
Service:
Commonly used protocols are pre-defined and can be easily
selected.
User-defined
Service:
Name the rule you are about to define for your server.
Protocol: Select the protocol type to use with this service.
WAN Interface: Select the WAN Interface from which to forward ports.
WAN Port: Enter the WAN port number.
LAN Port: Enter the LAN port number.
LAN IP Address: Enter the IP address trac is forwarded to.
PORT FORWARDING SETUP
Click Add to add the new port forwarding rule. To modify an existing rule, select it using
the radio selection button. The boxes of the Port Forwarding Setup section will populate
with the rules parameters. Enter your changes and click Modify.
