Daikin FTXN24KVJU Service Manual

Indoor Unit: 09/12 Class SiUS041111
132 Removal Procedure
1.3 Removal of Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

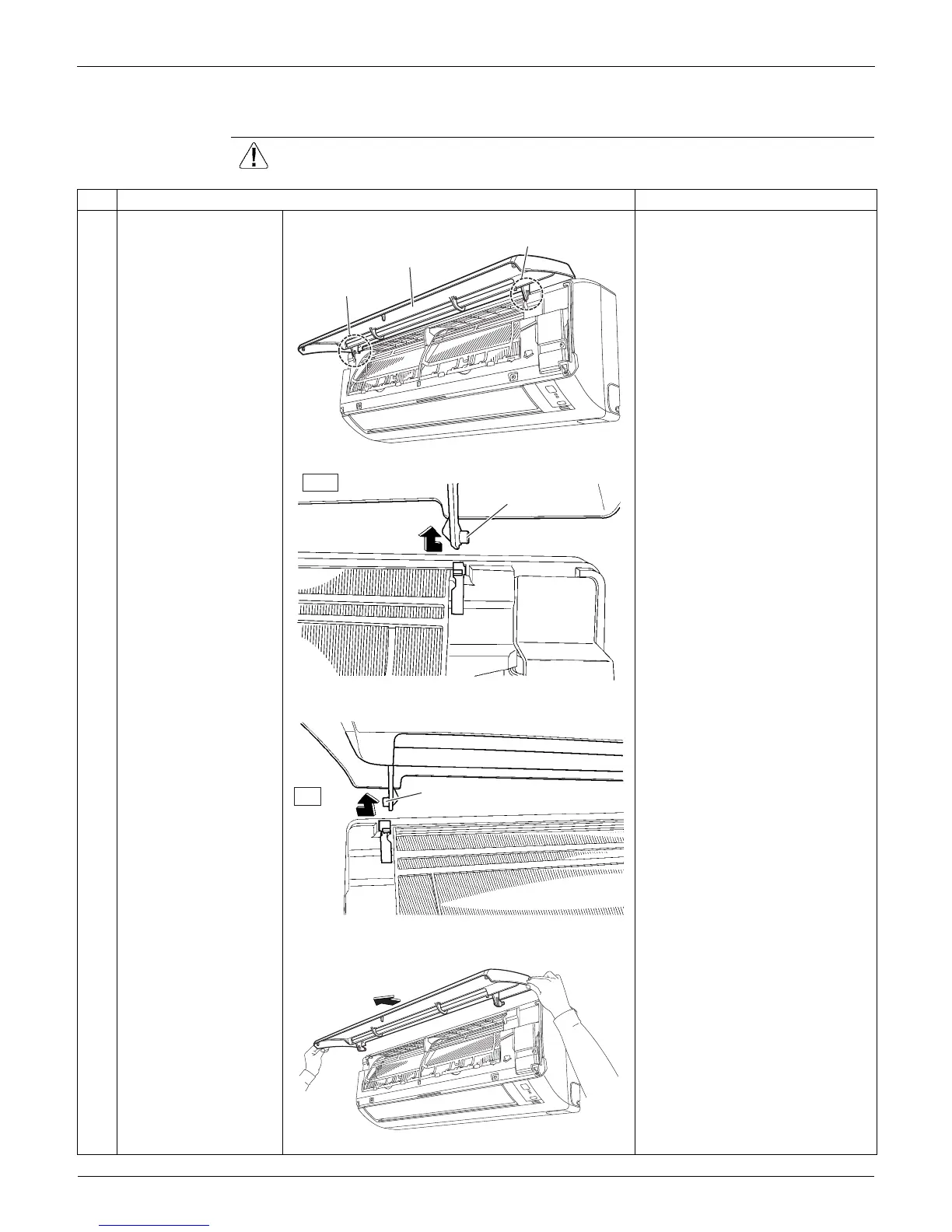

Step Procedure Points
1
Open the front panel
over the position where
it stops.
2
Release the right rotary
shaft.
 The rotary shaft on each side
can be released easily by sliding
each shaft inwards.
3
Release the left rotary
shaft.
4
Remove the front panel.  When reassembling the front
panel, fit the right and left rotary
shafts one by one into the
grooves and fully push them in
position.
Left side
Front panel
Right side
(R11627)
Right
Rotary shaft
(R11628)
Left
Rotary shaft
(R11629)
(R11630)
