SiUS041111 Outdoor Unit: 09/12 Class
Removal Procedure 171

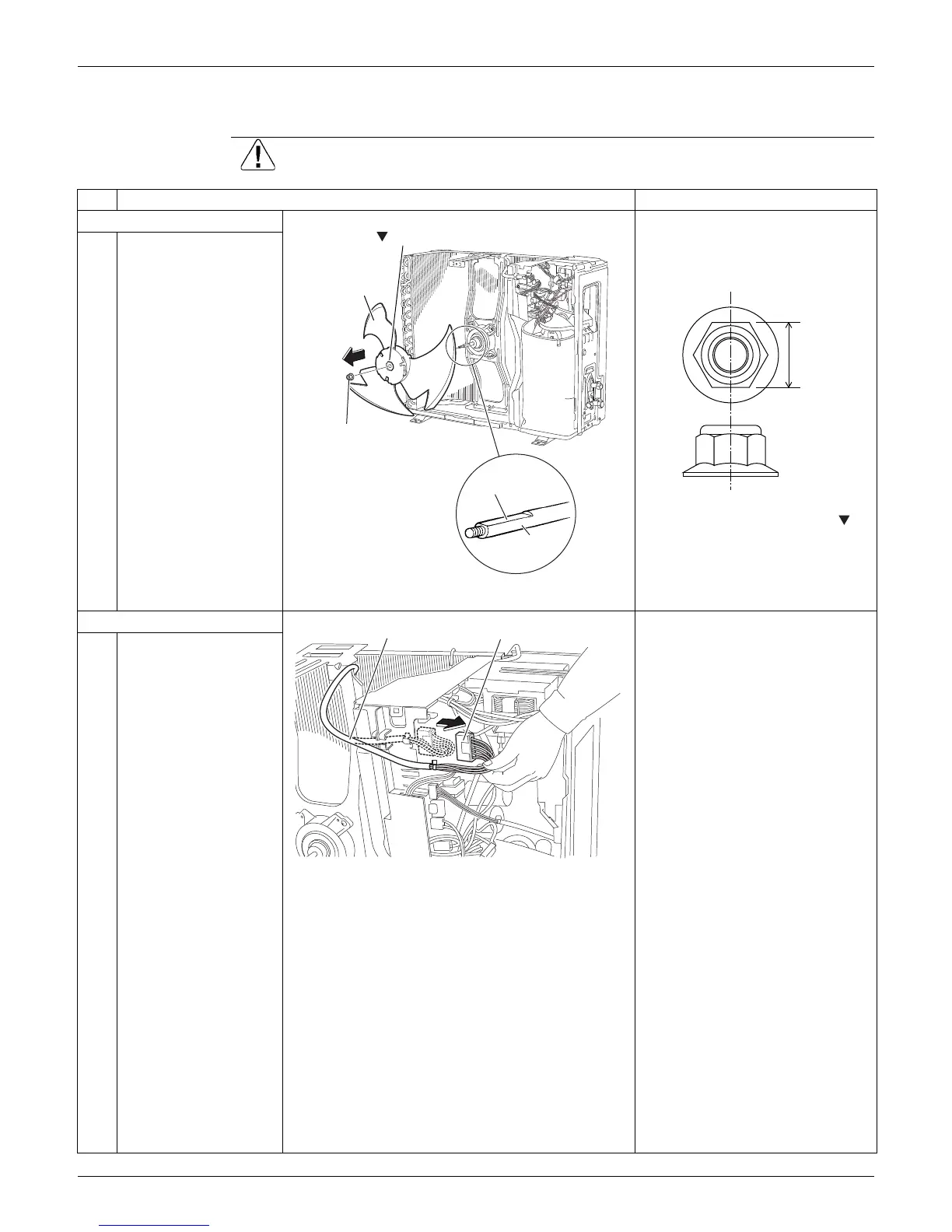

3.2 Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Remove the outdoor fan. Preparation
 Remove the panels according to
the “Removal of Outer Panels”.
 Nut size: M6
1
2
Remove the nut of the
outdoor fan.
Remove the outdoor
fan.
 When reassembling, align
mark of the outdoor fan with D-
cut section of the motor shaft.
2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
2
Release the fan motor
lead wire from the
hooks.
(R14690)
Shaft
D-cut
Nut
Outdoor fan
Mark
10 mm
(R12236)
(R11754)
Fan motor lead wire [S70]
