Control Specification SiUS041111
40 Function and Control
3.5 Input Current Control
Outline The microcomputer calculates the input current during the compressor is running, and sets the
frequency upper limit from the input current.
In case of heat pump model, this control which is the upper limit control of the frequency takes
priority to the lower limit of control of four-way valve operation compensation.
Detail

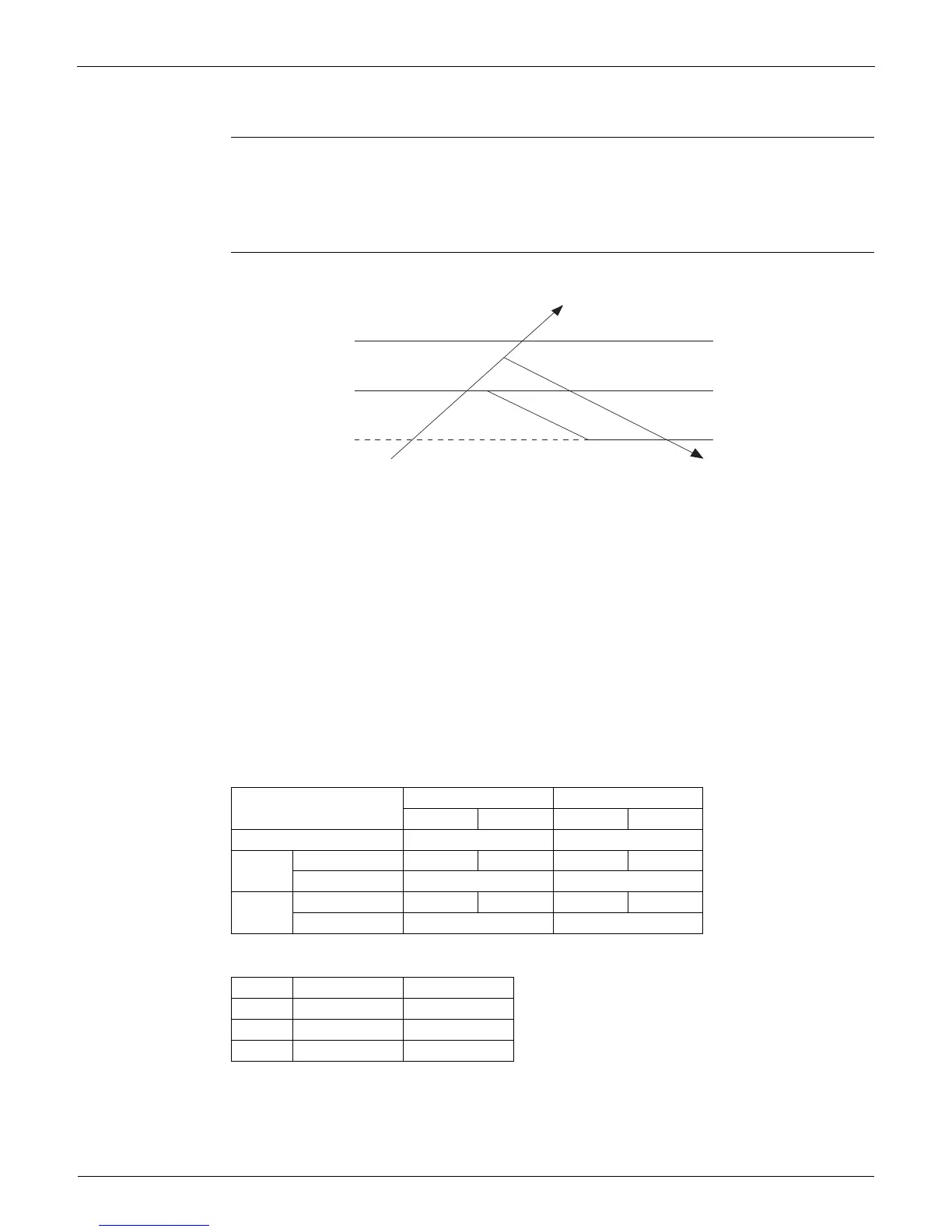

Frequency control in each zone
Stop zone
After 2.5 seconds in this zone, the compressor is stopped.
Dropping zone
The upper limit of the compressor frequency is defined as operation frequency – 2 Hz.
After this, the output frequency is pulled down by 2 Hz every second until it reaches the keep
zone.
Keep zone
The present maximum frequency goes on.
Reset zone
Limit of the frequency is canceled.
09/12 class
15/18/24 class
Limitation of current dropping and stop value according to the outdoor temperature
The current drops when outdoor temperature becomes higher than a certain level (depending
on the model).
09 class 12 class
Cooling Heating Cooling Heating
A (A) 14.0 14.0
B (A) Normal mode 7.0 8.5 7.75 8.5
ECONO mode 2.75 2.75
C(A) Normal mode 6.25 7.75 7.0 7.75
ECONO mode 2.0 2.0
Cooling Heating
A (A) 14.5 15.0
B (A) 11.5 12.0
C(A) 10.5 11.0
