Daikin FTXN24KVJU Service Manual

Outdoor Unit: 15/18/24 Class SiUS041111
198 Removal Procedure

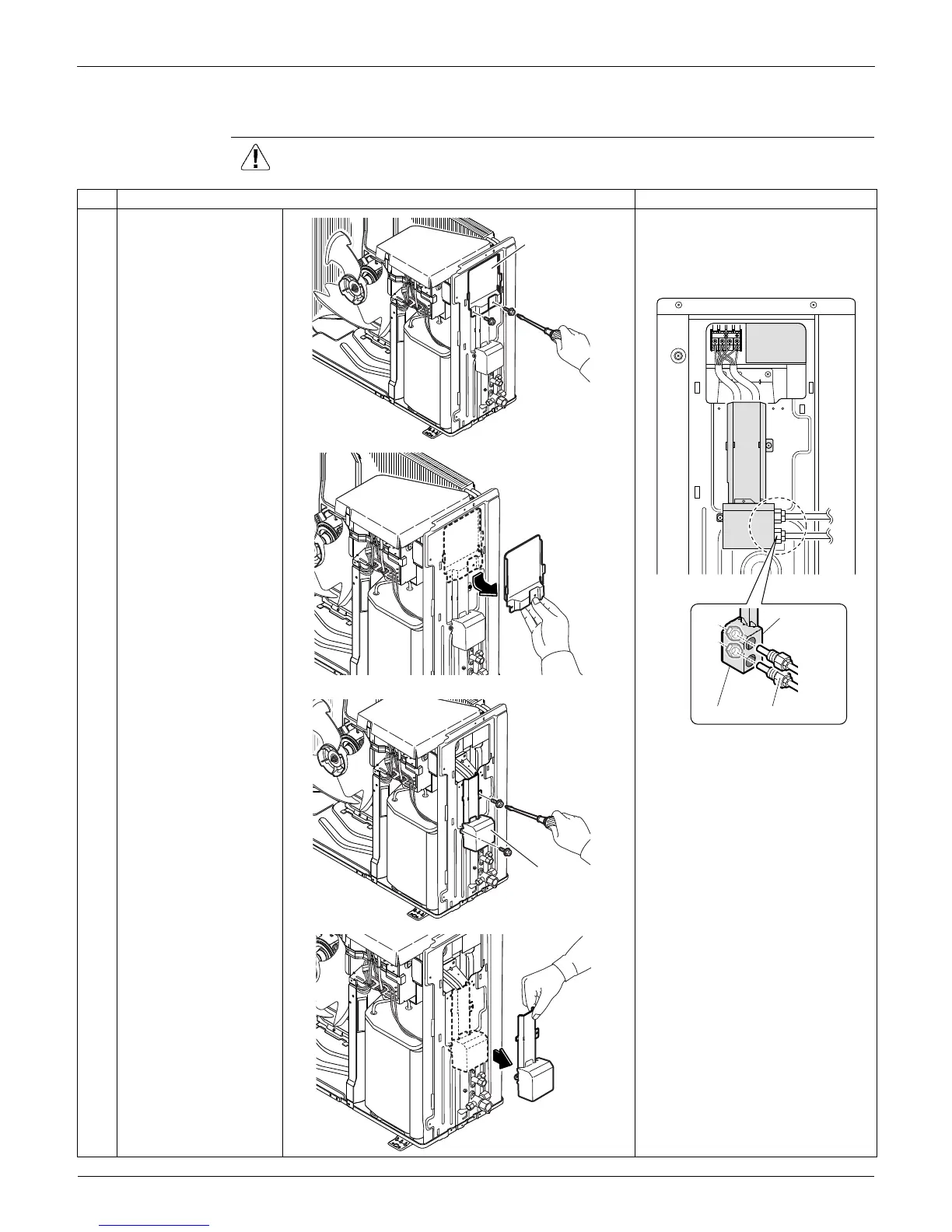

4.3 Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1 Remove the 2 screws
of the protection plate.
 When reassembling, pass the
connecting wires through the
conduit and secure them with a
lock nut.
2 Remove the protection
plate.
3 Remove the 2 screws
of the conduit mounting
plate.
4 Remove the conduit
mounting plate.
(R14706)
Protection plate
1
2
3
Lock nut
Conduit
mounting
plate
Conduit
(R14734)
(R14707)
(R14708)
Conduit
mounting plate
(R14709)
