Daikin FTXN24KVJU Service Manual

Outdoor Unit: 15/18/24 Class SiUS041111
194 Removal Procedure
4.2 Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.

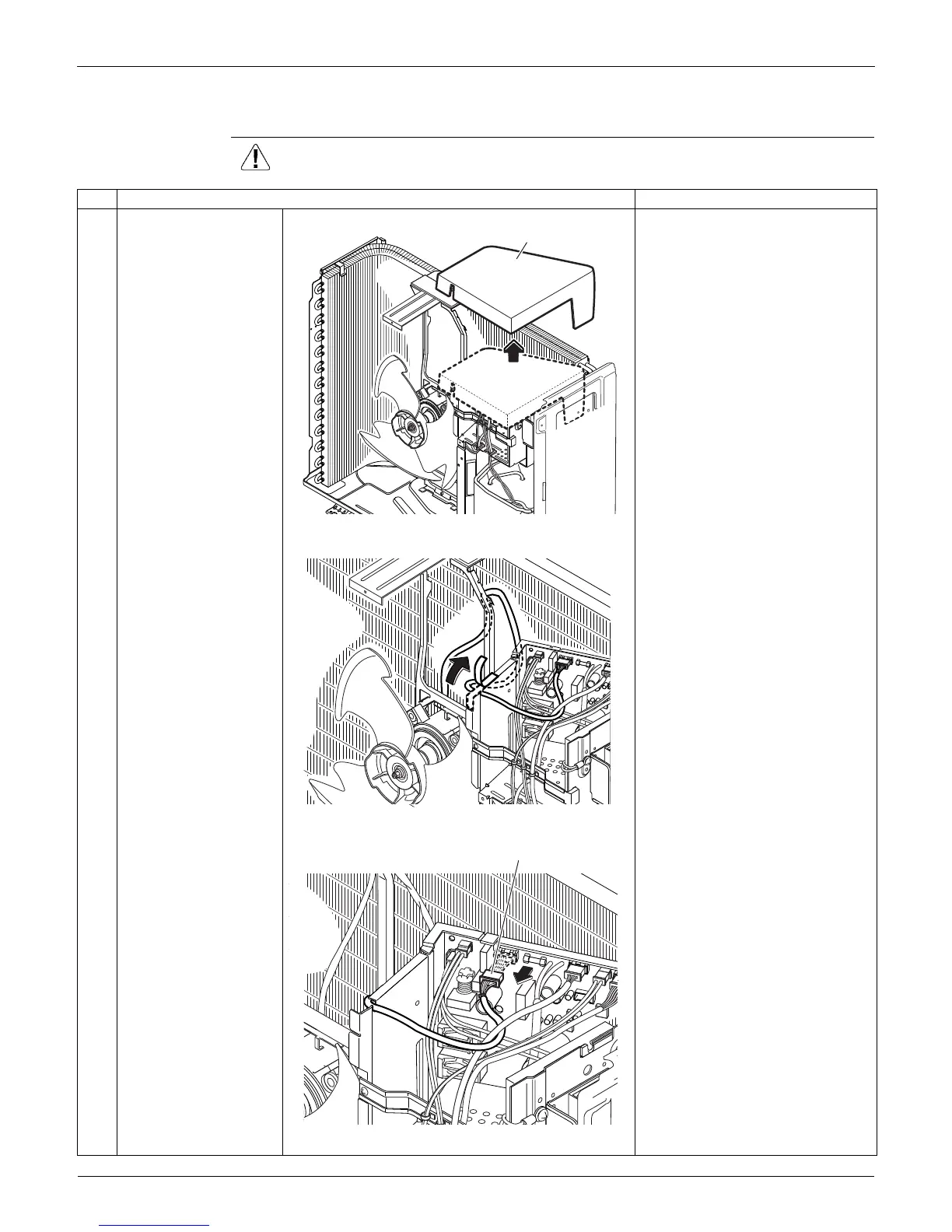

Step Procedure Points
1 Remove the shield
plate.
Preparation
 Remove the top panel and the
front panel according to the
“Removal of Outer Panels”.
 This procedure is not necessary
to remove the outdoor fan only.
2 Peel off the filament
tape.
3 Disconnect the
connector for the fan
motor [S70].
(R14287)
Shield plate
(R14288)
(R14289)
[S70]
