Daikin FTXN24KVJU Service Manual

SiUS041111 Indoor Unit: 15/18/24 Class
Removal Procedure 165

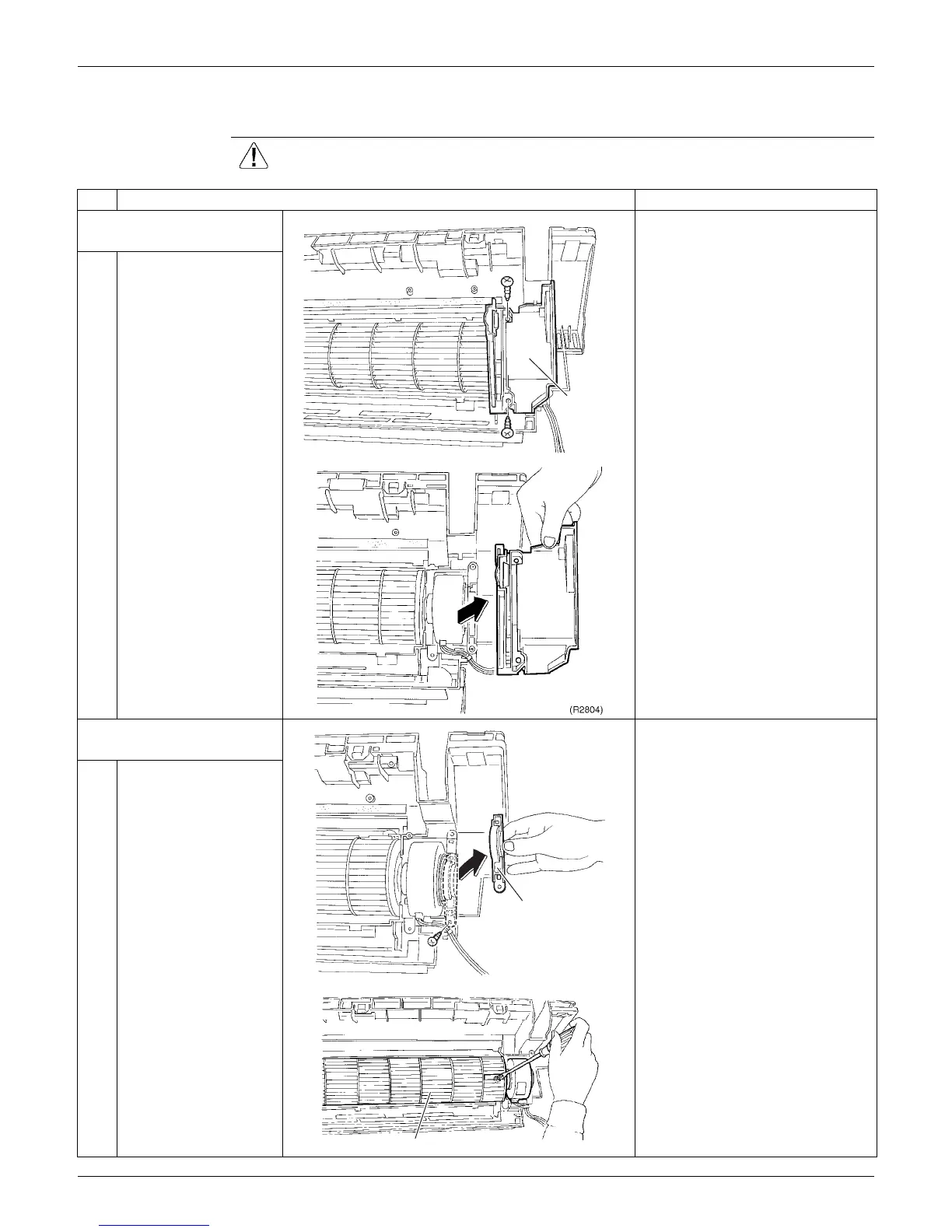

2.6 Removal of Fan Motor / Fan Rotor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the right side
plate.
1
Remove the 2 screws.  You can remove the fan rotor
without detaching the right side
plate.
2
Lift the right side plate
and remove it.
2. Remove the fan motor and
rotor.
1
Remove the screw and
remove the fan motor
fixing plate.
2
Remove the screw of
the fan rotor.
Right
side plate
(R2803)
Fan motor fixing plate
(R2805)
Fan rotor
(R2806)
