Daikin FTXN24KVJU Service Manual

SiUS041111 Indoor Unit: 09/12 Class
Removal Procedure 139

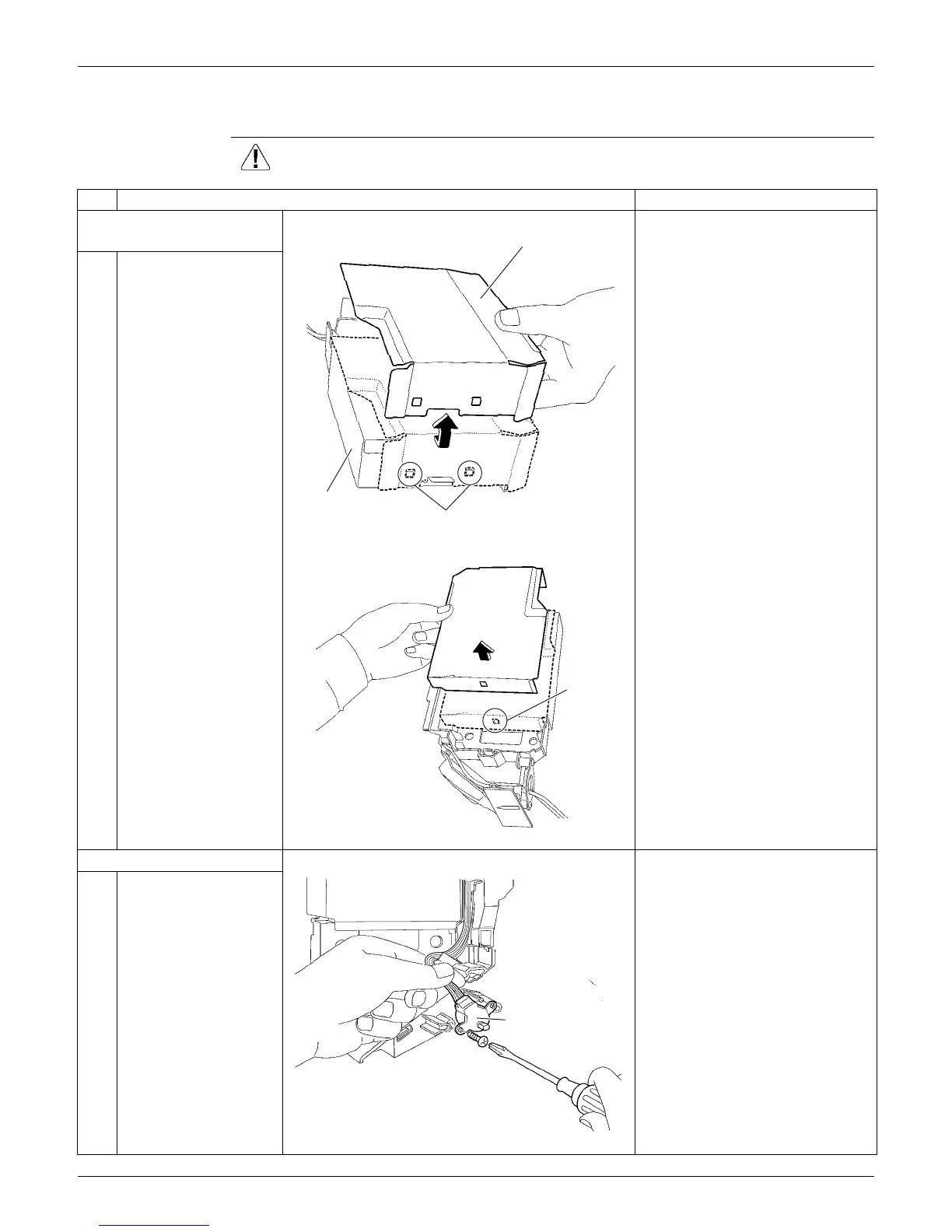

1.6 Removal of Swing Motor / PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the shield plate
(2).
Preparation
 Remove the electrical box
according to the “Removal of
Electrical Box / Vertical Blades”.
1
Unfasten the hooks at
the upper 2 positions of
the shield plate (2).
2
Unfasten the hook at
the lower position,
and remove the shield
plate (2).
2. Remove the swing motor.
1
Remove the screw of
the swing motor.
(R14603)
Hook
Shield plate (2)
Electrical box
Hook
(R11649)
Swing motor
(R11650)
