Daikin FTXN24KVJU Service Manual

SiUS041111 Indoor Unit: 15/18/24 Class
Removal Procedure 153

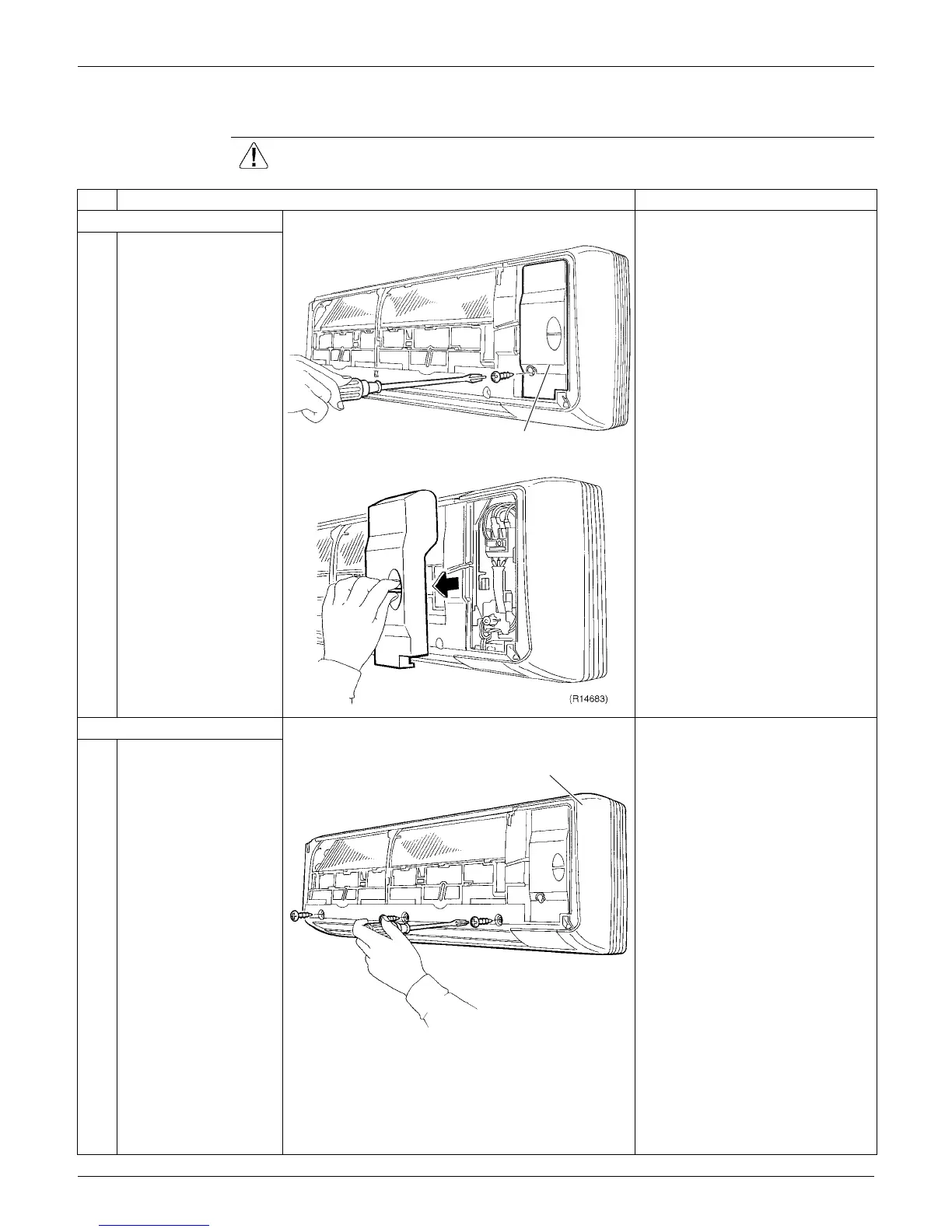

2.2 Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1. Remove the service cover. Preparation
 Remove the front panel
according to "Removal of the Air
Filters / Front Panel".
 You can remove the front grille
without detaching the service
cover.
1
Remove the screw and
remove the service
cover.
2. Remove the front grille.
1
Remove the 3 screws
of the front grille.
 Refer to the removal procedure
in a reverse way when
reassembling.
Service cover
(R2756)
(R2758)
Front grille
