9.7.7 Figure 7 - 914CCHxxxCT
130BD242.10
1
2
[0.93]
23.5
[2.36] 60
[0.93]
23.5
L1
L
L1
L1
L
[2.36] 60
[0.19]
4.8
[0.19]
4.8
+
_
0.01
0.2
+
_
+
_
0.01
0.2
+
_
39.37
+ 1.97
0.00
+50
0
1000
39.37
+ 1.97
0.00
+50
0
1000
1 Supplier Marking
2 Supplier Marking

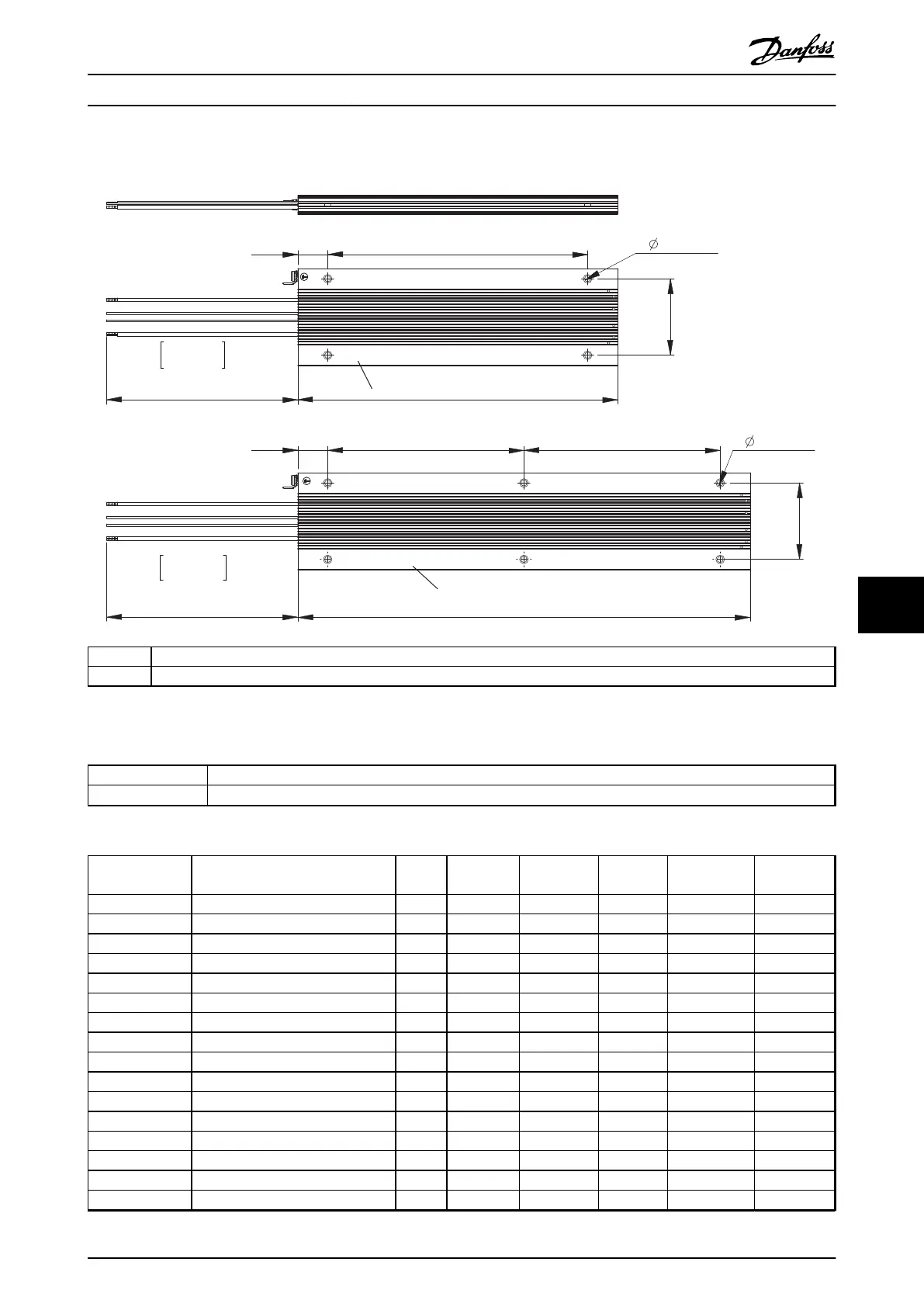

Illustration 9.35 IP54, Side View and Top View
Resistor cable
AWG 16, UL Style 1659, 600 V, 250 °C
Temperature switch
180 °C NC, AWG 20, orange
Table 9.13 Cable Details
Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in
L1 ±0.5
mm
L1 ±0.02 in
Weight [kg]
175U3000 MCE101A1K20P100RE54CAW 1200 145 5.71 98 3.86 0.27
175U3001 MCE101A850RP100RE54CAW 850 145 5.71 98 3.86 0.27
175U3002 MCE101A630RP100RE54CAW 630 145 5.71 98 3.86 0.27
175U3003 MCE101A570RP100RE54CAW 570 145 5.71 98 3.86 0.27
175U3004 MCE101A410RP100RE54CAW 410 145 5.71 98 3.86 0.27
175U3005 MCE101A415RP200RE54CAW 415 251 9.8 204 8.03 0.54
175U3006 MCE101A300RP100RE54CAW 300 145 5.71 98 3.86 0.27
175U3007 MCE101A270RP200RE54CAW 270 251 9.8 204 8.03 0.54
175U3008 MCE101A200RP200RE54CAW 200 251 9.8 204 8.03 0.54
175U3011 MCE101A200RP100RE54CAW 200 145 5.71 98 3.86 0.27
175U3016 MCE101A145RP100RE54CAW 145 145 5.71 98 3.86 0.27
175U3021 MCE101A100RP100RE54CAW 100 145 5.71 98 3.86 0.27
175U3026 MCE101A70R0P200RE54CAW 70 251 9.8 204 8.03 0.54
175U3031 MCE101A48R0P200RE54CAW 48 251 9.8 204 8.03 0.54
175U3036 MCE101A35R0P200RE54CAW 35 251 9.8 204 8.03 0.54
175U3096 MCE101A300RP200RE54CAW 300 251 9.8 204 8.03 0.54
