9.7.4 Figure 4 - 914CBR-VxxxDT
[ 4,53 ]
115
[ 4,74 ]
120
L
L1
[0,71]
18
[ 4,02 ]
102
[ 4,88 ]
124
[L+5,63]
L+143
1
2
130BD224.10
1 Name plate
2 Hot surface warning x2

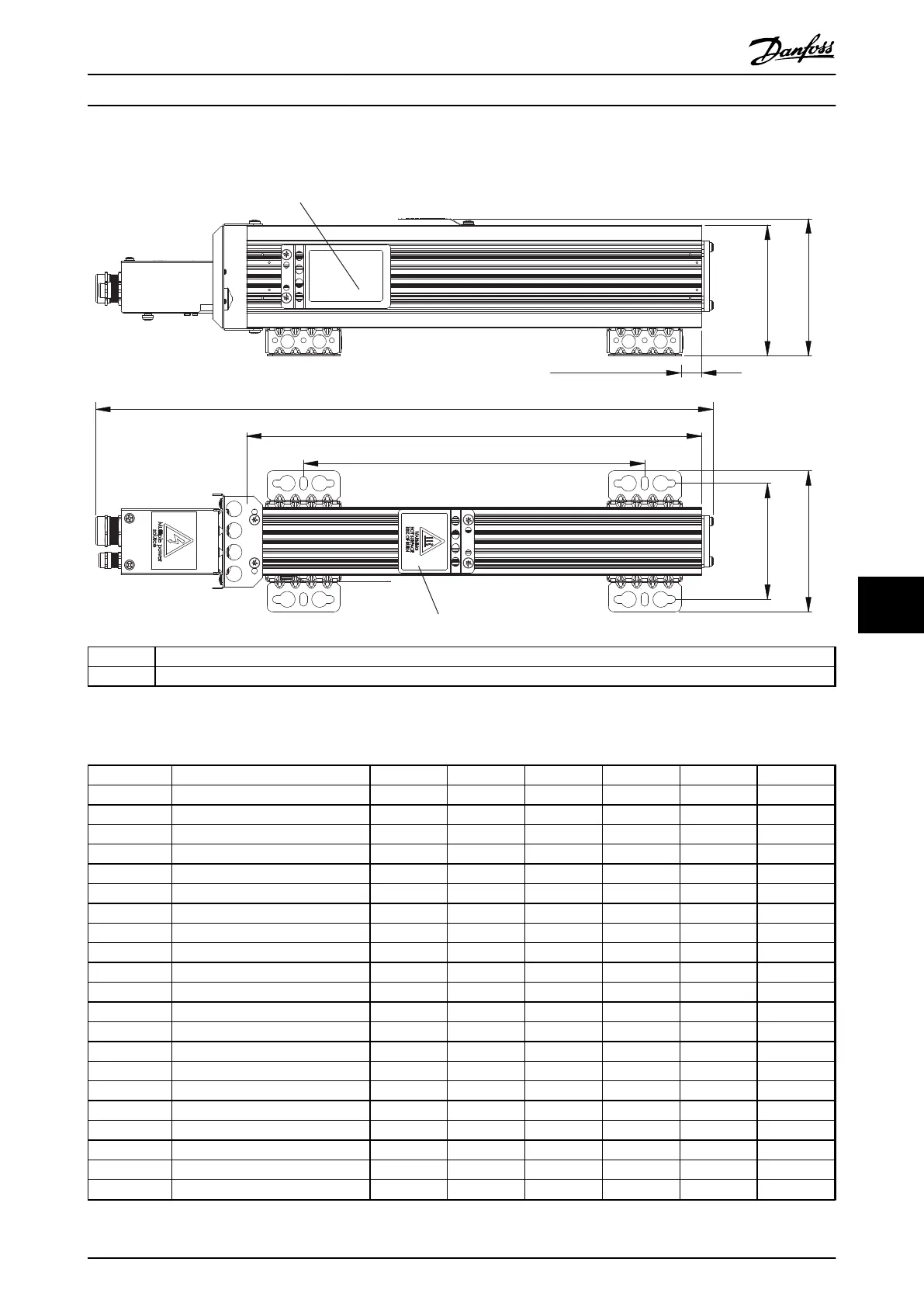

Illustration 9.18 IP21, Side View and Top View
Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in L1 ±2 mm L1 ±0.04 in
Weight [kg]
175U3009 MCE101A200RP360RE21TAW 200 210 8.27 110 4.33 1.8
175U3012 MCE101A145RP450RE21TAW 145 260 10.24 160 6.30 2.4
175U3014 MCE101A145RP280RE21TAW 145 160 6.30 70 2.76 1.3
175U3017 MCE101A110RP360RE21TAW 110 210 8.27 110 4.33 1.8
175U3019 MCE101A105RP570RE21TAW 105 330 12.99 230 9.06 3
175U3022 MCE101A80R0P450RE21TAW 80 260 10.24 160 6.30 2.4
175U3024 MCE101A72R0P960RE21TAW 72 560 22.05 460 18.11 4.6
175U3027 MCE101A56R0P680RE21TAW 56 400 15.75 300 11.81 3.5
175U3029 MCE101A52R0P1K29E21TAW 52 760 29.92 660 25.98 6.1
175U3034 MCE101A38R0P1K13E21TAW 38 660 25.98 560 22.05 5.4
175U3041 MCE101A27R0P280RE21TAW 27 160 6.30 70 2.76 1.3
175U3053 MCE101A18R0P450RE21TAW 18 260 10.24 160 6.30 2.4
175U3059 MCE101A13R0P680RE21TAW 13 400 15.75 300 11.81 3.5
175U3068 MCE101A9R00P1K13E21TAW 9 660 25.98 560 22.05 5.4
175U3102 MCE101A1K20P360RE21TAW 1200 210 8.27 110 4.33 1.8
175U3104 MCE101A850RP280RE21TAW 850 160 6.30 70 2.76 1.3
175U3108 MCE101A630RP360RE21TAW 630 210 8.27 110 4.33 1.8
175U3110 MCE101A570RP570RE21TAW 570 330 12.99 230 9.06 3
175U3112 MCE101A415RP790RE21TAW 415 460 18.11 360 14.17 3.9
175U3114 MCE101A410RP570RE21TAW 410 330 12.99 230 9.06 3
175U3116 MCE101A270RP790RE21TAW 270 460 18.11 360 14.17 3.9
