Danfoss VLT Brake Resistor MCE 101 User Manual

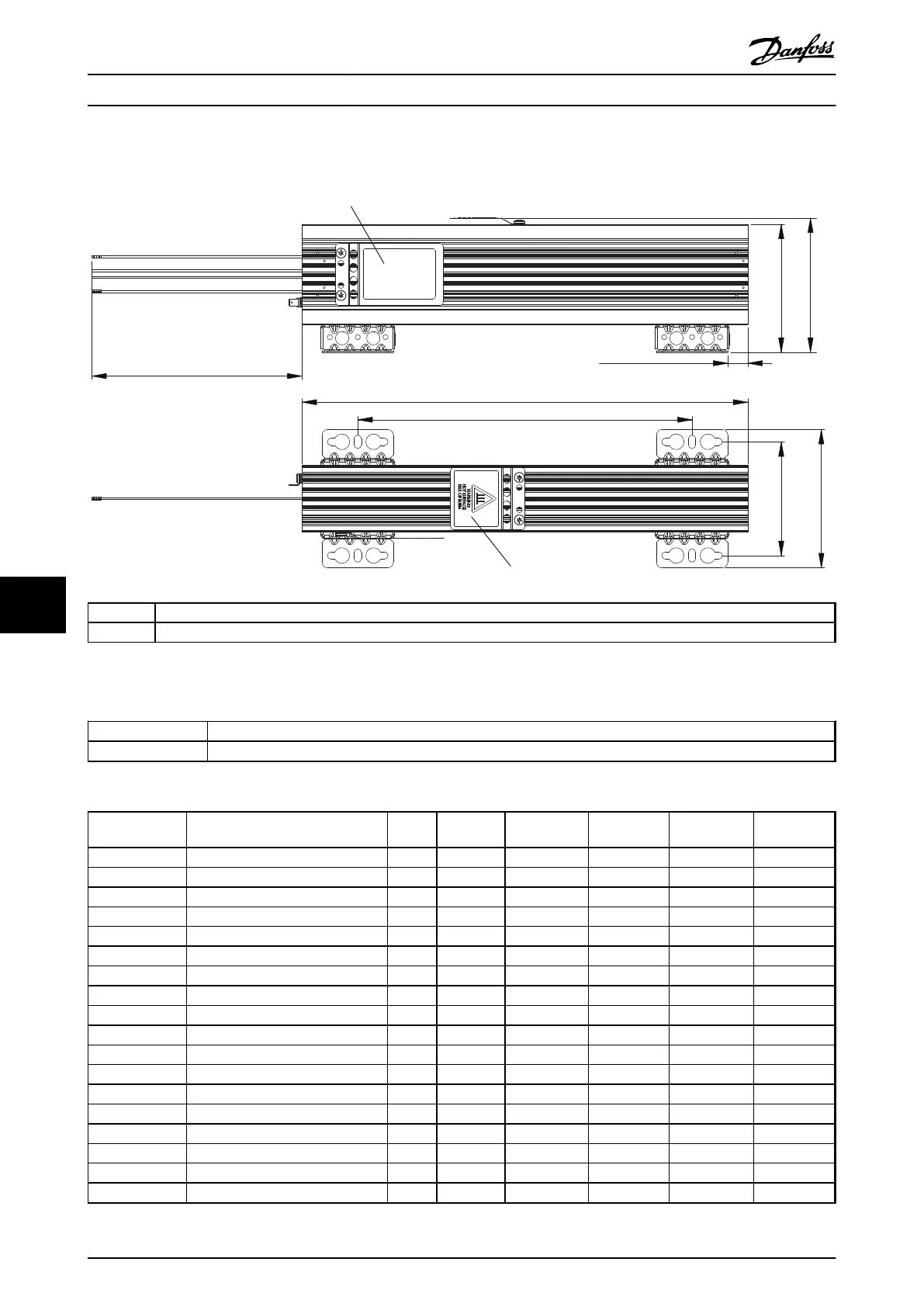

9.7.5 Figure 5 - 914CBR-VxxxCT
+1,97
0,00
+50
0
[39,37]
1000
1
[ 4,74 ]
120
[ 4,53 ]
115
2
[0,71]
18
L
L1
[ 4,02 ]
102
[ 4,88 ]
124
130BD219.10
1 Name plate
2 Hot surface warning x2
Illustration 9.24 IP54, Side View and Top View
Resistor cable
AWG 16, UL Style 1659, 600 V, 250 °C
Temperature switch
180 °C NC, AWG 20, orange
Table 9.10 Cable Details
Danfoss P/N
Typecode
[Ω]
L ±2 mm L ±0.08 in L1 ±2 mm L1 ±0.08 in
Weight [kg]
175U3301 MCE101A100RP450RE54CAW 100 260 10.24 160 6.3 2.4
175U3302 MCE101A70R0P570RE54CAW 70 330 12.99 230 9.06 3
175U3303 MCE101A48R0P960RE54CAW 48 560 22.05 460 18.11 4.6
175U3304 MCE101A35R0P1K13E54CAW 35 660 25.98 560 22.05 5.4
175U3310 MCE101A410RP450RE54CAW 410 260 10.24 160 6.30 2.4
175U3311 MCE101A270RP570RE54CAW 270 330 12.99 230 9.06 3
175U3312 MCE101A200RP960RE54CAW 200 560 22.05 460 18.11 4.6
175U3313 MCE101A145RP1K13E54CAW 145 660 25.98 560 22.05 5.4
175U3317 MCE101A850RP280RE54CAW 850 160 6.30 70 2.76 1.3
175U3318 MCE101A570RP450RE54CAW 570 260 10.24 160 6.30 2.4
175U3319 MCE101A415RP570RE54CAW 415 330 12.99 230 9.06 3
175U3320 MCE101A270RP960RE54CAW 270 560 22.05 460 18.11 4.6
175U3321 MCE101A200RP1K13E54CAW 200 660 25.98 560 22.05 5.4
175U3326 MCE101A27R0P360RE54CAW 27 210 8.27 110 4.33 1.8
175U3327 MCE101A18R0P570RE54CAW 18 330 12.99 230 9.06 3
175U3328 MCE101A13R0P680RE54CAW 13 400 15.75 300 11.81 3.5
175U3329 MCE101A9R00P1K13E54CAW 9 660 25.98 560 22.05 5.4
175U3335
MCE101A110RP450RE54CAW 110 260 10.24 160 6.30 2.4
Specifications Design Guide
96 Danfoss A/S © Rev. 05/2014 All rights reserved. MG90O202
