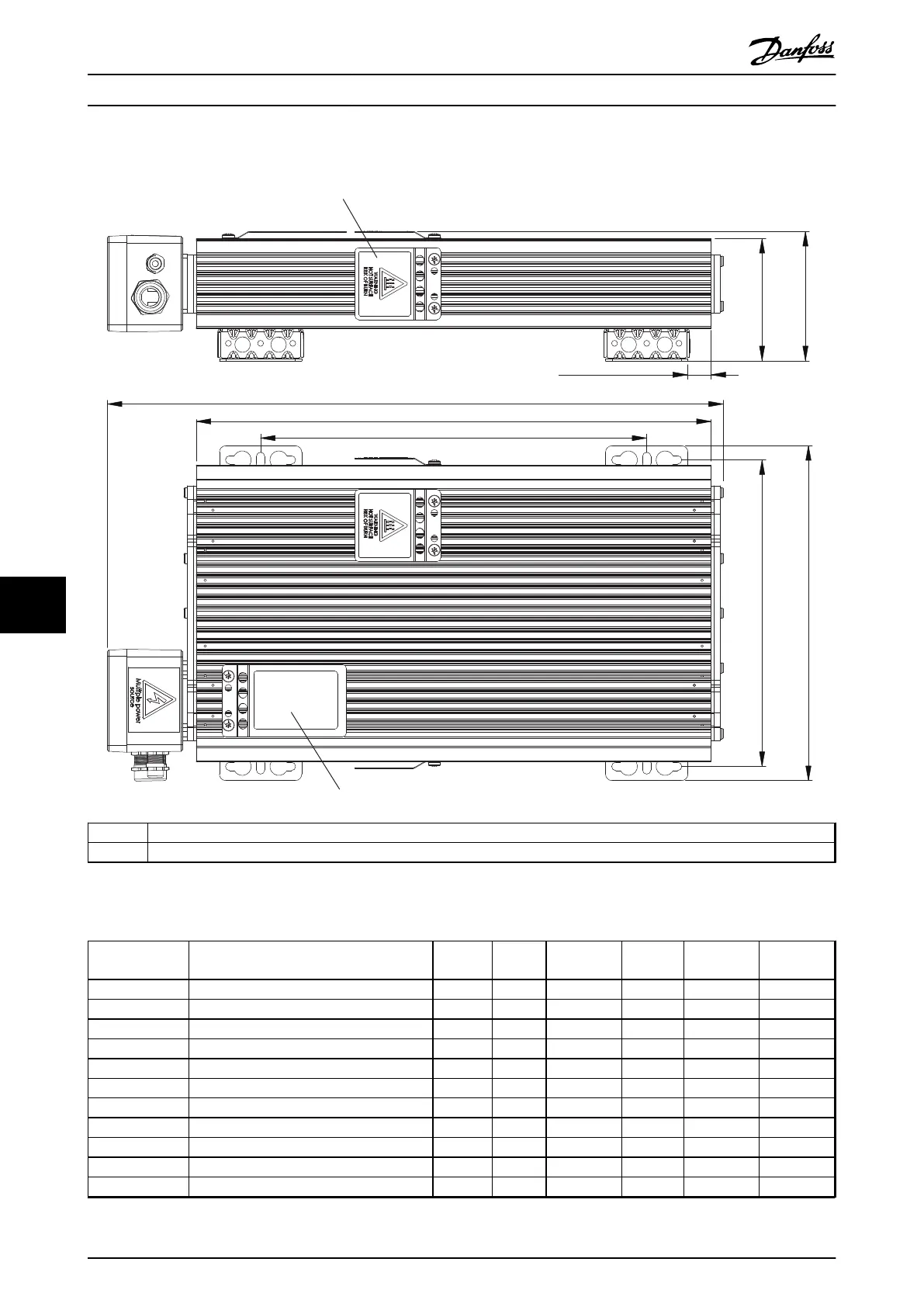

9.7.3 Figure 3 - 914CBT-HxxxBHT
L
L1
[0.71]
18
[L+3.11]
L+79
[3.74]
95
[3.96]
100
[9.37]
238
[10.24]
260
1
2
130BD230.10
1 Hot surface warning x3
2 Name plate
Illustration 9.12 IP65, Side View and Top View
Danfoss P/N Typecode
[Ω]
L ±2
mm
L ±0.08 in
L1 ±2
mm
L1 ±0.04 in
Weight [kg]
175U3033 MCE101A42R0P1K70E65TAW 42 460 18.11 360 14.17 9.2
175U3038 MCE101A31R0P1K70E65TAW 31 460 18.11 360 14.17 9.2
175U3040 MCE101A28R0P1K40E65TAW 28 400 15.75 300 11.81 8.2
175U3044 MCE101A27R0P2K20E65TAW 27 560 22.05 460 18.11 11
175U3048 MCE101A22R0P1K70E65TAW 22 460 18.11 360 14.17 9.2
175U3050 MCE101A19R0P2K20E65TAW 19 560 22.05 460 18.11 11
175U3056 MCE101A14R0P2K80E65TAW 14 660 25.98 560 22.05 12.8
175U3062 MCE101A12R0P3K20E65TAW 12 760 29.92 660 25.98 14.6
175U3074 MCE101A5R70P1K40E65TAW 5,7 400 15.75 300 11.81 8.2
175U3081 MCE101A3R50P2K20E65TAW 3,5 560 22.05 460 18.11 11
175U3087 MCE101A2R80P3K20E65TAW 2,8 760 29.92 660 25.98 14.6
