Danfoss VLT Brake Resistor MCE 101 User Manual

9.7.16 Figure 16 - 929CBT-VxxxGHT
130BD292.10
[L + 8.82]
L + 224
L
L1
[0.53]
13.5
L
1
2
[9.88]
251
[11.02]
280
[10.63]
270
[11.81]
300
[0.33]
8.5
1 Hot surface warning x3
2 Name plate

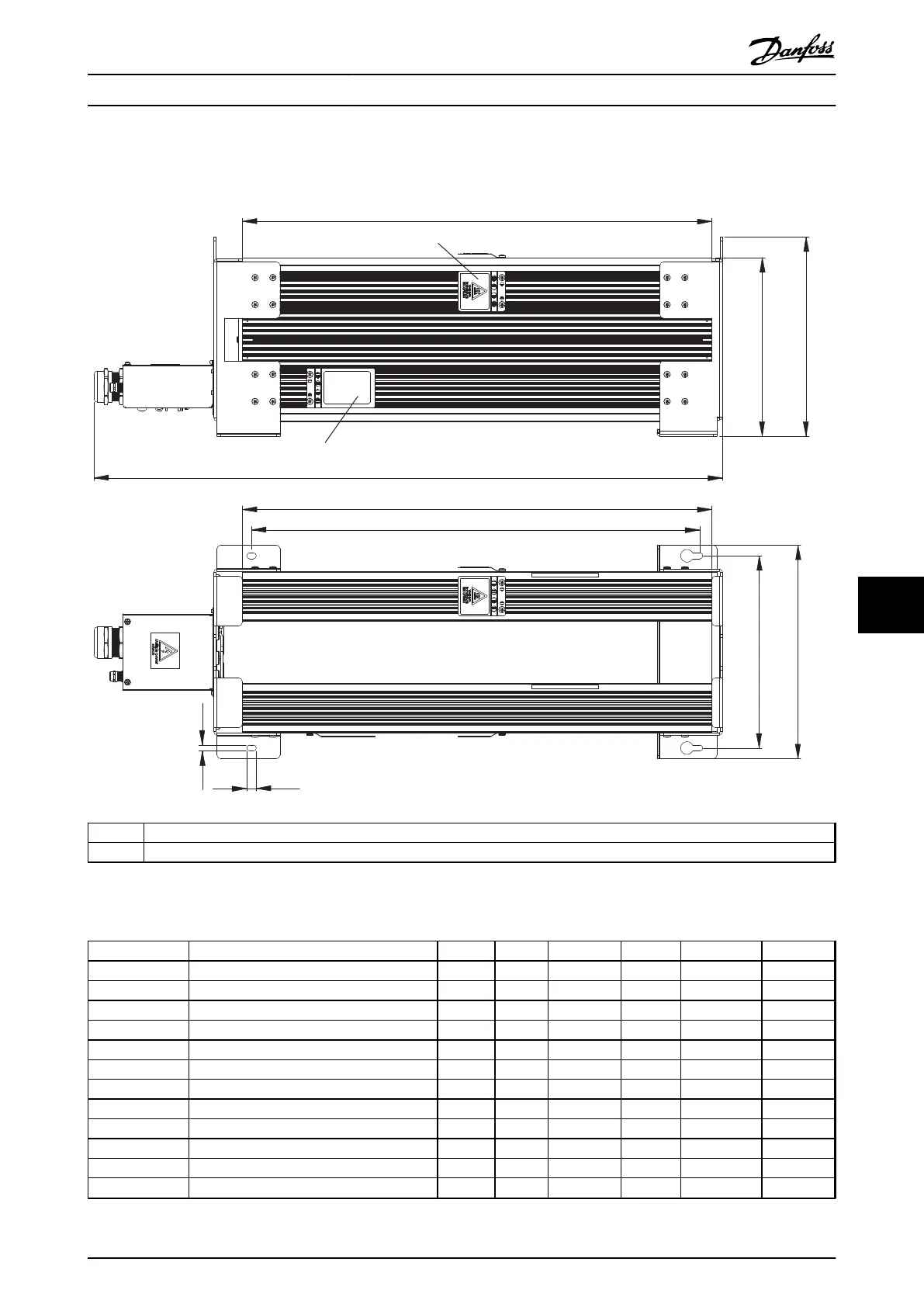

Illustration 9.79 IP21, Side View and Top View
Danfoss P/N
Typecode
Ω
L±2 mm L±0.08 in L1±2 mm L1±0.04 in
Weight [kg]
175U3051 MCE101A15R5P3K50E21TAW 15.5 560 22.05 530 20.87 25.5
175U3057 MCE101A13R5P4K20E21TAW 13.5 660 25.98 630 24.80 29
175U3063 MCE101A11R0P5K50E21TAW 11 760 29.92 730 28.74 32.5
175U3065 MCE101A9R50P4K20E21TAW 9.5 660 25.98 630 24.80 29
175U3070 MCE101A7R00P5K50E21TAW 7 760 29.92 730 28.74 32.5
175U3134 MCE101A105RP4K20E21TAW 105 660 25.98 630 24.80 29
175U3142 MCE101A72R0P4K20E21TAW 72 660 25.98 630 24.80 29
175U3148 MCE101A52R0P5K50E21TAW 52 760 29.92 730 28.74 32.5
175U3156 MCE101A38R0P5K50E21TAW 38 760 29.92 730 28.74 32.5
175U3174 MCE101A13R0P3K50E21TAW 13 560 22.05 530 20.87 25.5
175U3176 MCE101A9R00P5K50E21TAW 9 760 29.92 730 28.74 32.5
175U3178 MCE101A5R70P5K50E21TAW 5.7 760 29.92 730 28.74 32.5
Specifications Design Guide
MG90O202 Danfoss A/S © Rev. 05/2014 All rights reserved. 119
9 9
