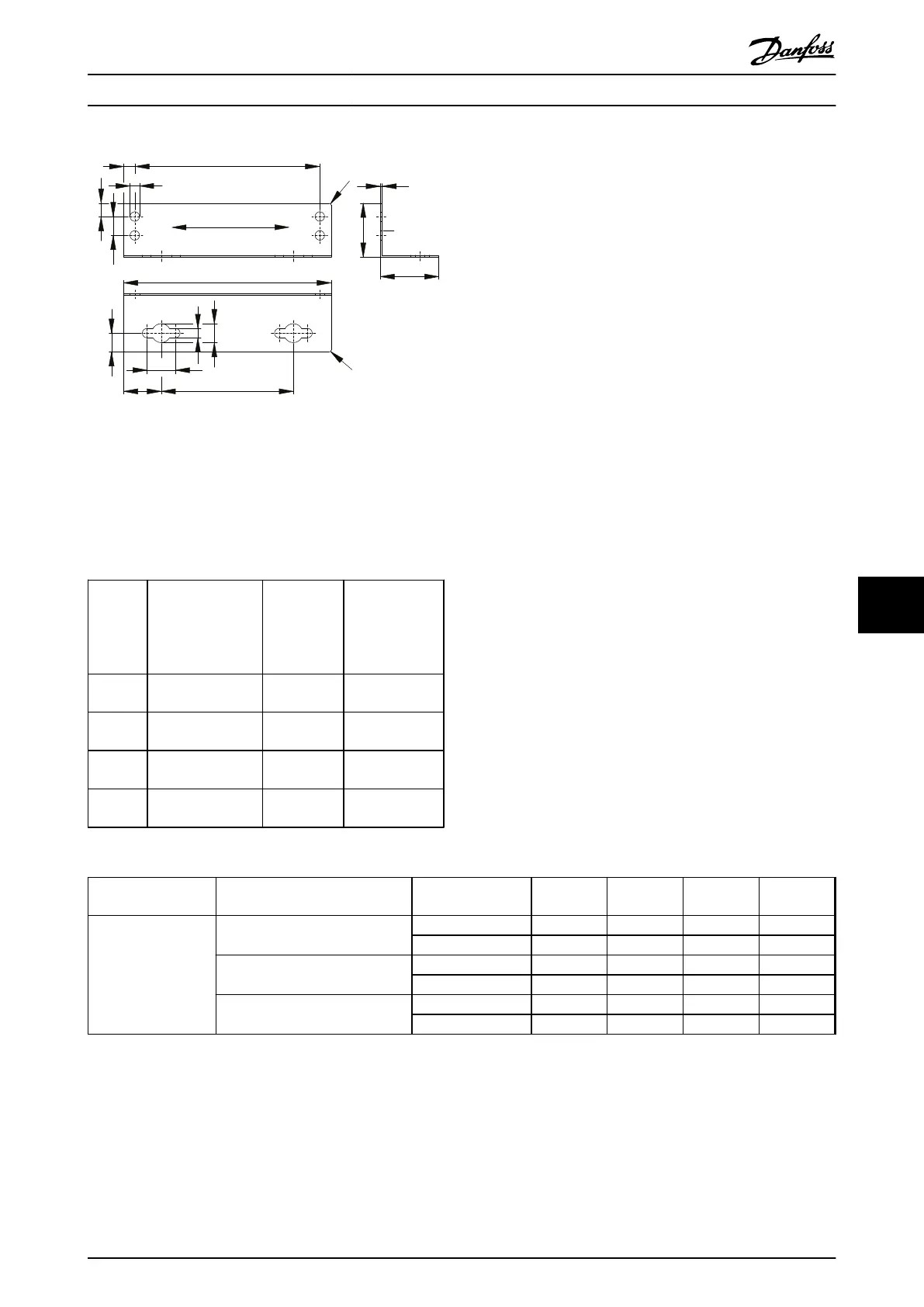

Illustration 9.113 L Profile Bracket 175U0011
9.8.2
Mounting Brackets: Footprint
Footprint mounting brackets are compatible with the brake resistor types:
•
Flat-pack only
P/N Compatible brake
resistor
Compatible
frequency
converter
enclosure
size
Footprint
drawing
reference
175U0085
1x100 W flat-pack
1x200 W flat-pack
A2
Illustration 9.115
175U0087
2x100 W flat-pack
2x200 W flat-pack
A2
Illustration 9.116
175U0086
2x100 W flat-pack
2x200 W flat-pack
A3
Illustration 9.117
175U0088
1x100 W flat-pack
1x200 W flat-pack
A3
Illustration 9.118
Table 9.45 Footprint Mounting Bracket Compatibility
Mounting bracket P/N
Footprint mounting bracket
175U0085 175U0086 175U0087 175U0088
Screw set Distance bolt
number supplied - 4 4 -
size - M4x32 M4x32 -
Screw
number supplied 4 4 4 4
size M4x20 M4x20 M4x20 M4x20
Locking washer
number supplied 4 4 4 4
size S4 S4 S4 S4
Table 9.46 Accessories Supplied
