Datalogic PowerScan 7000 2D Product Reference Guide

Plug and Play
Product Reference Guide 1-5
3. Plug the serial connector into the serial port on your computer.
Tighten the two screws to secure the connector to the port.
4. If the terminal does not support Power Off the Terminal (P.O.T.)
connections plug the power supply into the host connector and the
AC outlet.
5. Once the imager has been fully connected, power up the com-
puter.
All communication parameters between the imager and terminal must
match for correct data transfer through the serial port using RS-232 pro-
tocol. Scanning the RS-232 interface bar code, programs the imager for
an RS-232 interface at 115,200 baud, parity–none, 8 data bits, 1 stop
bit, and adds a suffix of a CR LF.
Connecting the imager with USB
An imager can be connected to the USB port of a computer.
1. Connect the appropriate interface cable to the imager and to the
computer.
NOTE
This interface applies to USB compatible mod-
els only.

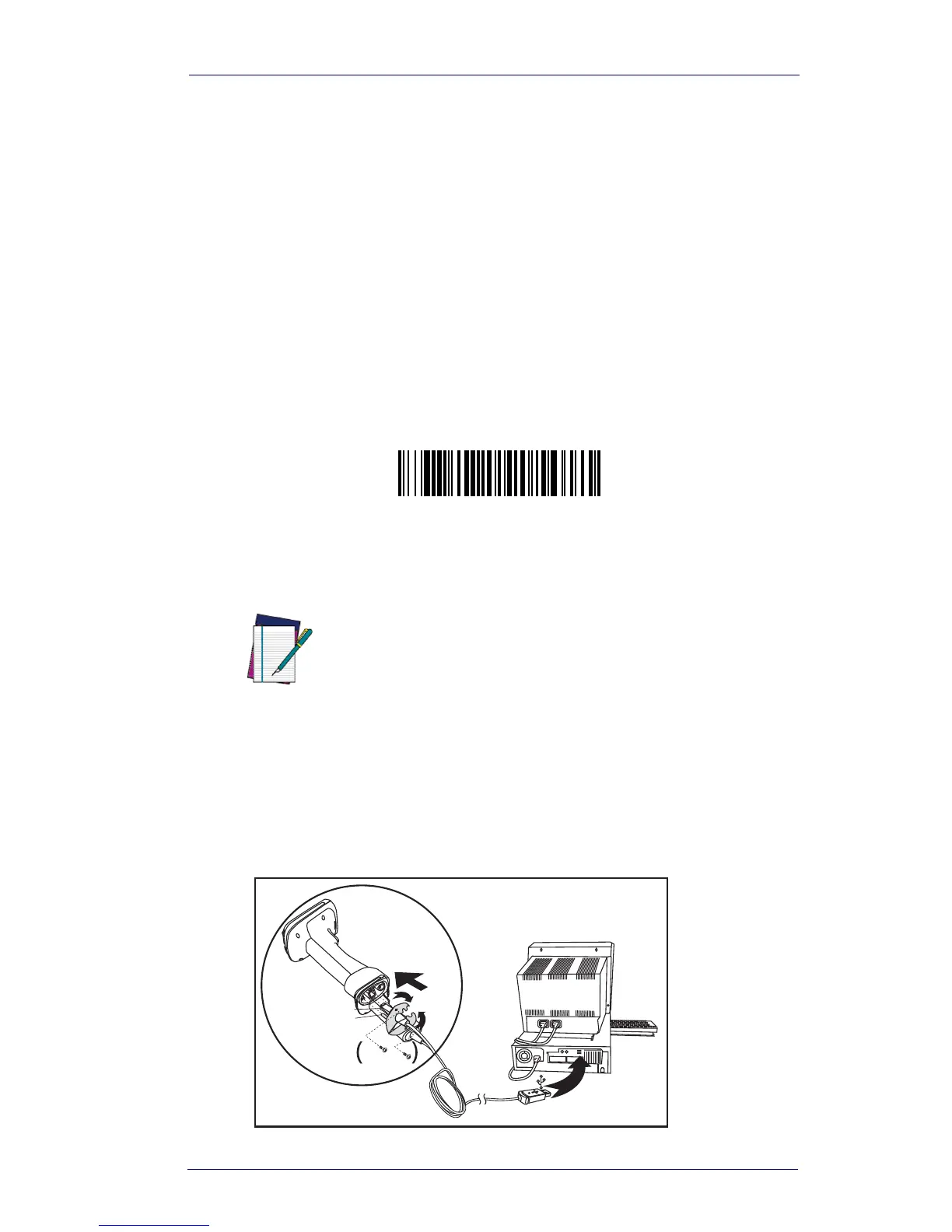

RS-232 Interface
U
S
B
Captive
Screws
Retainer Boss
Cable Connector
