Product Specifications
11-4 PowerScan
®
7000 2D

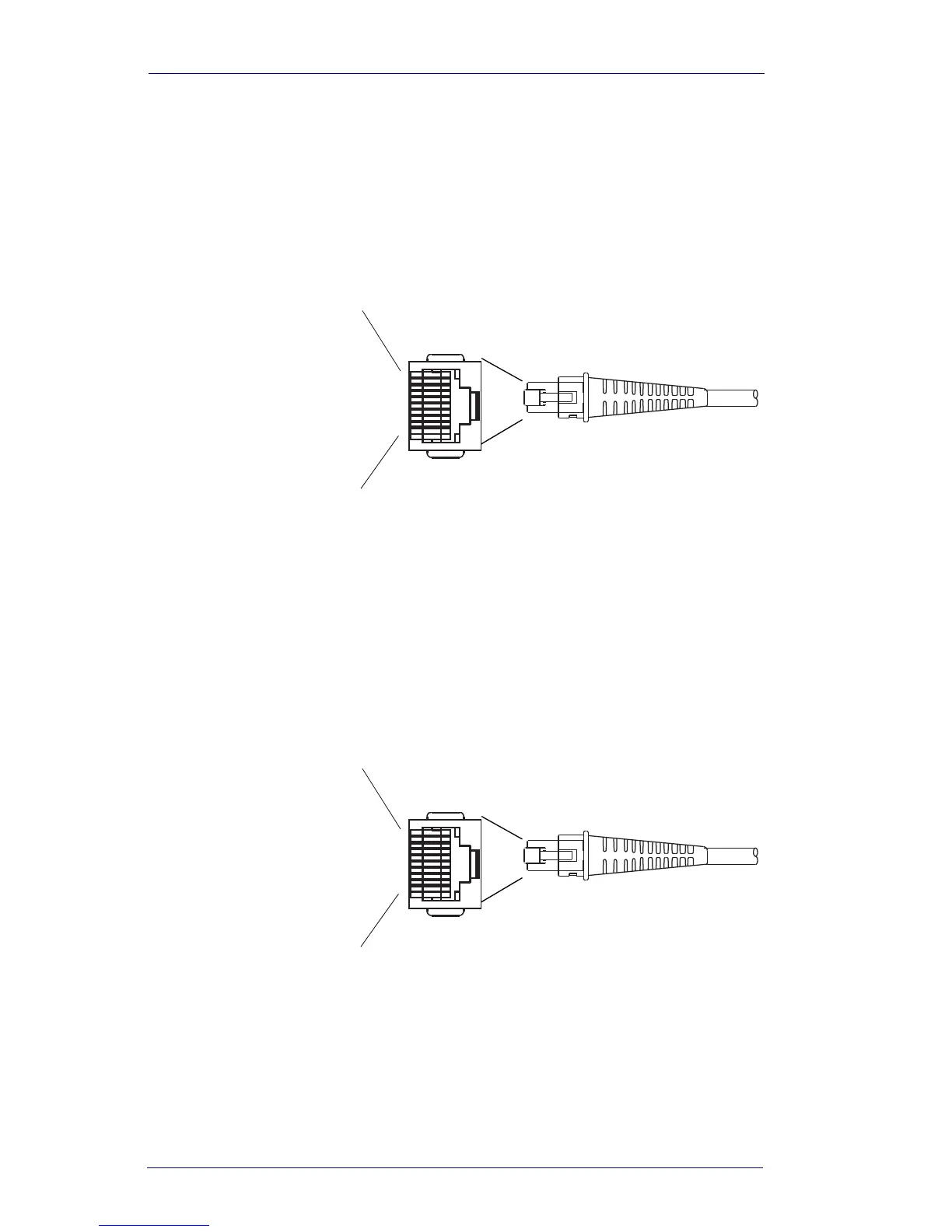

Standard Cable Pinouts
USB
UKBW
10 Pin Modular Plug
connects to the imager handle
1
2
3
4D-
5
6D+
7
8 VBUS_VIN
9GND
10 Cable Select
10 Pin Modular Plug
connects to the imager handle
1
2 KB Data
3 PC Clk
4 KB Clk
5
6 PC Data
7
8 VIN
9 GND
10 Cable select
