Dell P130G Service Manual

2. Remove the four screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
3. Lift the battery off the palm-rest and keyboard assembly.
Installing the 3-cell battery - UMA/discrete
Prerequisites
NOTE:
The battery type in your computer varies depending on the configuration ordered.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

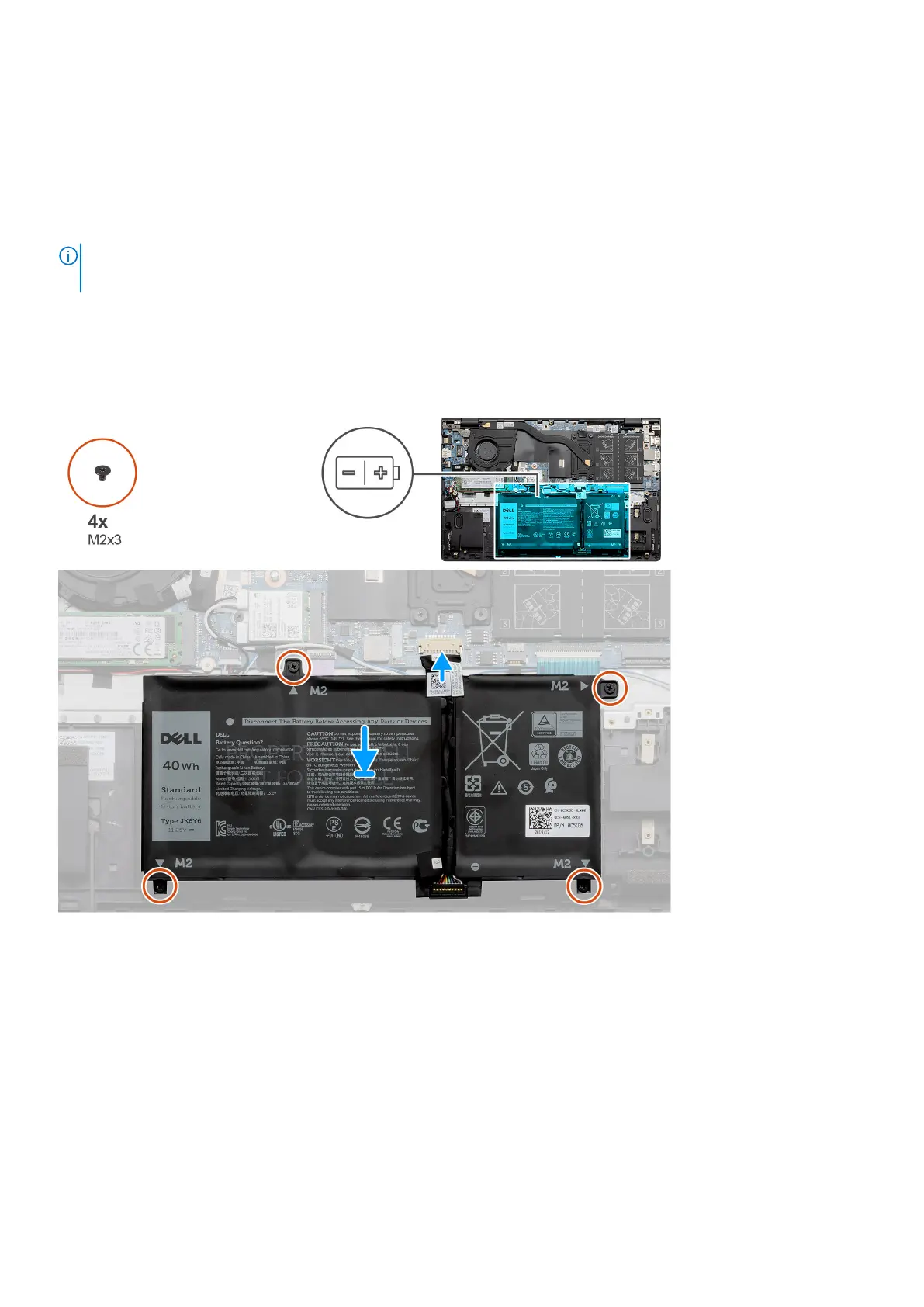

The figure indicates the location of the 3-cell battery in an UMA configuration and provides a visual representation of the
installation procedure.
Steps
1. Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on
the palm-rest and keyboard assembly.
2. Install the four screws (M2x3) that secure the battery to the system board and palm-rest and keyboard assembly.
3. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in after working inside your computer.
20
Disassembly and reassembly

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
