Dell P130G Service Manual

About this task

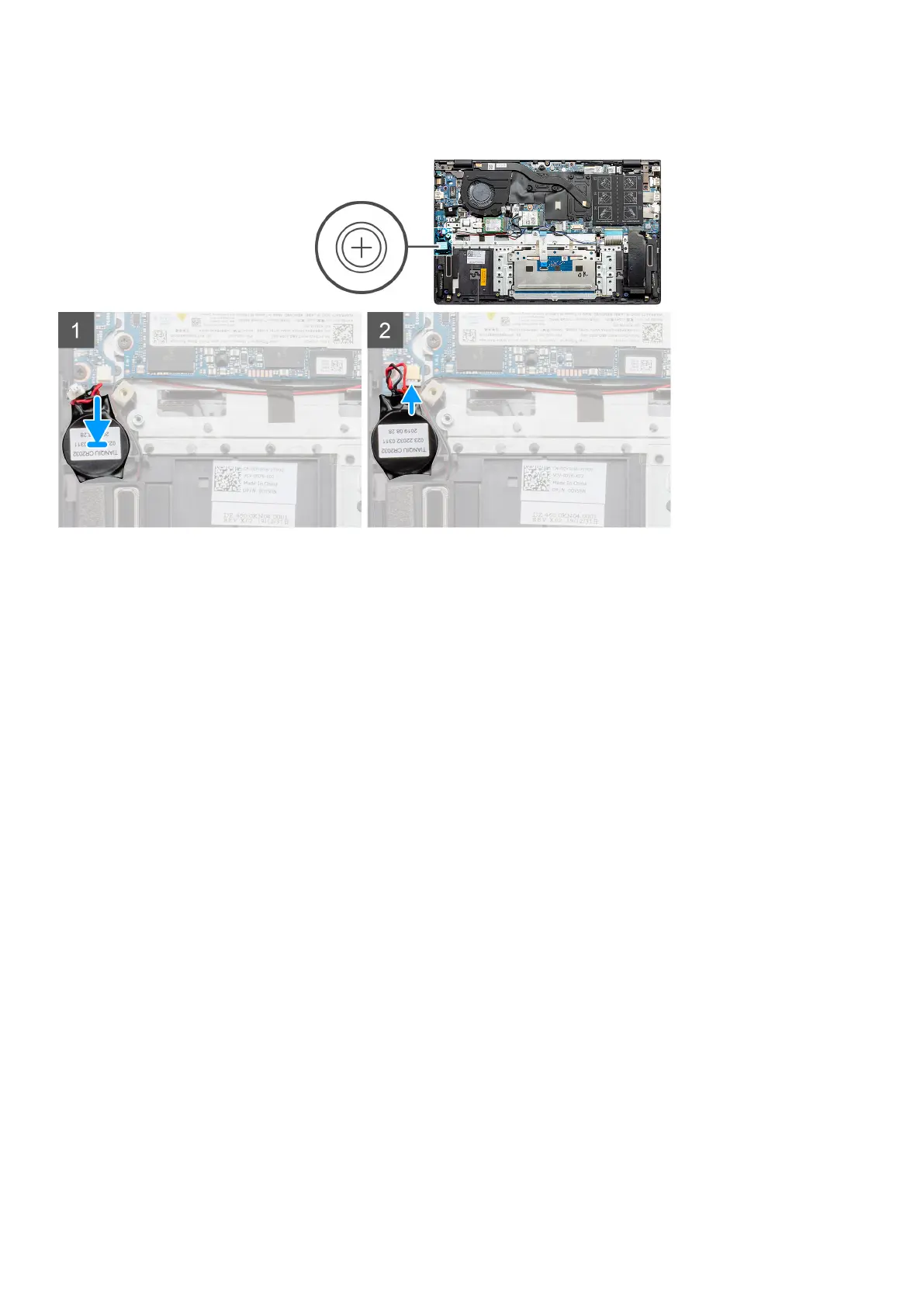

The figure indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.
Steps
1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly.
2. Route the coin-cell battery cable as illustrated and connect it to the I/O board.
Next steps
1. Install the battery (3-cell or 4-cell) based on the configuration.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
I/O board
Removing the I/O board - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery (3-cell or 4-cell) based on the configuration.
4. Remove the coin-cell battery.
About this task
The figure indicates the location of the I/O board and provides a visual representation of the removal procedure.
56
Disassembly and reassembly
