Dell P130G Service Manual

Steps

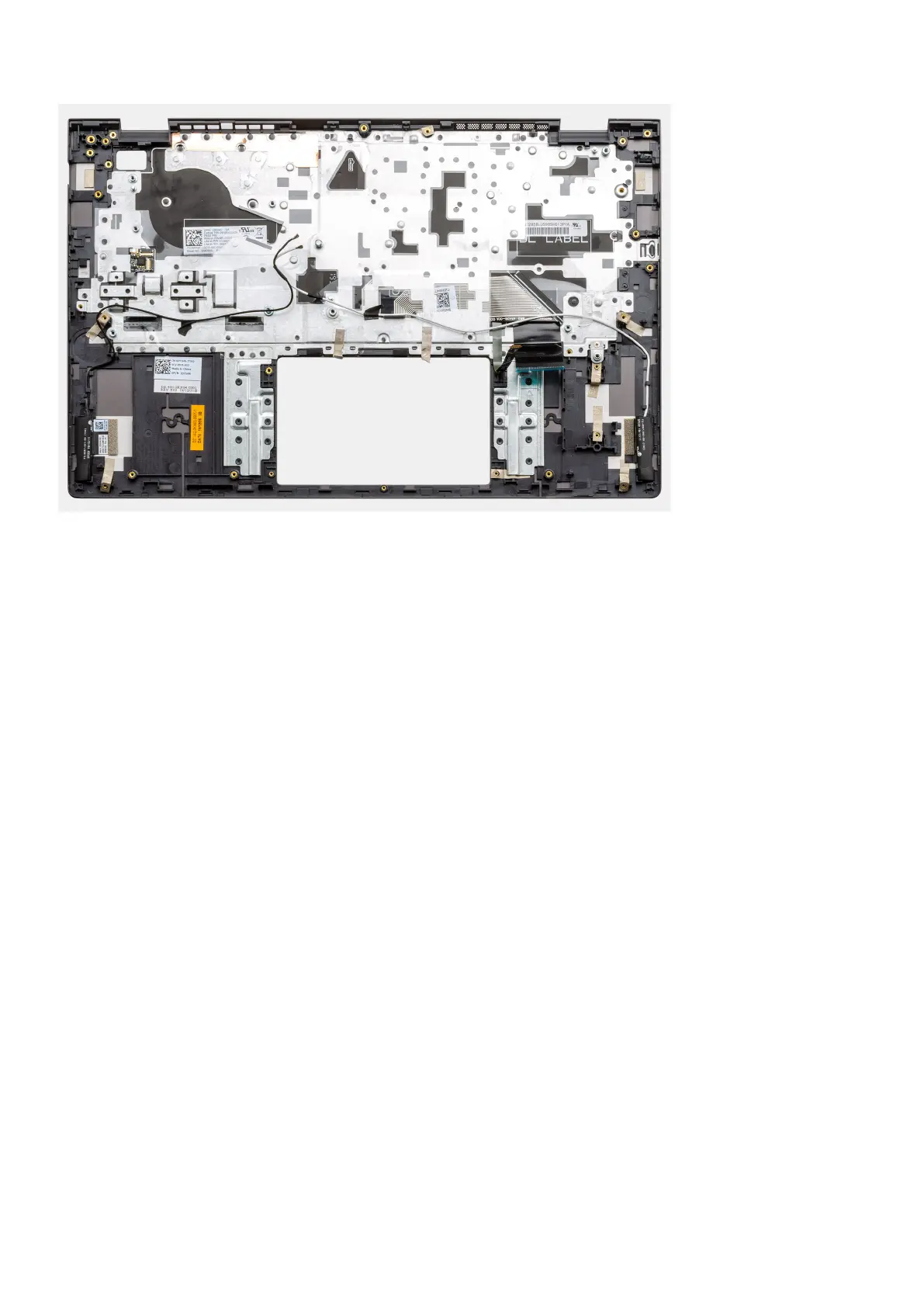

Place the palm-rest and keyboard assembly on a flat surface.
Next steps
1. Install the system board.
2. Install the touchpad.
3. Install the DC-in port.
4. Install the power button with fingerprint reader.
5. Install the coin-cell battery.
6. Install the heat sink.
7. Install the memory module.
8. Install the I/O board.
9. Install the display assembly.
10. Install the speakers (3-cell battery configuration or 4-cell battery configuration).
11. Install the system fan.
12. Install the M.2 2230 SSD card.
13. Install the M.2 2280 SSD card.
14. Install the WLAN card.
15. Install the battery (3-cell or 4-cell) based on the configuration.
16. Install the base cover.
17. Follow the procedure in after working inside your computer.
Removing the palm-rest and keyboard assembly - discrete
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery (3-cell or 4-cell).
4. Remove the WLAN card.
5. Remove the memory module.
6. Remove the SSD-1 (M.2 2280 SSD or M.2 2230 SSD).
7. Remove the SSD-2.
Disassembly and reassembly
93

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
