Steps

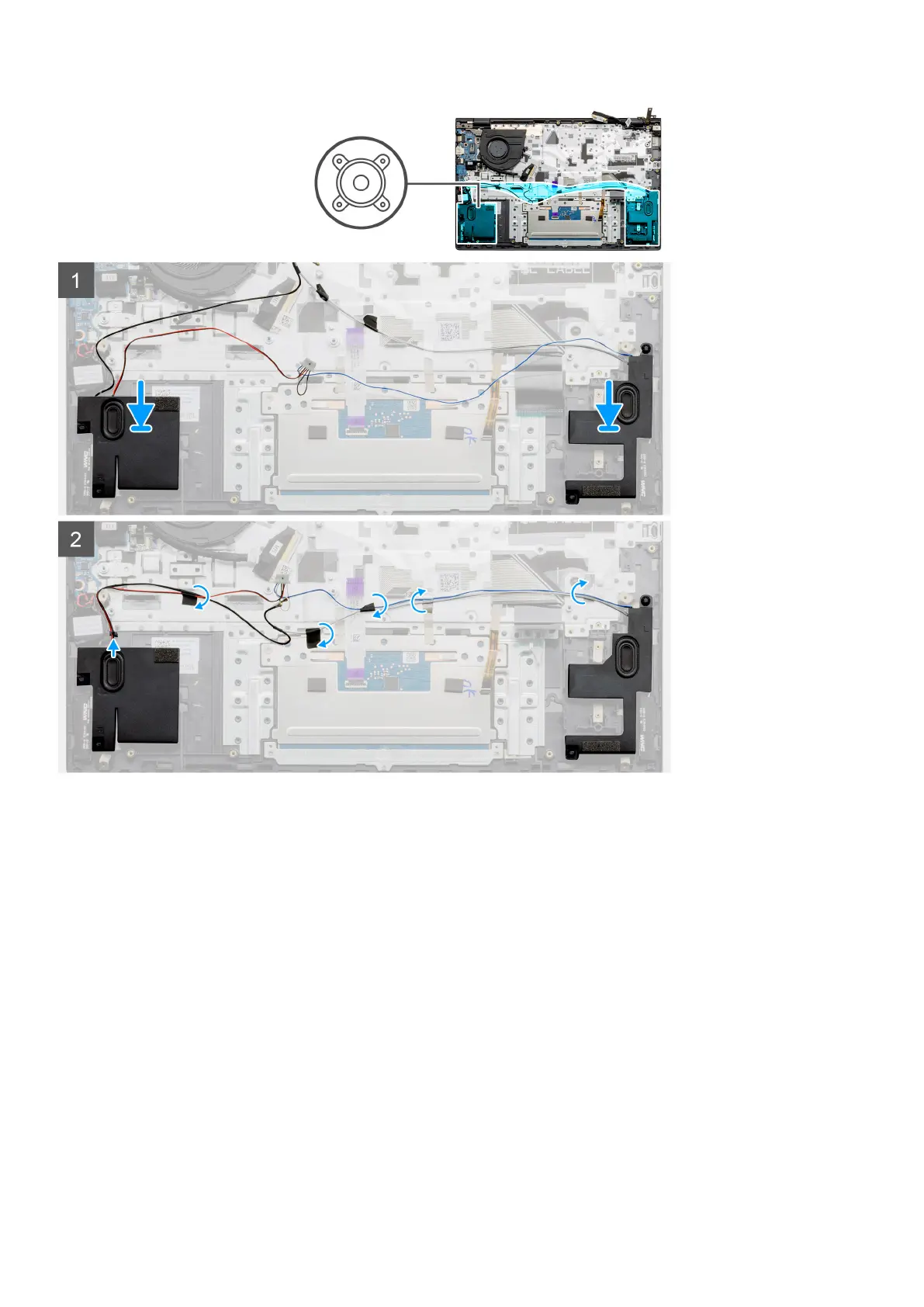

1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the system board.
Next steps
1. Install the system board (UMA or discrete).
2. Install the battery (3-cell or 4-cell) based on the configuration.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
Removing the speakers (in 4-cell battery configuration)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery (3-cell or 4-cell).
4. Remove the system board (UMA or discrete).
Disassembly and reassembly
43
