About this task

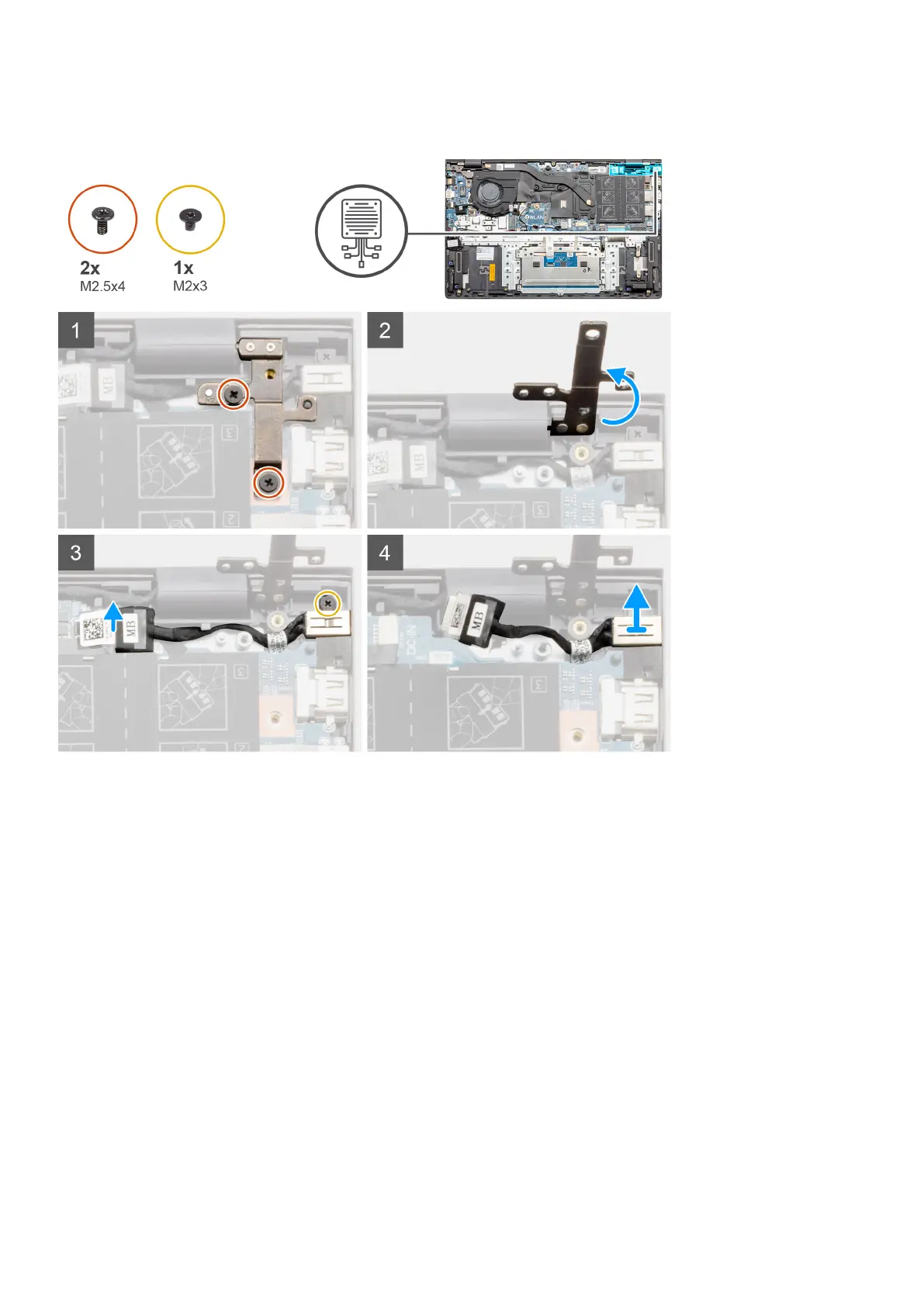

The figure indicates the location of the DC-in and provides a visual representation of the removal procedure.
Steps
1. Locate the DC-in port on your computer.
2. Remove the two (M2.5x4) screws, and lift the metal hinge.
3. Remove the single screw (M2x3) screw and lift the DC-in port.
4. Peel the transparent sticker.
5. Disconnect the DC-in cable from the system board.
6. Lift the DC-in port off the palm-rest and keyboard assembly.
Installing the DC-in port - discrete
About this task
The figure indicates the location of the DC-in and provides a visual representation of the removal procedure.
Disassembly and reassembly
67
