Dell P130G Service Manual

Steps

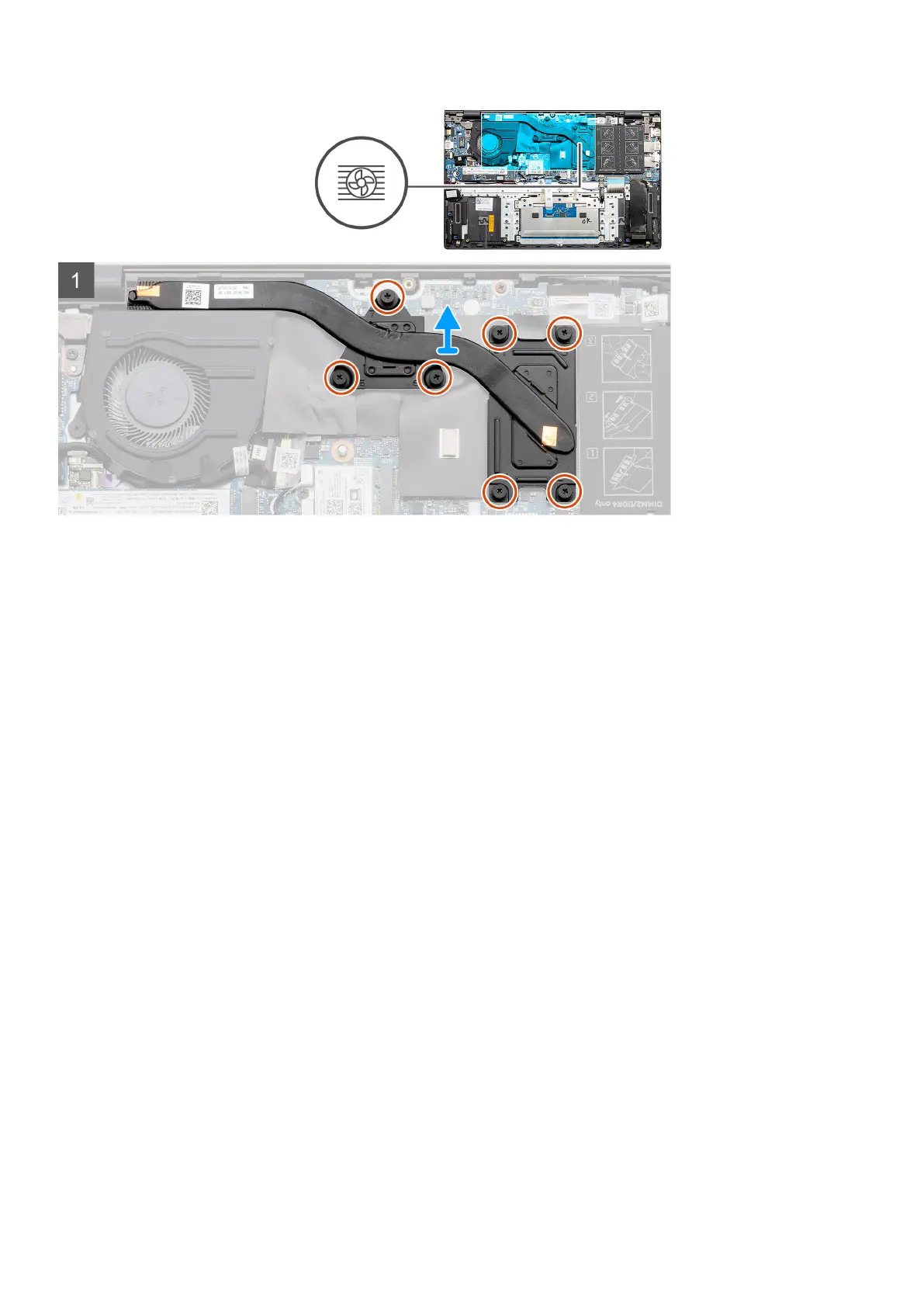

1. In sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to the system
board.
2. Lift and remove the heat sink off the system board.
Installing the heat sink - discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the heat sink and provides a visual representation of the installation procedure.
52
Disassembly and reassembly

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
