Dell P130G Service Manual

Steps

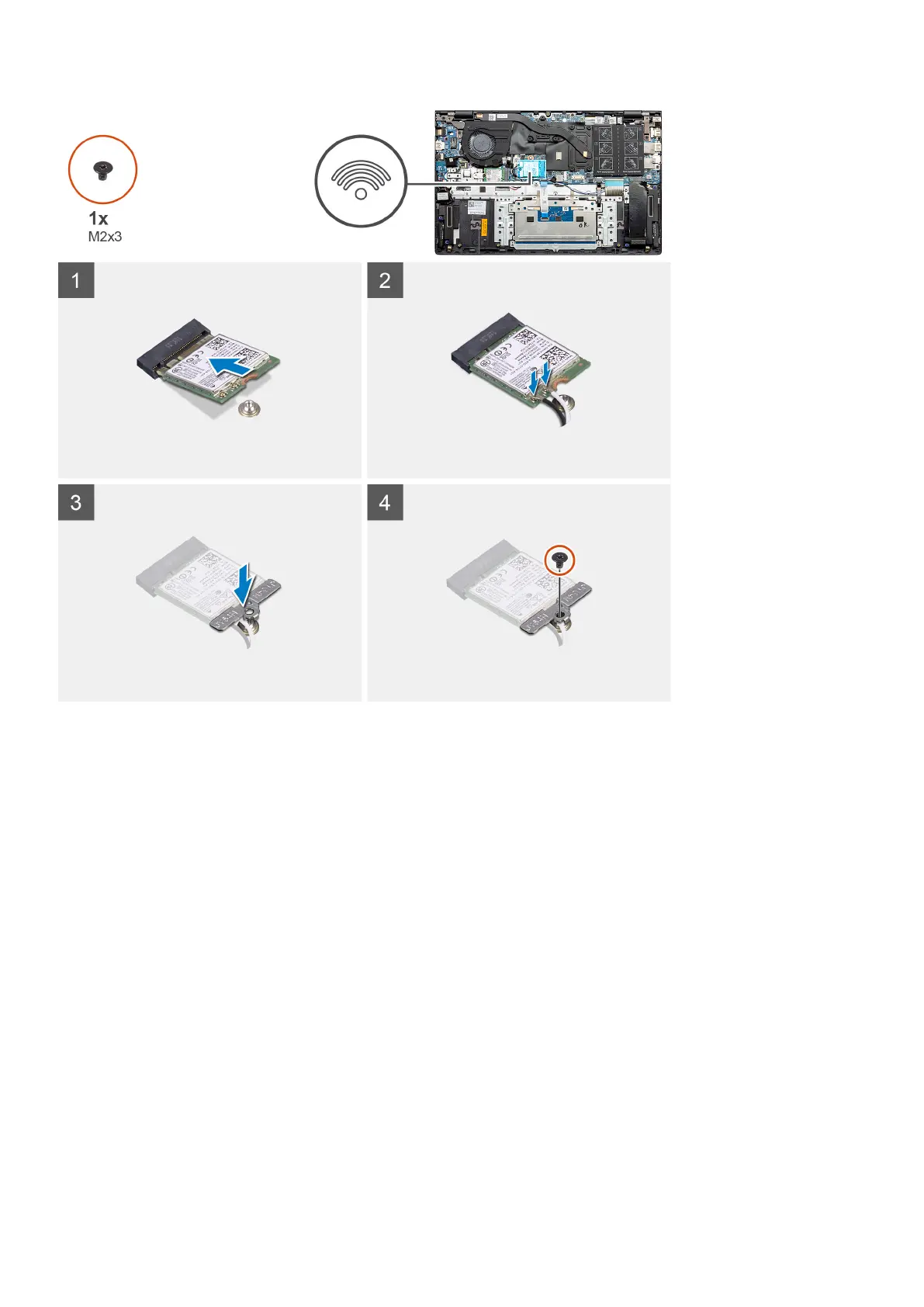

1. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN
card slot.
2. Connect the antenna cables to the WLAN card.
3. Align and place the WLAN card bracket on the WLAN card.
4. Replace the screw (M2x3) to secure the WLAN card bracket to the WLAN card.
Next steps
1. Install the battery (3-cell or 4-cell) based on the configuration.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Memory modules
Removing the memory modules - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery (3-cell or 4-cell).
26
Disassembly and reassembly

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
