Dell P130G Service Manual

Next steps
1. Install the battery (3-cell or 4-cell) based on the configuration.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Removing the system fan - discrete
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery (3-cell or 4-cell).
About this task

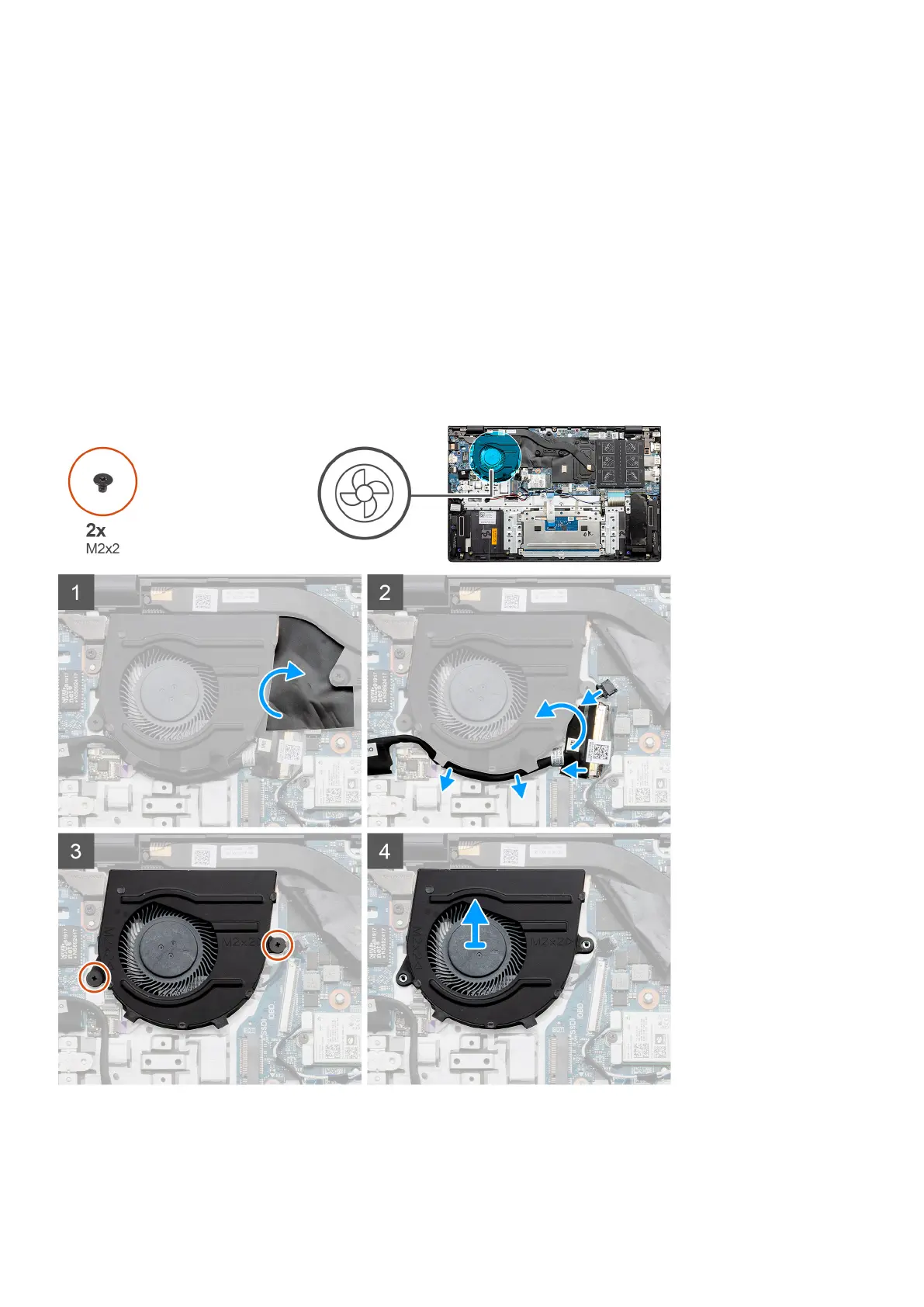

The figure indicates the location of the system fan and provides a visual representation of the removal procedure.
Steps
1. Lift the mylar cover.
2. Disconnect the system fan cable from the system board.
48
Disassembly and reassembly

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
