Dell P130G Service Manual

Next steps
1. Install the coin-cell battery.
2. Install the battery (3-cell or 4-cell) based on the configuration.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
Power button with fingerprint reader (optional)
Removing the power button and optional fingerprint reader - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery (3-cell or 4-cell).
4. Remove the system fan.
5. Remove the M.2 2280 SSD or M.2 2230 SSD.
6. Remove the I/O board.
7. Remove the coin-cell battery.
About this task

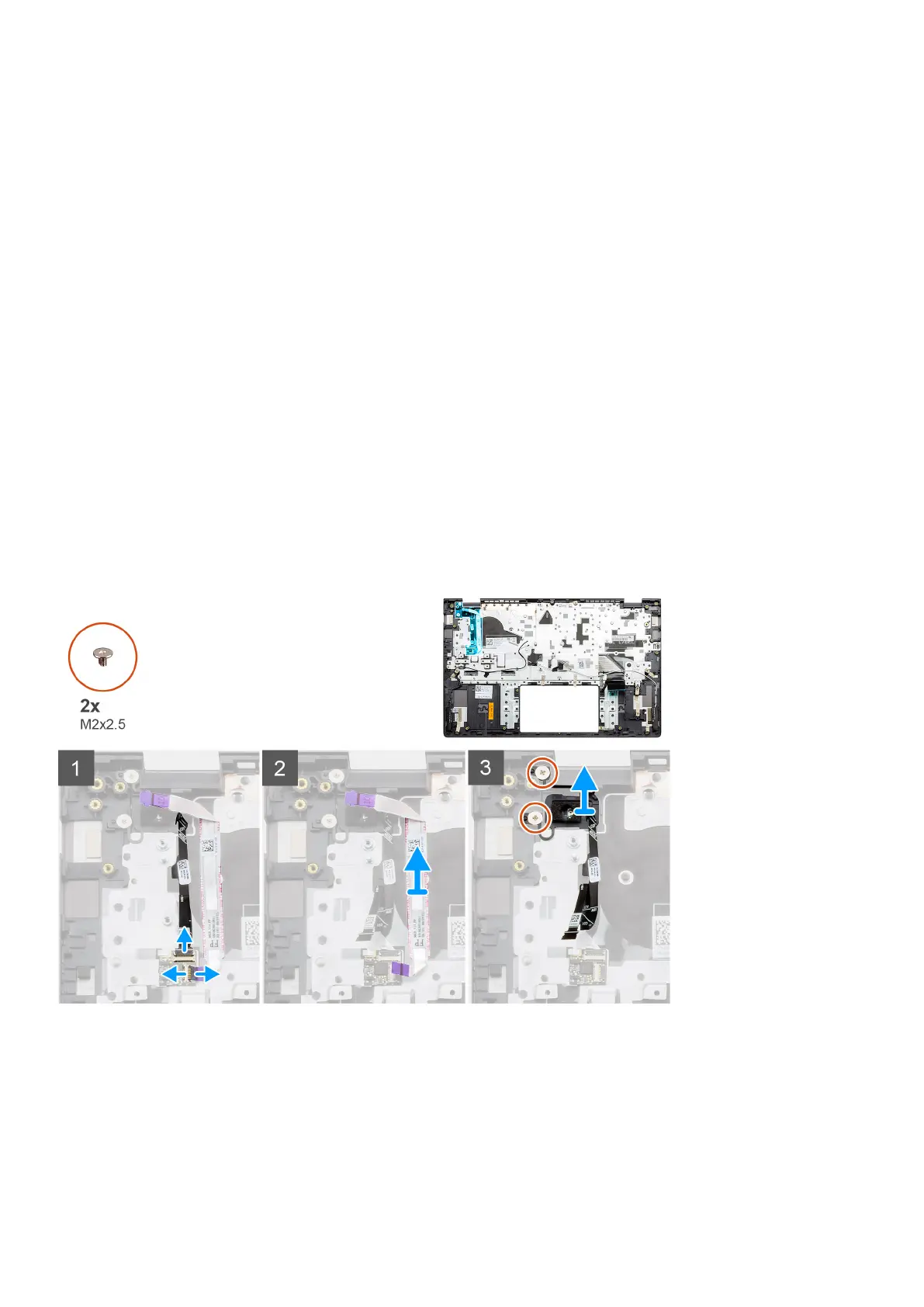

The figure indicates the location of the power button with optional fingerprint reader and provides a visual representation of the
removal procedure.
Steps
1. Unplug the fingerprint reader cable from the connector on the palm-rest and keyboard assembly.
2. Lift the latch, and unplug the I/O cable from the connector on the palm-rest and keyboard assembly.
3. Remove the I/O cable from the palm-rest and keyboard assembly.
4. Remove the two screws (M2x2.5) that secure the power button with optional fingerprint reader to the palm-rest and
keyboard assembly.
Disassembly and reassembly
61

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
