Dell P130G Service Manual

2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Display assembly
Removing the display assembly - UMA
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery (3-cell or 4-cell).
4. Remove the WLAN card.
About this task

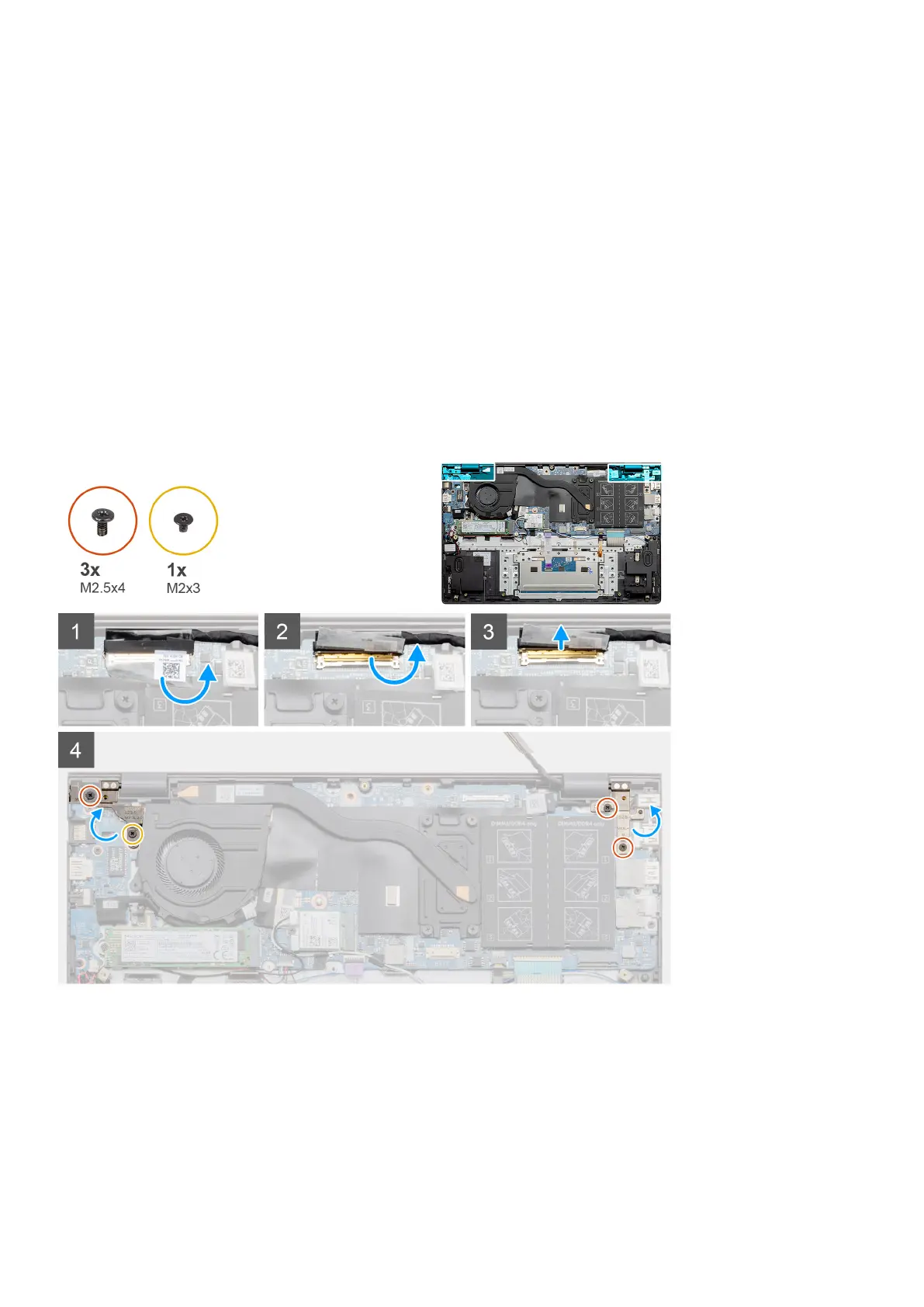

The figure indicates the location of the display assembly and provides a visual representation of the removal procedure.
Disassembly and reassembly 73

Dell P130G Specifications

General

Model	Dell P130G
Category	Laptop
RAM	8GB DDR4
Storage	256GB SSD
Display	13.3-inch FHD (1920 x 1080)
Operating System	Windows 10
Battery	3-Cell 42Whr Battery
