Steps
1 Loosen the four captive screws on the base cover.
2 Remove the six screws (M2x7) that secure the base cover to the palm-rest and keyboard assembly.
3 Using a plastic scribe, moving in an anti-clockwise direction beginning from the top left corner, pry the base cover.
4 Lift the base cover o the palm-rest and keyboard assembly.
Identifier GUID-058BB0A4-5B2E-48AF-BAD8-351923AD90B5
Status Released
Installing the base cover
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

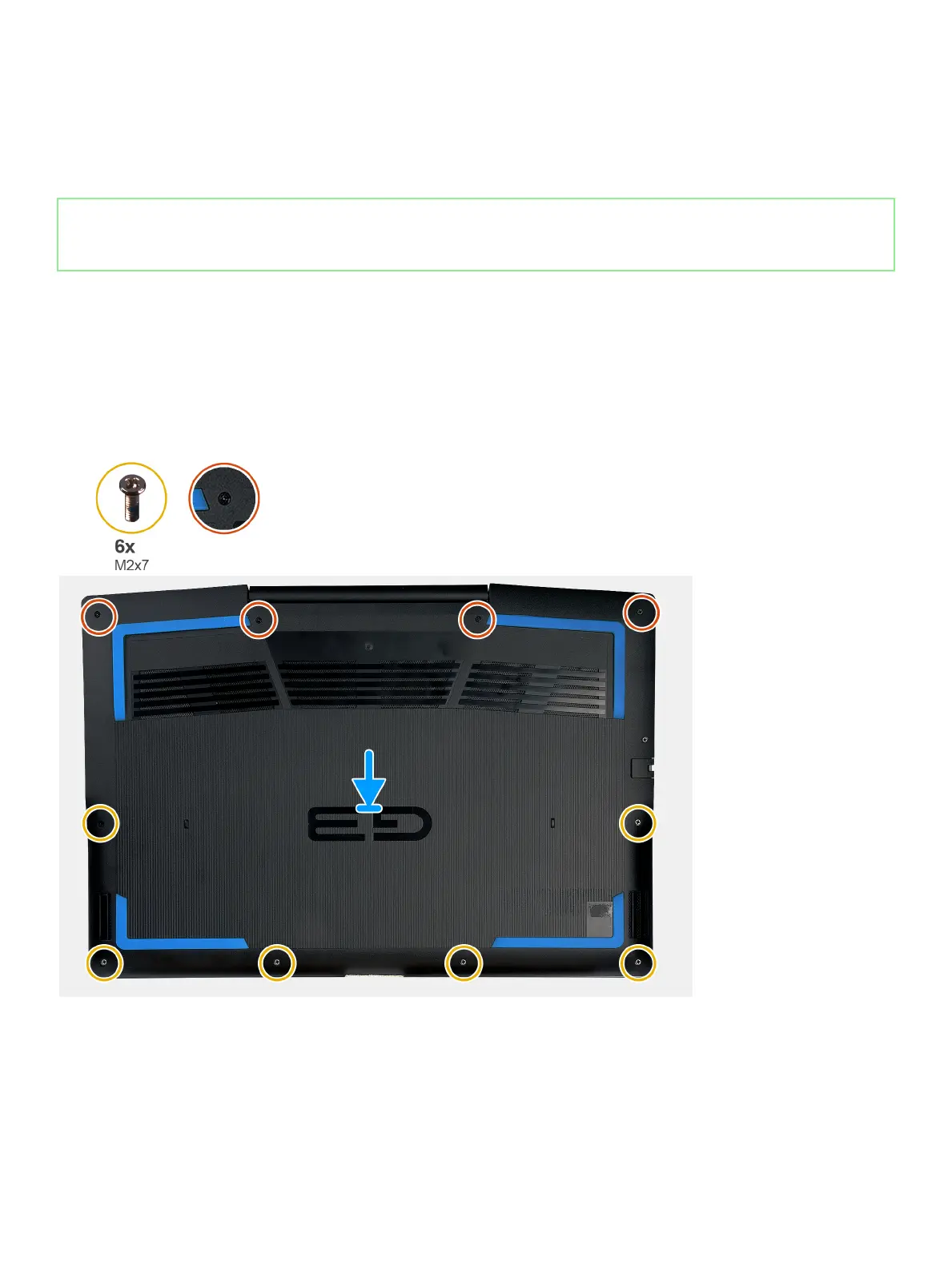

The following image indicates the location of the base cover and provides a visual representation of the installation procedure.
Steps
1 Place the base cover on the palm-rest and keyboard assembly, and snap the base cover into place.
2 Replace the six screws (M2x7) that secure the base cover to the palm-rest and keyboard assembly.
3 Tighten the four captive screws that secure the base cover to the palm-rest and keyboard assembly.
