About this task

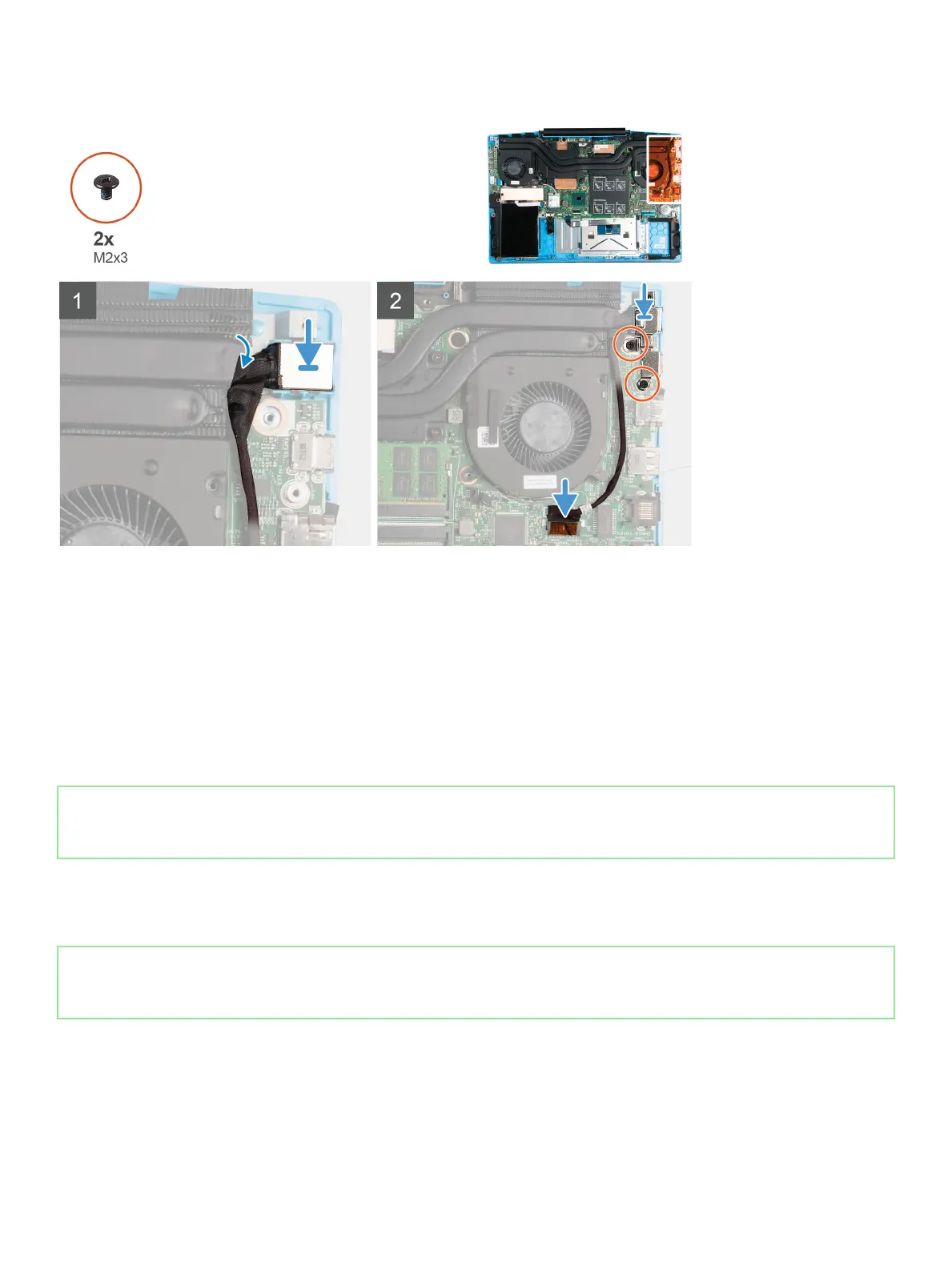

The following image indicates the location of the power-adapter port and provides a visual representation of the installation procedure.
Steps
1 Place the power-adapter port into the slot and adhere the power-adapter port cable on the palm rest and keyboard assembly.
2 Connect the power-adapter port cable to the system board.
3 Align and place the power-adapter port bracket over the power-adapter port.
4 Replace the two screws (M2x3) to secure the power-adapter port bracket to the system board.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Identifier GUID-A4EB1B18-E790-4DC7-A6B0-85015144D8CE
Status Released
I/O board
Identifier GUID-59DA147E-C1D2-4060-8A28-765A287FF639
Status Released
Removing the I/O board
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
40
Removing and installing components
To Next Page
