Steps
1 In the reverse sequential order (8>7>6>5>4>3>2>1), loosen the eight captive screws that secure the heat sink to the system board.
2 Peel the tape that secures the heat sink to the system board.
3 Lift the heat sink oî the system board.
Identifier GUID-1D068D1E-AE28-46D4-A78E-FD694CD80609
Status Released
Installing the heat sink
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

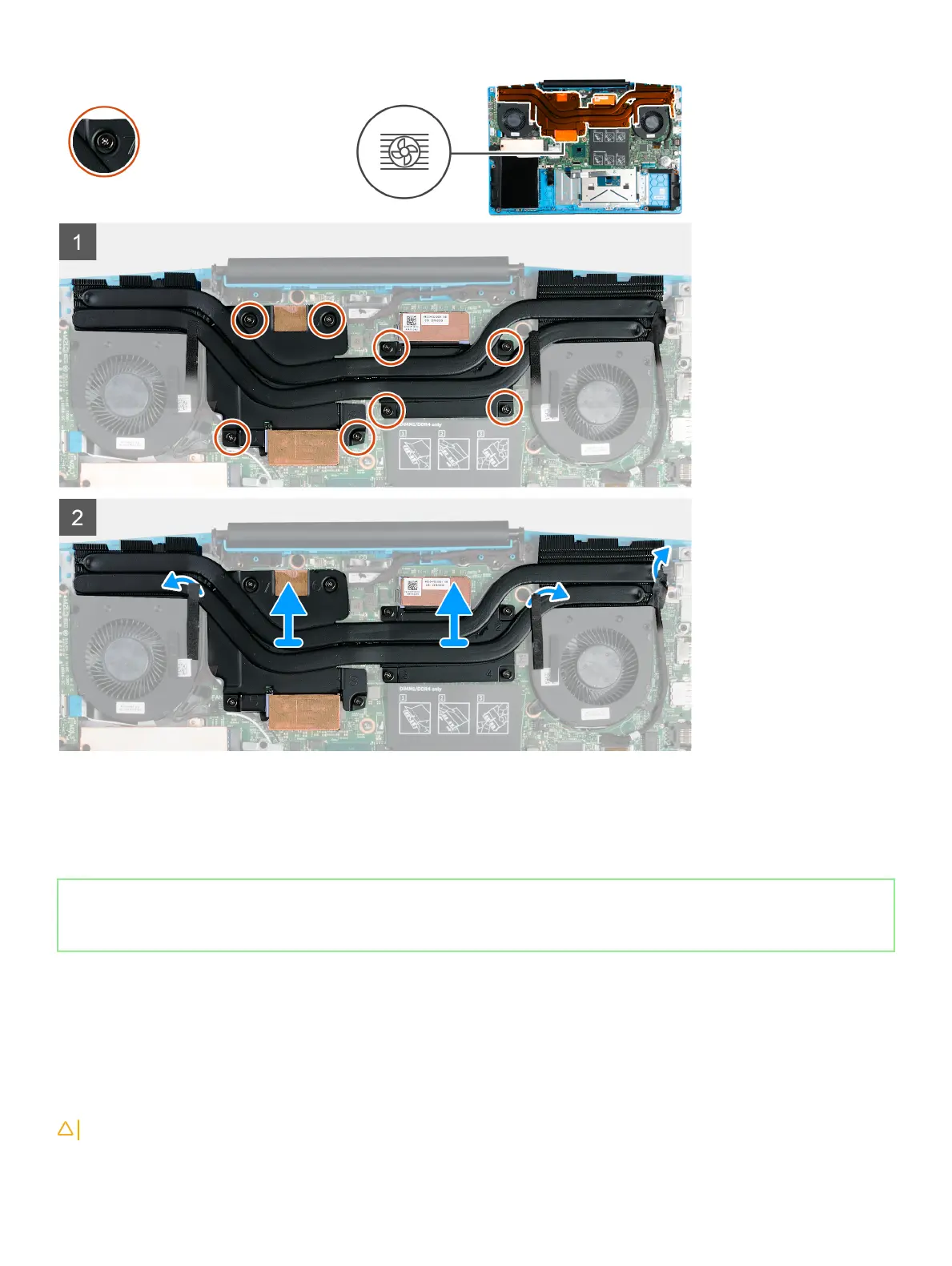

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
CAUTION
: Incorrect alignment of the heat sink can damage the system board and processor.
