2 Remove the base cover.
3 Remove the battery.
About this task

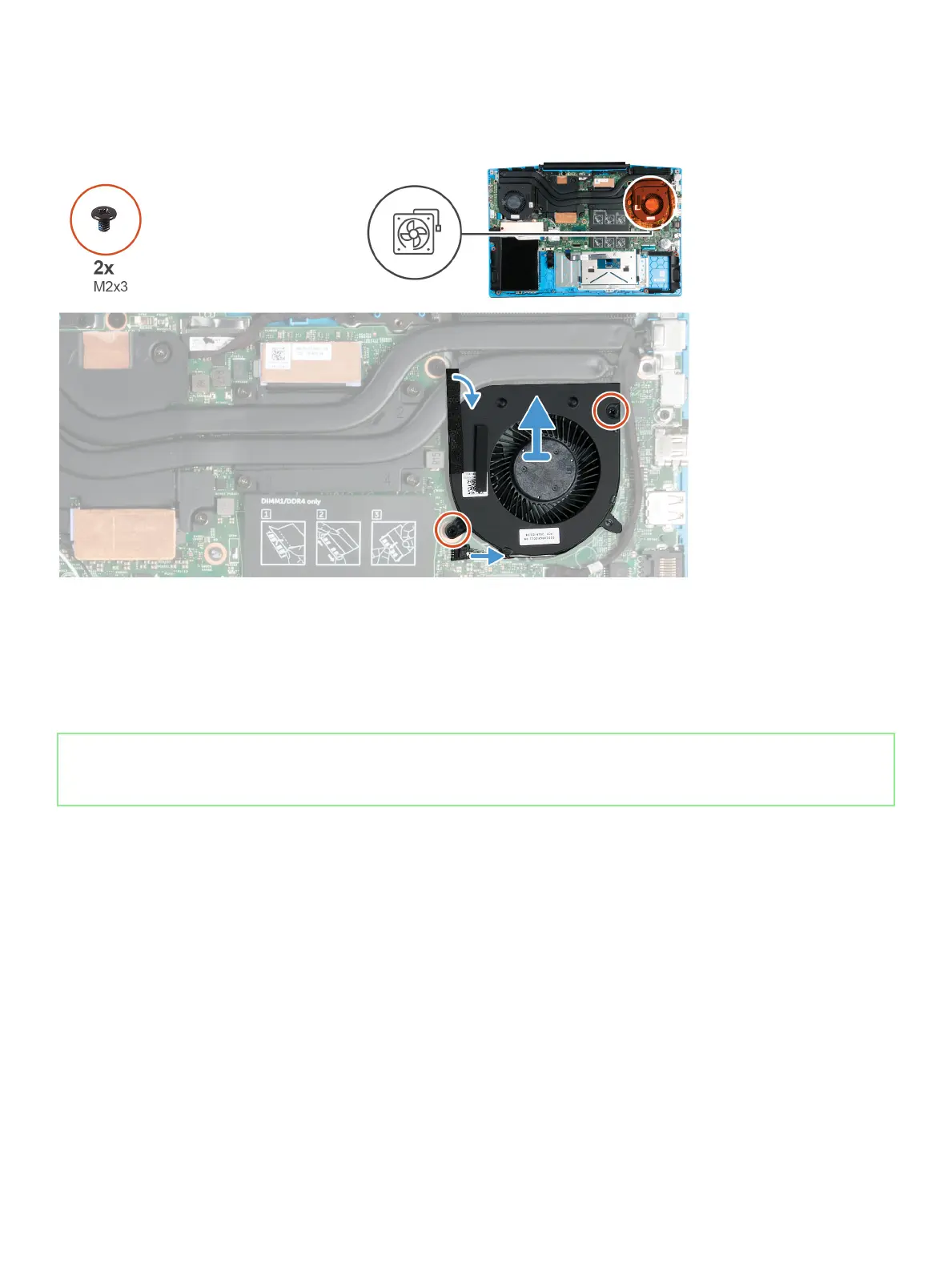

The following image indicates the location of the right fan and provides a visual representation of the installation procedure.
Steps
1 Disconnect the right-fan cable from the system board.
2 Peel the tape that secures the right fan to the system board.
3 Remove the two (M2x3) screws that secure the right fan to the system board.
4 Lift the right fan o the palm-rest and keyboard assembly.
Identifier GUID-15C9424A-CC0D-4018-86B2-5AB0174B24B7
Status Released
Installing the left fan
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the left fan and provides a visual representation of the installation procedure.
32
Removing and installing components
