Steps
1 Locate the solid-state drive/Intel Optane memory module on your computer.
2 Remove the screw (M2x3) that secures the solid-state drive/Intel Optane memory module to the system board.
3 Slide and lift the solid-state drive/Intel Optane memory module o the solid-state drive/Intel Optane memory module slot on the
system board.
Identifier GUID-07E87825-A9FD-42DE-8914-3A7060D7C836
Status Released
Installing the solid-state drive/Intel Optane memory module
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

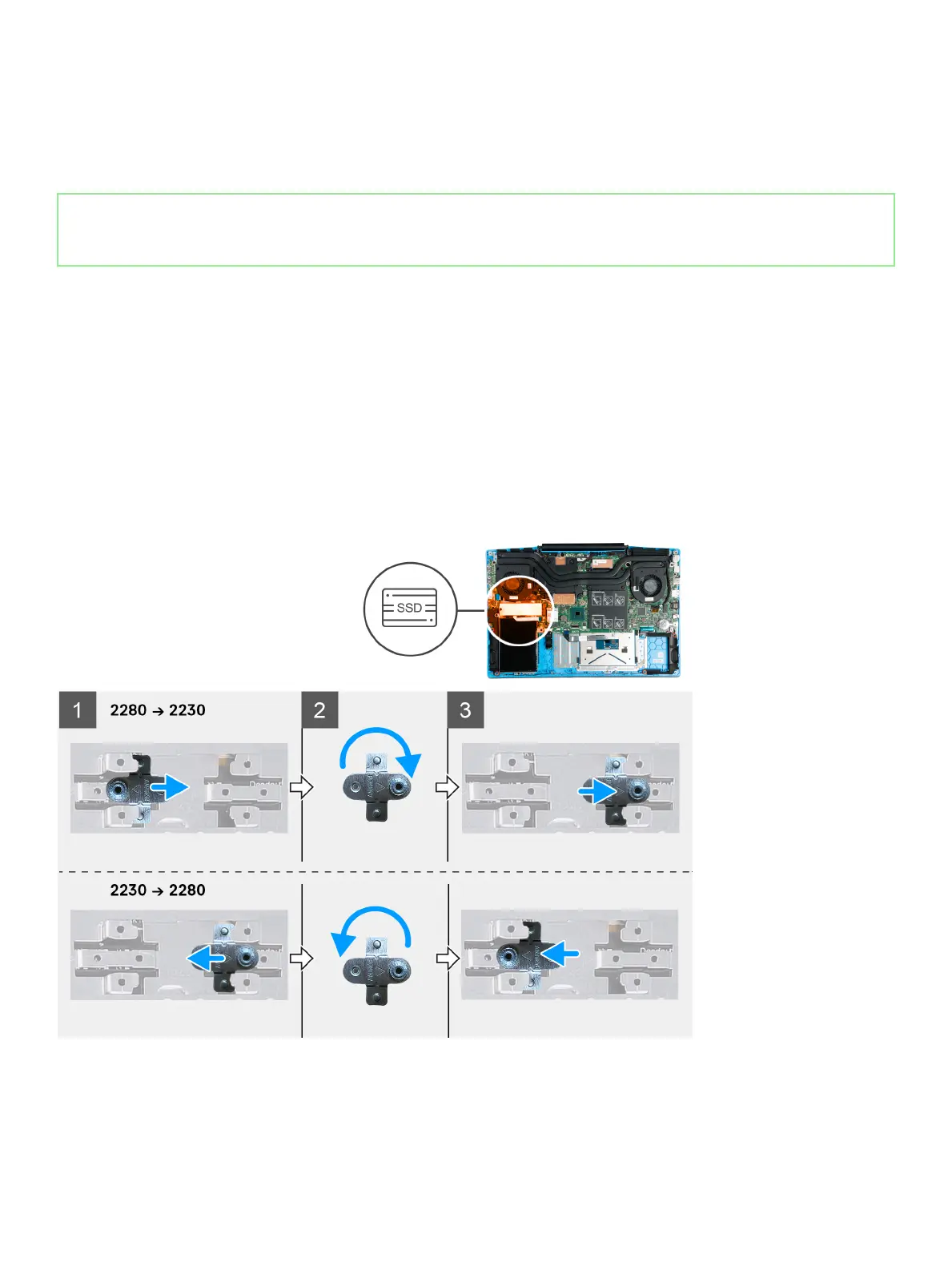

The following image indicates the location of the solid-state drive/Intel Optane memory module and provides a visual representation of the
installation procedure.
If you are installing a solid-state drive/Intel Optane memory module that is a dierent form factor from the original (2280 to 2230), then
rst remove the solid-state drive screw-mount bracket and rotate it 180 degrees before inserting it in the other solid-state drive screw-
mount bracket slot.
22
