Removing the power-adapter port
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the battery.
About this task

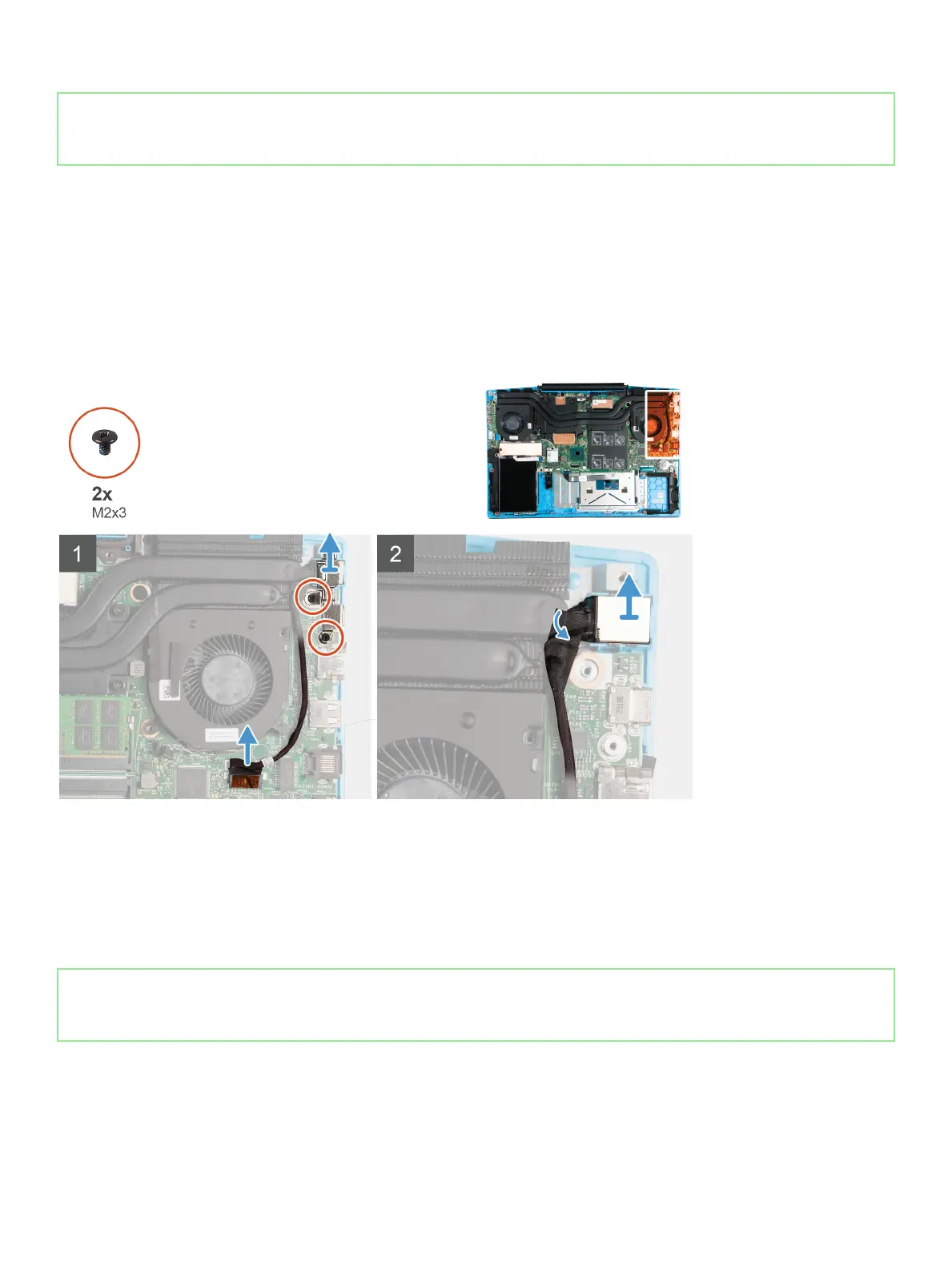

The following image indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
Steps
1 Remove the two screws (M2x3) on the power-adapter port bracket that secure the power-adapter port to the system board.
2 Remove the power-adapter port bracket from the system board.
3 Peel the power-adapter port cable from the heat sink.
4 Disconnect the power-adapter port cable from the system board.
5 Lift the power-adapter port, along with its cable, o the palm-rest and keyboard assembly.
Identifier GUID-F8B0AB18-2F1D-433F-9ACD-3B5A34EADE6A
Status Released
Installing the power-adapter port
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
