Steps

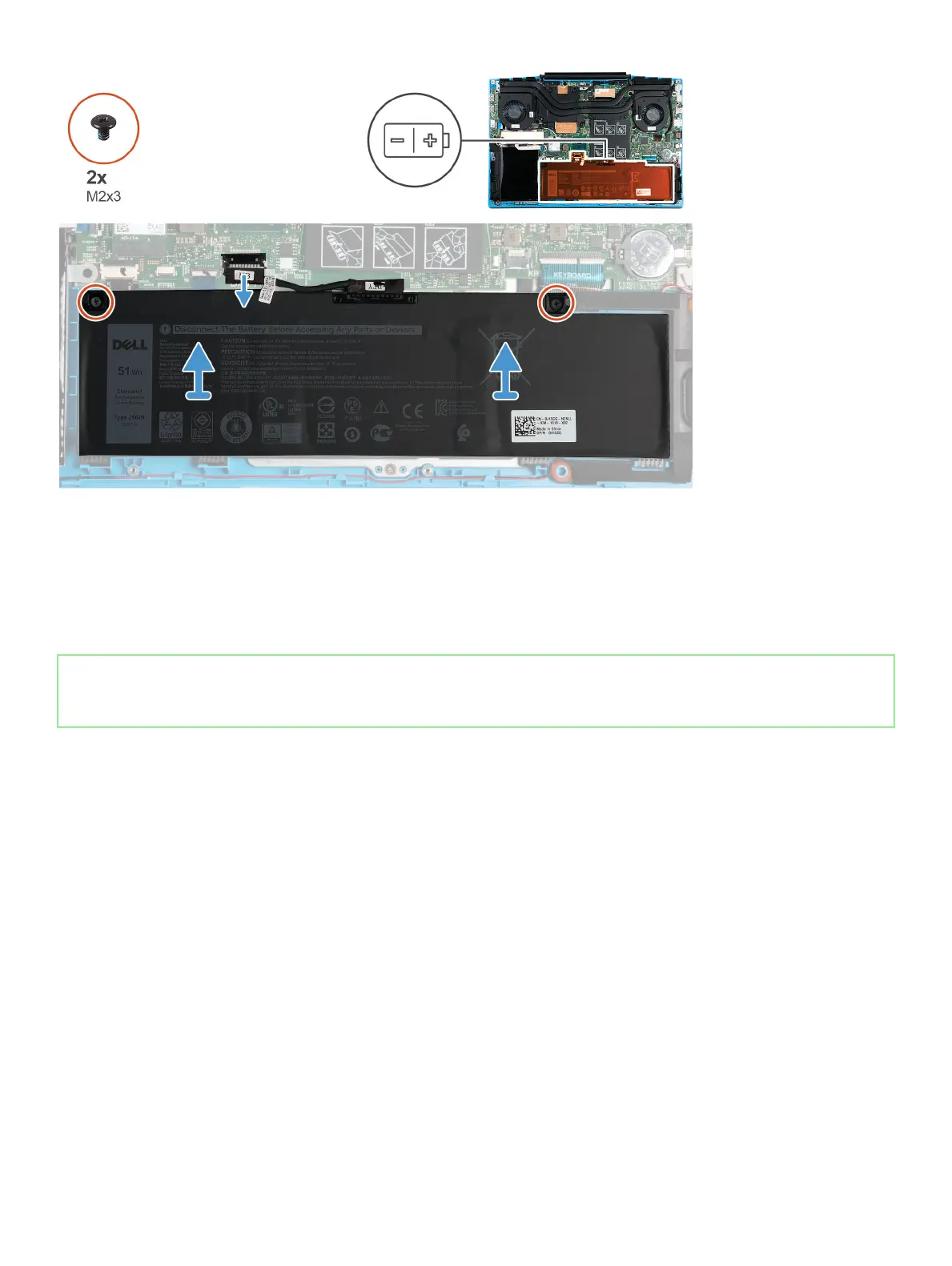

1 Disconnect the battery cable from the system board.
2 Remove the two screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
3 Lift the battery o the palm-rest and keyboard assembly.
Identifier GUID-63292BF2-6AA9-4B2C-9239-649FCF55BFDF
Status Released
Installing the battery
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the battery and provides a visual representation of the installation procedure.
Removing and installing components
15
