3 Remove the battery.
About this task

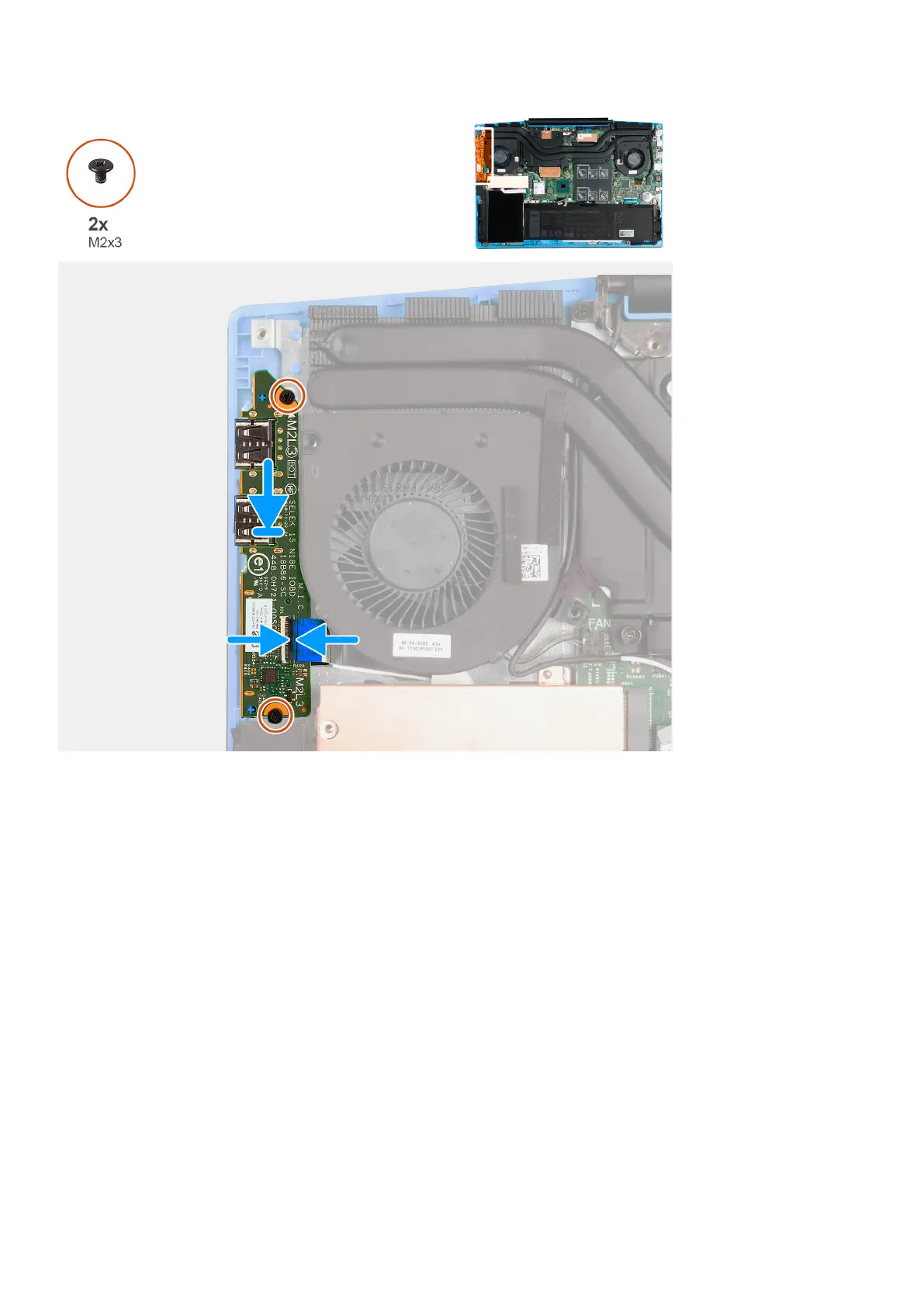

The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
Steps
1 Lift the latch to disconnect the I/O-board cable from the I/O board.
2 Remove the two screws (M2x3) that secure the I/O board to the palm-rest and keyboard assembly.
3 Lift the I/O board o the palm-rest and keyboard assembly.
Identifier GUID-A9CE11EA-716D-4685-BA5C-E0F6BD7B85A1
Status Released
Installing the I/O board
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
Removing and installing components
41
