Steps
1 Align and place the left fan on the palm-rest and keyboard assembly.
2 Route the WLAN cable through the routing guides on the fan.
3 Connect the left-fan cable to the system board.
4 Attach the tape to the left fan to secure it to the system board.
5 Replace the two (M2x3) screws to secure the left fan to the palm-rest and keyboard assembly.
Next step
1 Install the battery.
2 Install the base cover.
3 Follow the procedure in After working inside your computer.
Identifier GUID-08F267F3-A85D-49A6-ABEE-D7F23B995C68
Status Released
Installing the right fan
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

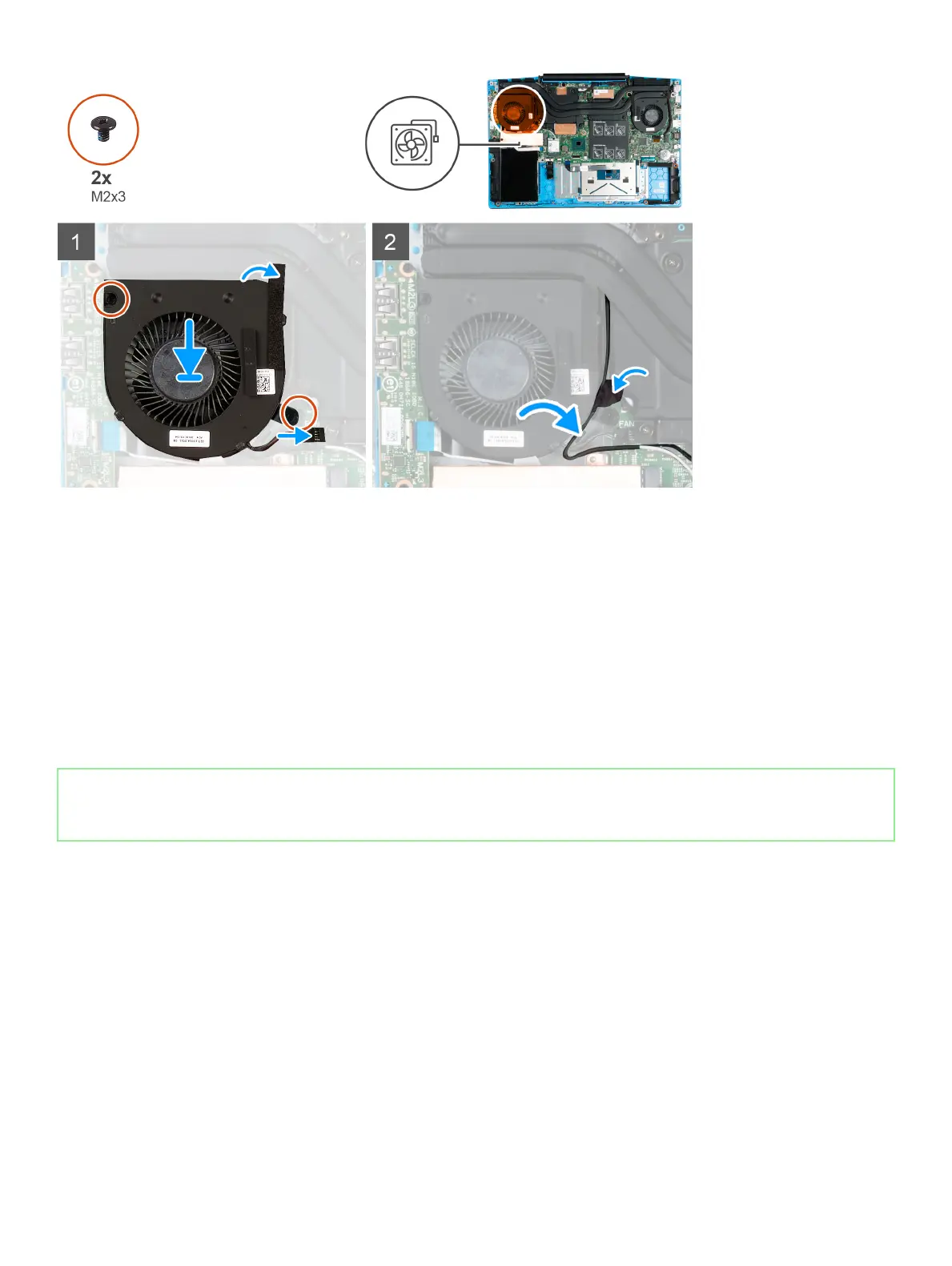

The following image indicates the location of the right fan and provides a visual representation of the installation procedure.
